9.2.3 Application Curves

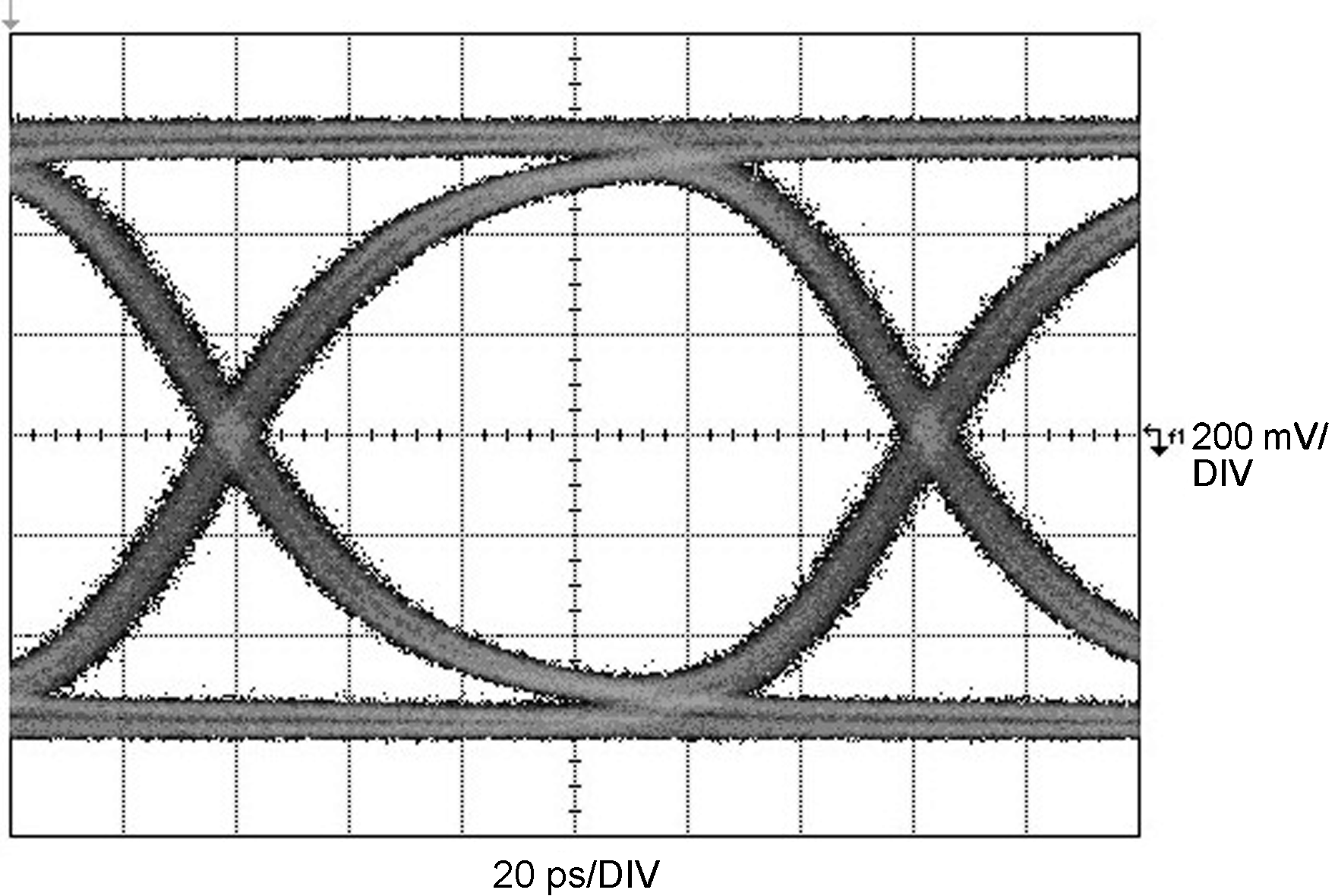

DS80PCI402 Settings: EQ[1:0] = [R, R] or 0x15, Dem[1:0] = [Float, Float]
Figure 9-3 TL = 20-Inch 4–Mil FR4 Trace

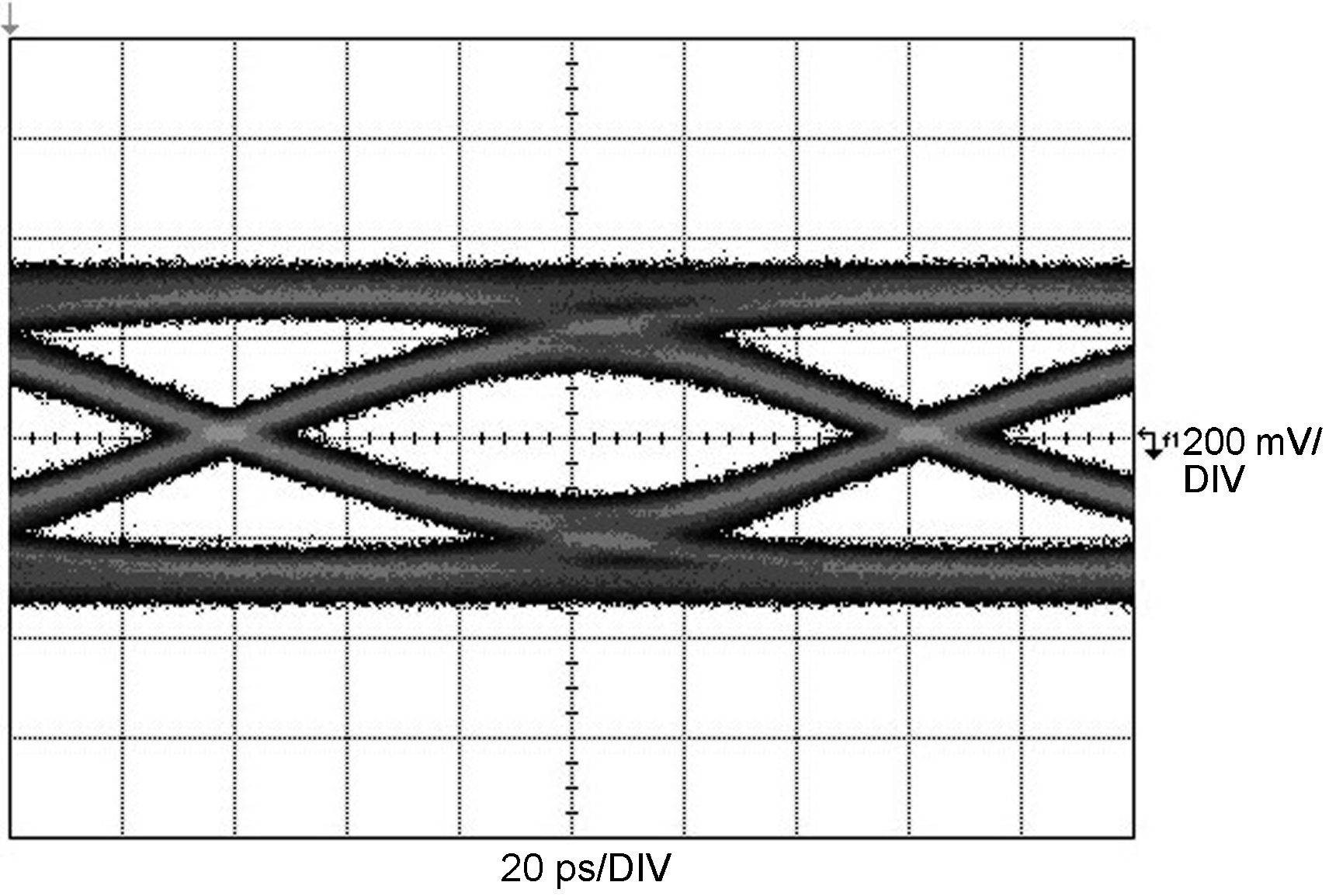

DS80PCI402 Settings: EQ[1:0] = [R, R] or 0x15, DEM[1:0] = [Float, Float]
Figure 9-5 TL1 = 20-Inch 4–Mil FR4 Trace, TL2 = 15-Inch 4–Mil FR4 Trace

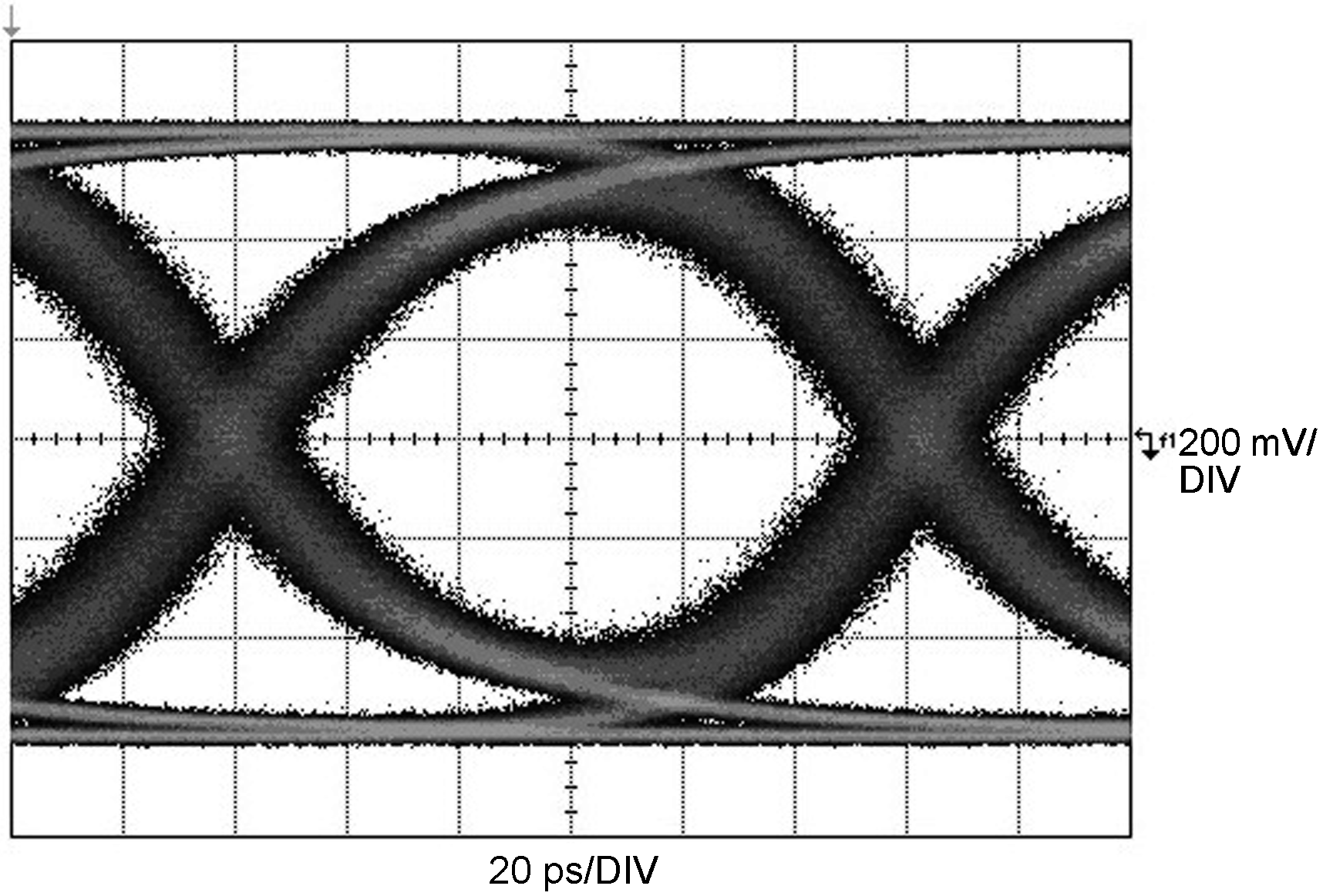

DS80PCI402 Settings: EQ[1:0] = [Float, R] or 0x1F, DEM[1:0] = [Float, Float]
Figure 9-4 TL = 35-Inch 4–Mil FR4 Trace

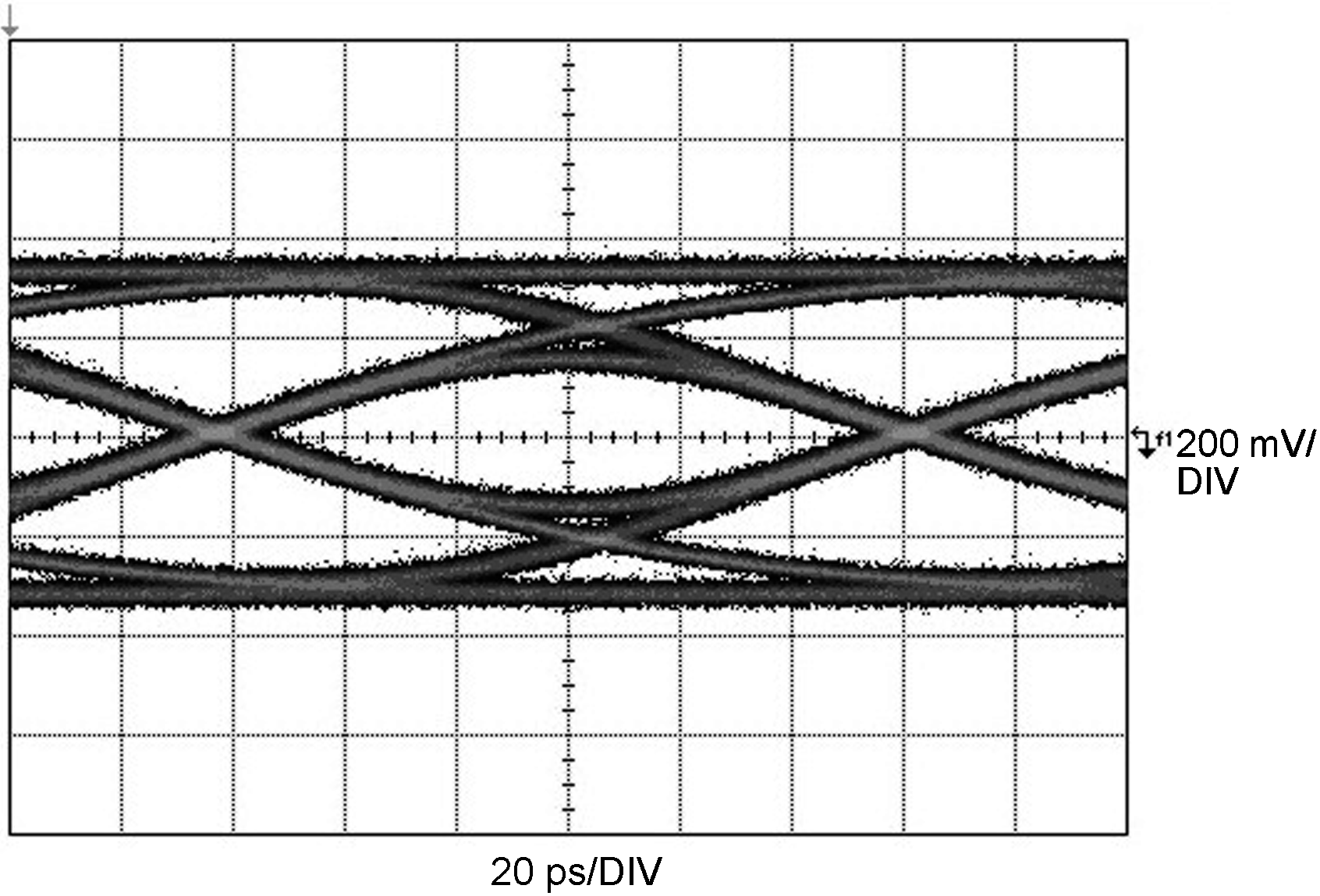

DS80PCI402 Settings: EQ[1:0] = [R, 1] or 0x0F, DEM[1:0] = [Float, Float]
Figure 9-6 TL1 = 30-Inch 4–Mil FR4 Trace, TL2 = 15-Inch 4–Mil FR4 Trace
