The DS320PR410 is a linear redriver that can be used to extend channel reach of a PCIe link. Normally, PCIe-compliant Tx and Rx are equipped with signal-conditioning functions and can handle channel losses of up to 36 dB at 16 GHz. With the DS320PR410, the total channel loss between a PCIe root complex and an end point can be extended up to 58 dB at 16 GHz.

To demonstrate the reach extension capability of the DS320PR410, two comparative setups are constructed. In first setup as shown in Figure 8-3 there is no redriver in the PCIe 5.0 link. Figure 8-4 shows eye diagram at the end of the link using SigTest. In second setup as shown in Figure 8-5, the DS320PR410 is inserted in the middle to extend link reach. Figure 8-6 shows SigTest eye diagram.

Figure 8-3 PCIe 5.0 Link Baseline Setup Without Redriver the Link Elements

Figure 8-5 PCIe 5.0 Link Setup with the DS320PR410 the Link Elements

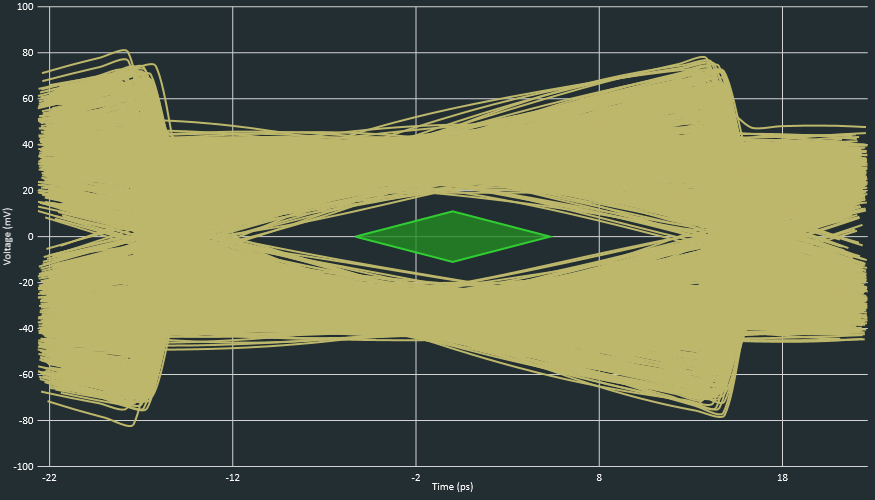

Figure 8-4 PCIe 5.0 link Baseline Setup Without Redriver Eye Diagram Using SigTest

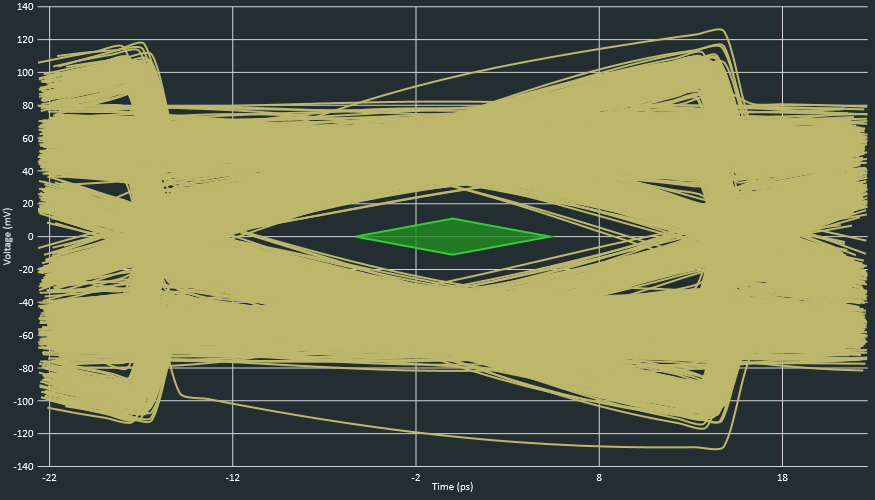

Figure 8-6 PCIe 5.0 Link Setup with the DS320PR410 Eye Diagram Using SigTest

Table 8-1 provides the PCIe 5.0 links without and with the DS320PR410 that shows that redriver is capable of ?22 dB reach extension at PCIe 5.0 speed. Note: actual reach extension depends on various signal integrity factors. It is recommended to run signal integrity simulations with all the components in the link to get more accurate guidance.
