6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Supply Voltage (VDD) | –0.5 | 2.75 | V | |
| 2.5 I/O Voltage (LVCMOS and Analog) | –0.5 | 2.75 | V | |
| 3.3 LVCMOS I/O Voltage (SDA, SDC, INT) | –0.5 | 4.0 | V | |
| Signal Input Voltage (RXPn, RXNn) | –0.5 | 2.75 | V | |
| Signal Output Voltage (TXPn, TXNn) | –0.5 | 2.75 | V | |
| Junction Temperature | 150 | °C | ||
| Storage Temperature, Tstg | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings
| VALUE | UNIT | |||
|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human Body Model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) | ±6000 | V |
| Machine Model (MM), STD - JESD22-A115-A(3) | ±250 | |||
| Charged Device Model (CDM), per JEDEC specification JESD22-C101, all pins(2) | ±1250 | |||
(1) JEDEC document JEP155 states that 6000-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 1250-V CDM allows safe manufacturing with a standard ESD control process.
(3) JEDEC document JEP157 states that 250-V MM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | NOM | MAX | UNIT | |
|---|---|---|---|---|
| Supply voltage (VDD to GND) | 2.375 | 2.5 | 2.625 | V |
| Ambient temperature | –40 | 25 | 85 | °C |
6.4 Thermal Information
See (2)| THERMAL METRIC(1) | DS100RT410 | UNIT | |
|---|---|---|---|
| RHS (WQFN) | |||
| 48 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 29.2 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 10.2 | °C/W |
| RθJB | Junction-to-board thermal resistance | 6.3 | °C/W |
| ψJT | Junction-to-top characterization parameter | 0.1 | °C/W |
| ψJB | Junction-to-board characterization parameter | 6.3 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | 2.0 | °C/W |
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
(2) No airflow, 4-layer JEDEC, 9 thermal vias
6.5 Electrical Characteristics
over recommended operating supply and temperature ranges with default register settings unless otherwise specified. (1)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| POWER | ||||||
| PD | Power supply consumption | Average power consumption(2) | 660 | mW | ||
| Max transient power supply current (3) | 500 | 610 | mA | |||
| NTPS | Supply noise tolerance (4) | 50 Hz to 100 Hz | 100 | mVP-P | ||
| 100 Hz to 10 MHz | 40 | mVP-P | ||||
| 10 MHz to 5.0 GHz | 10 | mVP-P | ||||
| 2.5-V LVCMOS DC SPECIFICATIONS | ||||||
| VIH | High level input voltage | 1.75 | VDD | V | ||
| High level (ADDR[3:0] pins) | 2.28 | VDD | V | |||
| VIL | Low level input voltage | GND | 0.7 | V | ||
| Low level input voltage (ADDR[3:0] pins) | GND | 0.335 | V | |||
| VOH | High level output voltage | IOH = –3 mA | 2.0 | V | ||
| VOL | Low level output voltage | IOL = 3 mA | 0.4 | V | ||
| IIN | Input leakage current | VIN = VDD | 10 | μA | ||
| VIN = GND | –10 | μA | ||||
| IIH | Input high current (EN_SMB pin) | VIN = VDD | 55 | μA | ||
| IIL | Input low current (EN_SMB pin) | VIN = GND | –110 | μA | ||
| 3.3-V LVCMOS DC SPECIFICATIONS (SDA, SDC, INT) | ||||||
| VIH | High level input voltage | VDD = 2.5 V | 1.75 | 3.6 | V | |
| VIL | Low level input voltage | VDD = 2.5 V | GND | 0.7 | V | |
| VOL | Low level output voltage | IPULLUP = 3 mA | 0.4 | V | ||
| IIH | Input high current | VIN = 3.6 V, VDD = 2.5 V | 20 | 40 | μA | |
| IIL | Input low current | VIN = GND, VDD = 2.5 V | –10 | 10 | μA | |
| fSDC | SMBus clock rate | Slave Mode | 10 | 400 | kHz | |
| Master Mode(5) | 400 | kHz | ||||
| DATA BIT RATES | ||||||
| RB | Bit rate range | 10.3125-Gbps Ethernet | 10.1 | 10.6 | Gbps | |
| 1.25-Gbps Ethernet | 1.2 | 1.3 | Gbps | |||
| SIGNAL DETECT | ||||||
| SDH | Signal detect ON threshold level | Default differential input signal level to assert signal detect, 10.3125 Gbps, PRBS-31 |
70 | mVp-p | ||
| SDL | Signal detect OFF threshold level | Default differential input signal level to de-assert signal detect, 10.3125 Gbps, PRBS-31 |
10 | mVp-p | ||
| RECEIVER INPUTS (RXPn, RXNn) | ||||||
| VTX2, min | Minimum source transmit launch signal level (IN, diff) | See (5) | 600 | mVP-P | ||
| VTX2, max | 1000 | mVP-P | ||||
| VTX1, max | See (6) | 1200 | mVP-P | |||
| VTX0, max | See (7) | 1600 | mVP-P | |||
| LRI | Maximum differential input return loss - |SDD11| | 100 MHz to 6 GHz(8) | –15 | dB | ||
| ZD | Differential input impedance | 100 MHz to 6 GHz | 100 | Ω | ||
| ZS | Single-ended input impedance | 100 MHz to 6 GHz | 50 | Ω | ||
| DRIVER OUTPUTS (TXPn, TXNn) | ||||||
| VOD0 | Differential output voltage | Differential measurement with OUT+ and OUT- terminated by 50 Ω to GND, AC-Coupled, SMBus register VOD control (Register 0x2d bits 2:0) set to 0, minimum VOD De-emphasis control set to minimum (0 dB) |
400 | 675 | mVP-P | |
| VOD7 | Differential output voltage | Differential measurement with OUT+ and OUT- terminated by 50 Ω to GND, AC-Coupled SMBus register VOD control (Register 0x2d bits 2:0) set to 7, maximum VOD De-emphasis control set to minimum (0 dB) |
1000 | mVP-P | ||
| VOD_DE | De-emphasis level (10) | Differential measurement with OUT+ and OUT- terminated by 50 Ω to GND, AC-Coupled Set by SMBus register control to maximum de-emphasis setting Relative to the nominal 0-dB de-emphasis level set at the minimum de-emphasis setting |
–12 | dB | ||
| tR, tF | Transition time (rise and fall times)(10) (11) | Transition time control = Full slew rate | 39 | ps | ||
| Transition time control = Limited slew rate | 50 | ps | ||||
| LRO | Maximum differential output return loss - |SDD22| | 100 MHz to 6 GHz (8) | –15 | dB | ||
| tDP | Propagation delay | Retimed data(9) | 300 | ps | ||
| TDE | De-emphasis pulse duration(12) | Measured at VOD = 1000 mVP-P, de-emphasis setting = –12 dB | 75 | ps | ||
| TJ | Output total jitter | Measured at BER = 10–12(13) | 10 | ps | ||
| TSKEW | Intra pair skew | Difference in 50% crossing between TXPn and TXNn for any output | 3 | ps | ||
| Channel-to-channel skew | 7 | ps | ||||
| CLOCK AND DATA RECOVERY | ||||||
| BWPLL | PLL bandwidth, –3 dB | Measured at 10.3125 Gbps | 5 | MHz | ||
| JTOL | Input sinusoidal jitter tolerance 10-kHz to 250-MHz sinusoidal jitter frequency |
Measured at BER = 10–15 | 0.6 | UI | ||
| JTRANS | Jitter transfer sinusoidal jitter at 10-MHz jitter frequency |
Measured at BER = 10–15 | –6 | dB | ||
| TLOCK | CDR lock time | Measured at 10.3125 Gbps | 15 | ms | ||
| RECOMMENDED REFERENCE CLOCK SPECS | ||||||
| REFf | Input reference clock frequency | 24.9975 | 25 | 25.0025 | MHz | |
| REFCLK_INPW | Minimum REFCLK_IN Pulse Width | At REFCLK_IN pin | 4 | ns | ||
| REFCLK_ OUTDCD |
REFCLK_OUT duty cycle distortion | CL = 5 pF | 0.55 | ns | ||
| REFVIH | Reference clock input min high threshold | 1.75 | V | |||
| REFVIL | Reference clock input max low threshold | 0.7 | V | |||
(1) Typical values represent most likely parametric norms at VDD = 2.5 V, TA = 25°C, and at the Recommended Operation Conditions at the time of product characterization.
(2) VDD = 2.5 V, TA = 25°C. All four channels active and locked.
(3) Maximum power supply current during lock acquisition. All four channels active, all four channels unlocked, all registers at default settings.
(4) Allowed supply noise (mVP-P sine wave) under typical conditions.
(5) EEPROM device used for Master mode programming must support fSDC greater than 400 kHz.
(6) Differential signal amplitude at the transmitter output providing < 1x10–12 bit error rate. Measured at 10.3125 Gbps with a PRBS-31 data pattern. Input transmission channel is 40-inch long FR-4 stripline, 4-mil trace width.
(7) Differential signal amplitude at the transmitter output providing < 1x10–12 bit error rate. Measured at 10.3125 Gbps with a PRBS-31 data pattern. No input transmission channel.
(8) Measured with 10-MHz clock pattern output.
(9) Typical at 10.3125-Gbps bit rate.
(10) Measured with clock-like {11111 00000} pattern.
(11) Slew rate is controlled by SMBus register settings.
(12) De-emphasis pulse width varies with VOD and de-emphasis settings.
(13) Typical with no output de-emphasis, minimum output transmission channel.

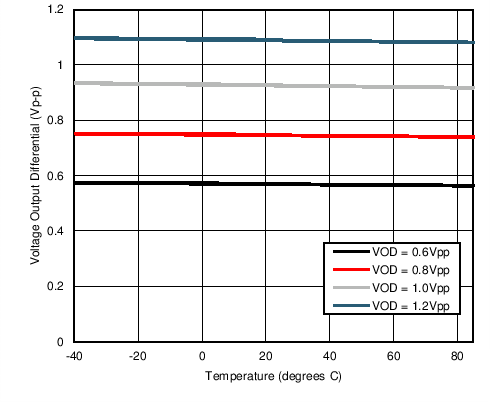

6.6 Typical Characteristics
