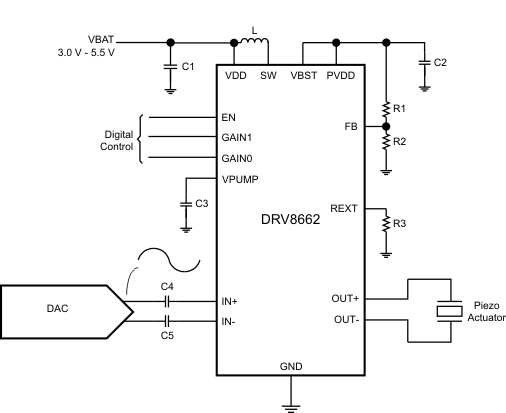

8.2.1 DRV8662 System Diagram with DAC Input
In the following DRV8662 diagram, the DRV8662 is configured with a differential DAC input and a generic Piezo actuator. This is useful for systems that have an available DAC or analog signal generator.
Figure 8-1 DRV8662 System Diagram with DAC Input
