ZHCSDG6C March 2015 – January 2023 DRV2700

PRODUCTION DATA

封裝選項

請參考 PDF 數據表獲取器件具體的封裝圖。

機械數據 (封裝 | 引腳)

RGP|20

散熱焊盤機械數據 (封裝 | 引腳)

RGP|20
- QFND079Y

訂購信息

6.7 Typical characteristics

V_DD = 3.6 V, R_(REXT) = 7.5 kΩ, L = 4.7 μH, differential input, 100-nF DC blocking capacitors on IN±

V_DD = 3.6 V	C_(LOAD) = Open	V_PVDD = 30 V
G = 28.8 dB

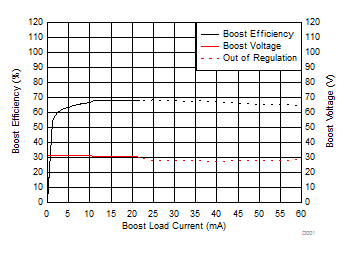

Figure 6-1 Load Current vs Boost Efficiency (%) and Voltage (V) at V_PVDD = 30 V

V_DD = 3.6 V	C_(LOAD) = Open	V_PVDD = 80 V
G = 38.4 dB

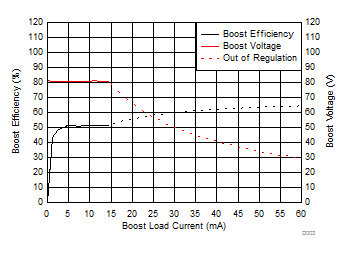

Figure 6-3 Load Current vs Boost Efficiency (%) and Voltage (V) at V_PVDD = 80 V

G = 40.7 dB	C_(LOAD) = Open	V_PVDD = 105 V

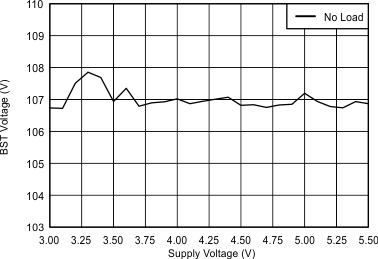

Figure 6-5 Line Regulation at PVDD = 105 V

G = 40.7 dB	C_(LOAD) = Open	V_PVDD = 105 V

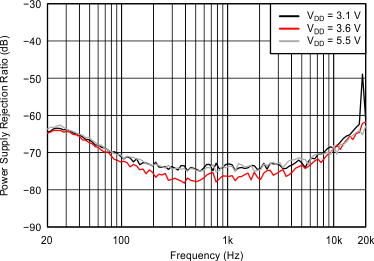

Figure 6-7 AC PSRR at V_PVDD = 105 V

V_DD = 3.6 V	G = 28.8 dB	V_PVDD = 30 V

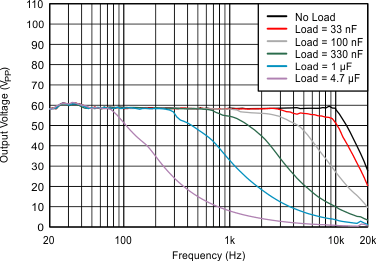

Figure 6-9 Gain Bandwidth at V_PVDD = 30 V

V_DD = 3.6 V	G = 38.4 dB	V_PVDD = 80 V

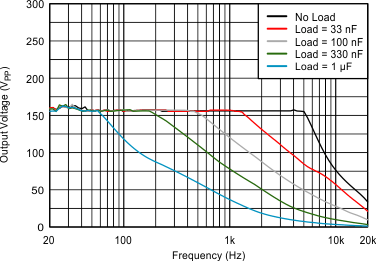

Figure 6-11 Gain Bandwidth at V_PVDD = 80 V

V_DD = 3.6 V	G = 40.7 dB	C_(LOAD) = Open

Figure 6-13 Output Linearity

V_DD = 3.6 V	C_(LOAD) = Open	V_PVDD = 105 V
G = 40.7 dB

Figure 6-15 Output Slew Rate

? = 200 Hz	C_(LOAD) = 47 nF	V_PVDD = 105 V
G = 40 dB

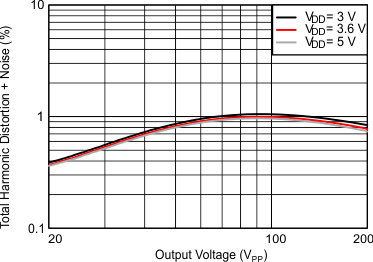

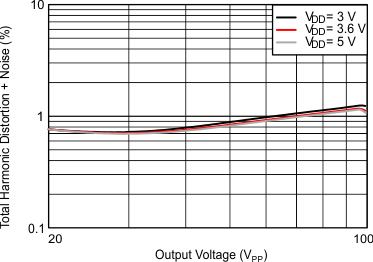

Figure 6-17 Total Harmonic Distortion + Noise vs Output Voltage

? = 200 Hz	C_(LOAD) = 680 nF	V_PVDD = 30 V
G = 28 dB

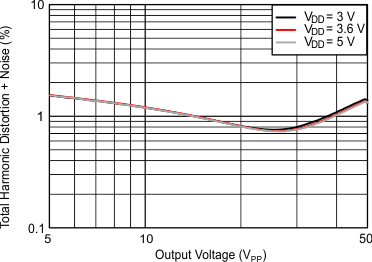

Figure 6-19 Total Harmonic Distortion + Noise vs Output Voltage

	V_DD = 3.6 V	C_(LOAD) = Open	V_PVDD = 105 V
	G = 40.7 dB

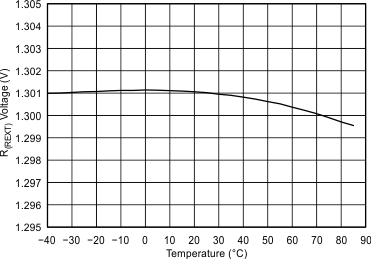

Figure 6-21 R_(REXT) Voltage vs Temperature

V_DD = 3.6 V	C_(LOAD) = Open	V_PVDD = 55 V
G = 34.8 dB

Figure 6-2 Load Current vs Boost Efficiency (%) and Voltage (V) at V_PVDD = 55 V

V_DD = 3.6 V	C_(LOAD) = Open	V_PVDD = 105 V
G = 40.7 dB

Figure 6-4 Load Current vs Boost Efficiency (%) and Voltage (V) at V_PVDD = 105 V

V_DD = 3.6 V	C_(LOAD) = Open	V_PVDD = 105 V
G = 40.7 dB

Figure 6-6 Boost Voltage Startup

G = 40.7 dB	C_(LOAD) = Open	V_PVDD = 105 V

Figure 6-8 AC CMRR at V_PVDD = 105 V

V_DD = 3.6 V	G = 34.8 dB	V_PVDD = 55 V

Figure 6-10 Gain Bandwidth at V_PVDD = 55 V

V_DD = 3.6 V	G = 40.7 dB	V_PVDD = 105 V

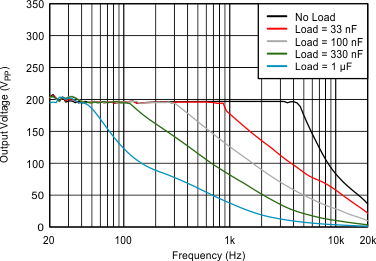

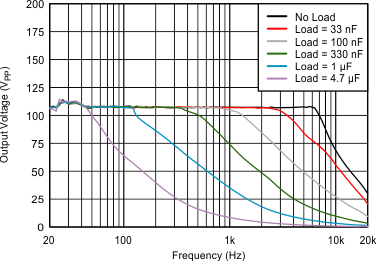

Figure 6-12 Gain Bandwidth at V_PVDD = 105 V

V_DD = 3.6 V	C_(LOAD) = Open
G = 28.8 dB at V_PVDD = 30 V	G = 34.8 dB at V_PVDD = 55 V
G = 38.4 dB at V_PVDD = 80 V	G = 40.7 dB at V_PVDD = 105 V

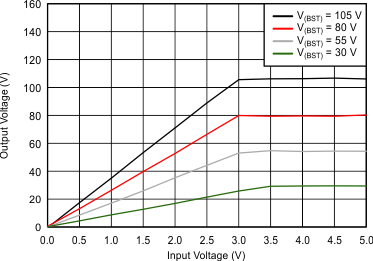

Figure 6-14 Output Linearity with Different Gains

? = 200 Hz	C_(LOAD) = 47 nF	V_PVDD = 105 V
G = 40 dB

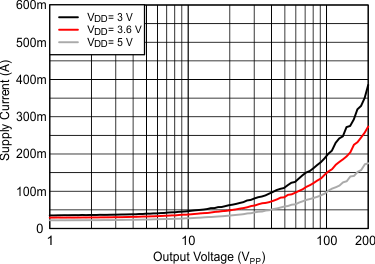

Figure 6-16 Supply Current vs Output Voltage

? = 200 Hz	C_(LOAD) = 330 nF	V_PVDD = 55 V
G = 34 dB

Figure 6-18 Total Harmonic Distortion + Noise vs Output Voltage

Figure 6-20 Inductor Current vs R_(REXT)
