6.7 Switching Characteristics
over operating free-air temperature range (unless otherwise noted)
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| Tstart | Start-up time | Time from I2C write until boost and amplifier are fully enabled | 2 | ms | ||

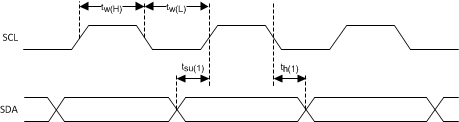

Figure 6-1 SCL and SDA Timing

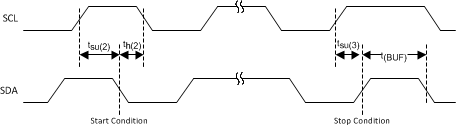

Figure 6-2 Timing for Start and Stop Conditions
