8 Parameter Measurement Information
8.1 Test Configurations
This section describes the function of each block for the CDCLVP1212. Figure 6 through Figure 11 illustrate how the device should be set up for a variety of test configurations.

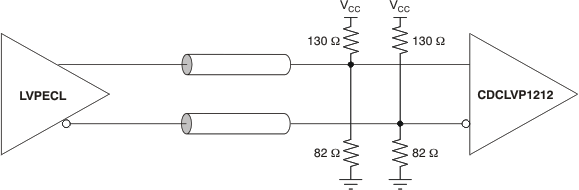

Figure 5. DC-Coupled LVPECL Input During Device Test

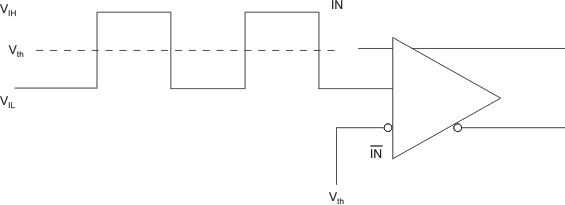

Figure 6. DC-Coupled LVCMOS Input During Device Test

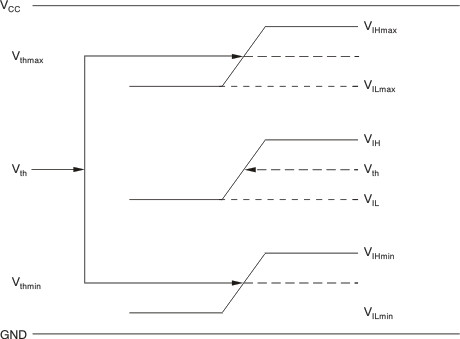

Figure 7. Voltage Variation Over LVCMOS Vth Levels

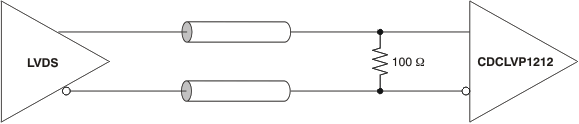

Figure 8. DC-Coupled LVDS Input During Device Test
Figure 9. AC-Coupled Differential Input To Device

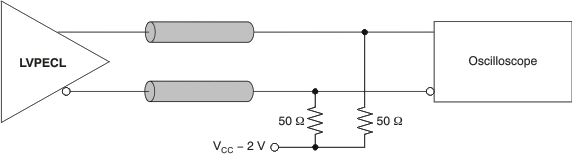

Figure 10. LVPECL Output DC Configuration During Device Test

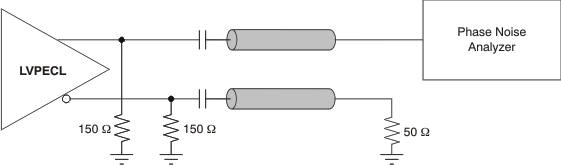

Figure 11. LVPECL Output AC Configuration During Device Test
