7 Parameter Measurement Information

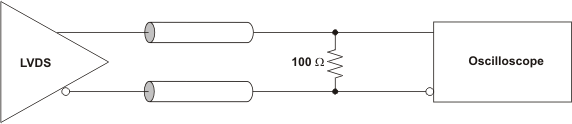

Figure 3. LVDS Output DC Configuration During Device Test

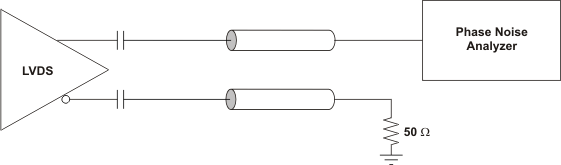

Figure 4. LVDS Output AC Configuration During Device Test

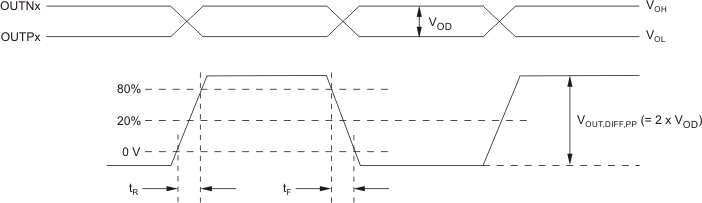

Figure 5. Output Voltage and Rise/Fall Time

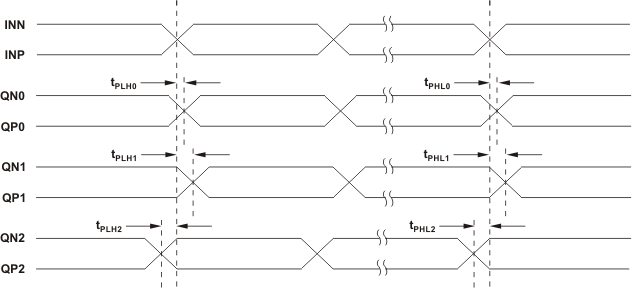

1. Output skew is calculated as the greater of the following: As the difference between the fastest and the slowest tPLHn or the difference between the fastest and the slowest tPHLn (n = 0, 1, 2).
2. Part-to-part skew is calculated as the greater of the following: As the difference between the fastest and the slowest tPLHn or the difference between the fastest and the slowest tPHLn across multiple devices (n = 0, 1, 2).
Figure 6. Output and Part-to-Part Skew

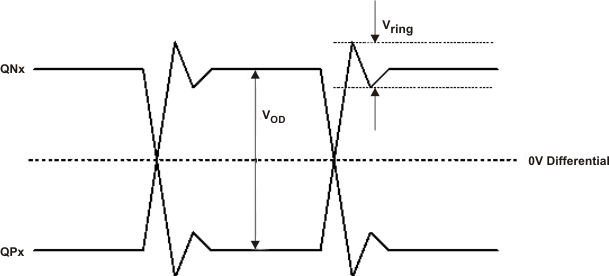

Figure 7. Output Overshoot and Undershoot

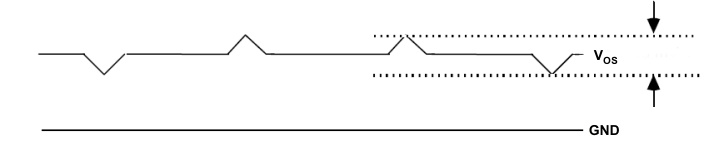

Figure 8. Output AC Common Mode
