7.5 Programming
Table 7-8 Command Code Definition
| BIT | DESCRIPTION |
|---|---|
| 7 | 0 = Block Read or Block Write operation 1 = Byte Read or Byte Write operation |
| (6:0) | Byte offset for Byte Read, Block Read, Byte Write, and Block Write operations |

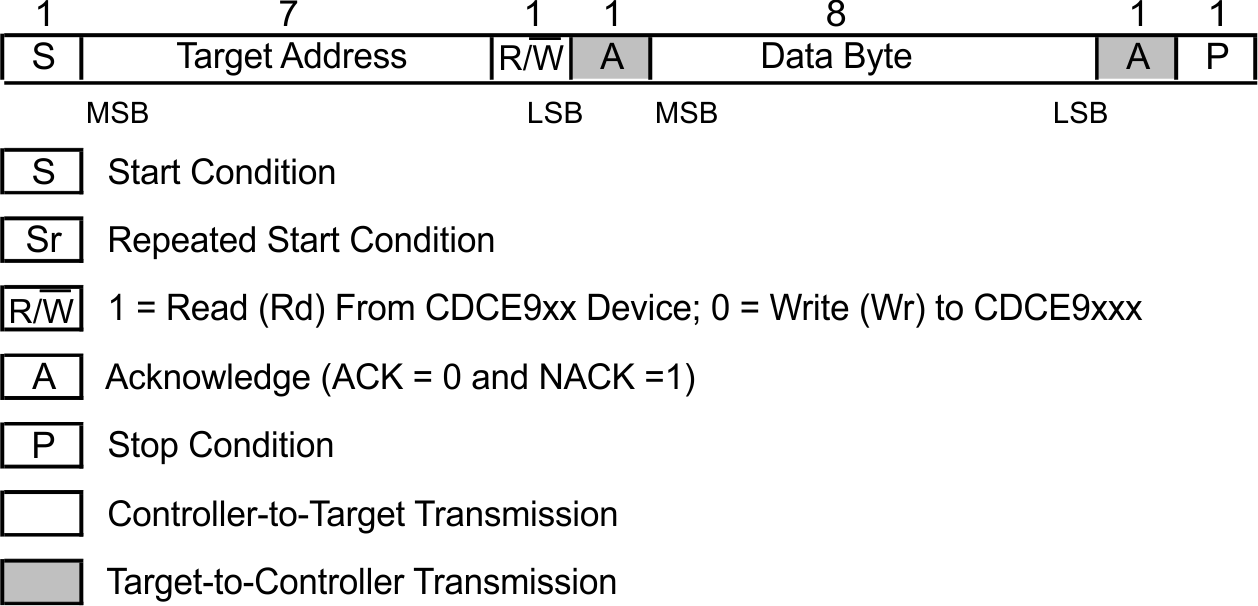

Figure 7-3 Generic Programming Sequence
Figure 7-4 Byte Write Protocol
Figure 7-5 Byte Read Protocol
A. Data byte
0 bits [7:0] is reserved for Revision Code and
Vendor Identification. Also, Data byte 0 is used
for internal test purpose and must not be
overwritten.

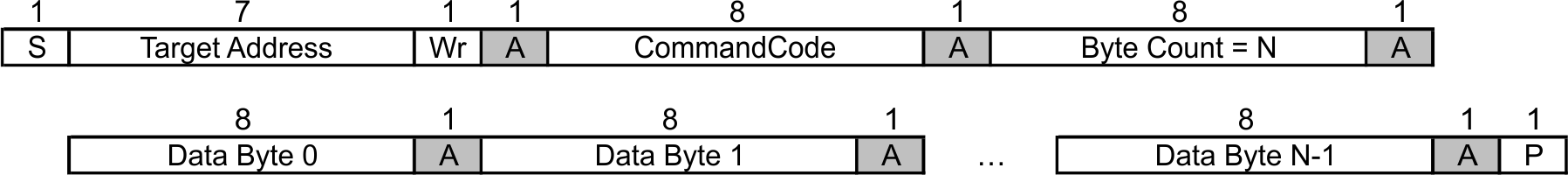

Figure 7-6 Block Write Protocol
Figure 7-7 Block Read Protocol

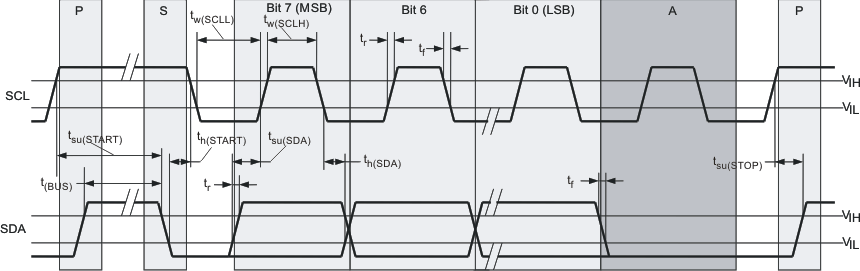

Figure 7-8 Timing Diagram for SDA/SCL Serial Control Interface
