6 Parameter Measurement Information
A. CL includes probe and test-fixture capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is
low except when disabled by the output control. Waveform 2 is for an output with
internal conditions such that the output is high except when disabled by the
output control.
C. Phase relationships between waveforms were chosen arbitrarily. All input pulses
are supplied by generators having the following characteristics: PRR ≤ 1 MHz,
ZO = 50 Ω, tr = 6 ns, tf = 6 ns.
D. For
clock inputs, fmax is measured with the input duty cycle at
50%.
E. The
outputs are measured one at a time with one input transition per
measurement.
F. tPLZ and tPHZ are the same as tdis.
G. tPZL and tPZH are the same as ten.
H. tPLH and tPHL are the same as tpd.

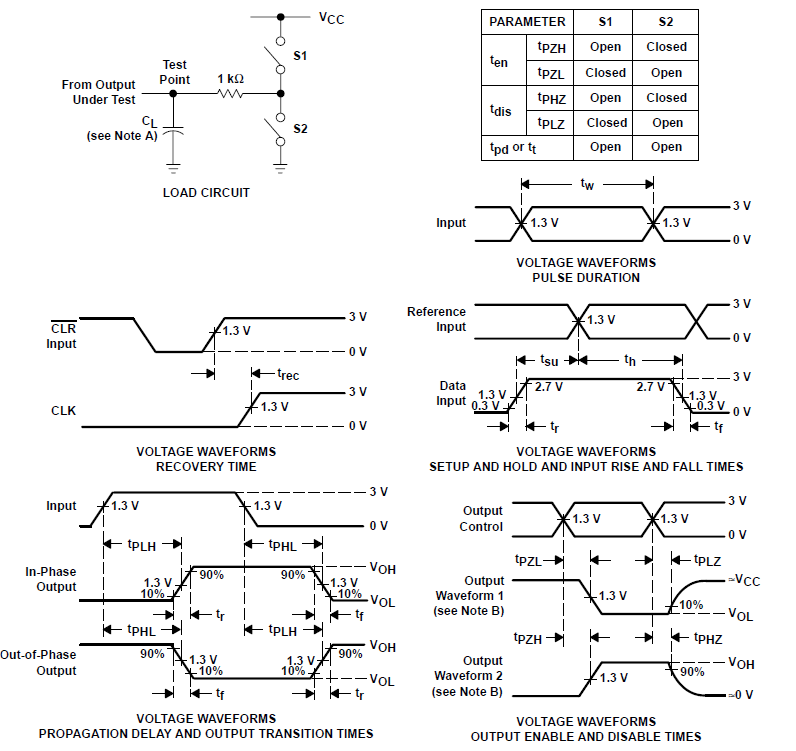

Figure 6-1 Load Circuit and Voltage
Waveforms
