8 Detailed Description
8.1 Overview
The CD74HC4051-EP is a digitally controlled analog switch that uses silicon gate CMOS technology to achieve operating speeds similar to LSTTL, with the low-power consumption of standard CMOS integrated circuits.
8.2 Functional Block Diagram
8.3 Feature Description
This analog multiplexer and demultiplexer controls analog voltages that may vary across the voltage supply range (that is, VCC to VEE). These bidirectional switches allow the use of any analog input as an output and vice versa. The switches have low ON-resistance and low OFF leakages. In addition, the device has an enable control (E) that, when high, disables all switches to their OFF state.
8.4 Device Functional Modes
Table 1. Function Table
| INPUTS | ON CHANNEL (S) |
|||
|---|---|---|---|---|
| E | S2 | S1 | S0 | |
| L L L L L L L L H |
L L L L H H H H X |
L L H H L L H H X |
L H L H L H L H X |
A0 A1 A2 A3 A4 A5 A6 A7 None |

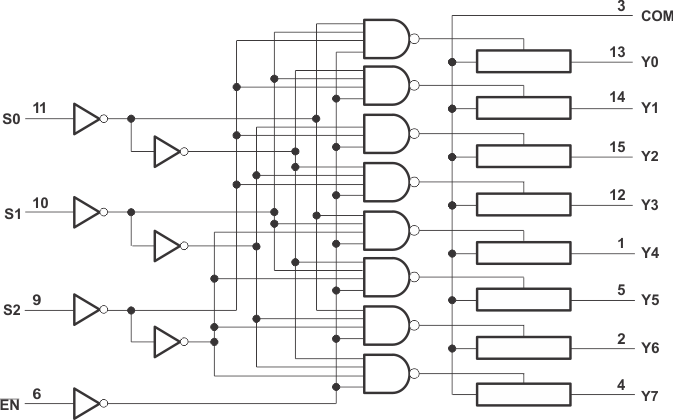

Figure 10. Logic Diagram (Positive Logic)
