ZHCSPU7G November 1998 – October 2022 CD54HC240 , CD54HC244 , CD54HCT240 , CD54HCT241 , CD54HCT244 , CD74HC240 , CD74HC241 , CD74HC244 , CD74HCT240 , CD74HCT241 , CD74HCT244
PRODUCTION DATA
- 1 特性
- 2 說明
- 3 Revision History
- 4 Pin Configuration and Functions
-
5 Specifications
- 5.1 Absolute Maximum Ratings (1)
- 5.2 Recommended Operating Conditions
- 5.3 Thermal Information
- 5.4 Electrical Characteristics '240
- 5.5 Electrical Characteristics '241
- 5.6 Electrical Characteristics '244
- 5.7 Switching Characteristics '240
- 5.8 Switching Characteristics '241
- 5.9 Switching Characteristics '244
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Power Supply Recommendations
- 9 Layout
- 10Device and Documentation Support
- 11Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- N|20
- DW|20
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息

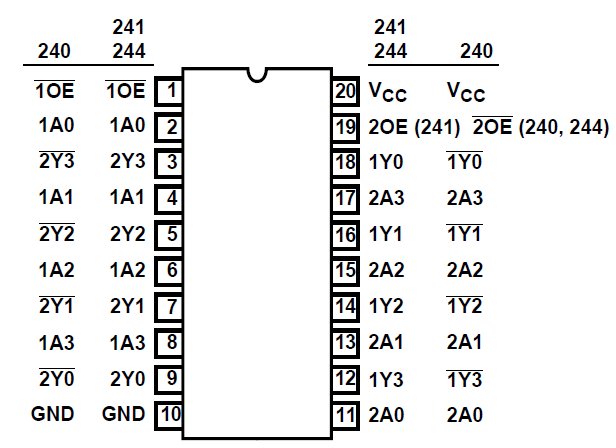

4 Pin Configuration and Functions
J, N, DW, or PW package20-Pin CDIP, PDIP, SOIC, or TSSOP
Top View
