5 Parameter Measurement Information

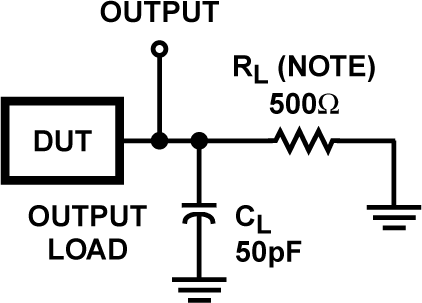

Load Circuit and Voltage
Waveforms

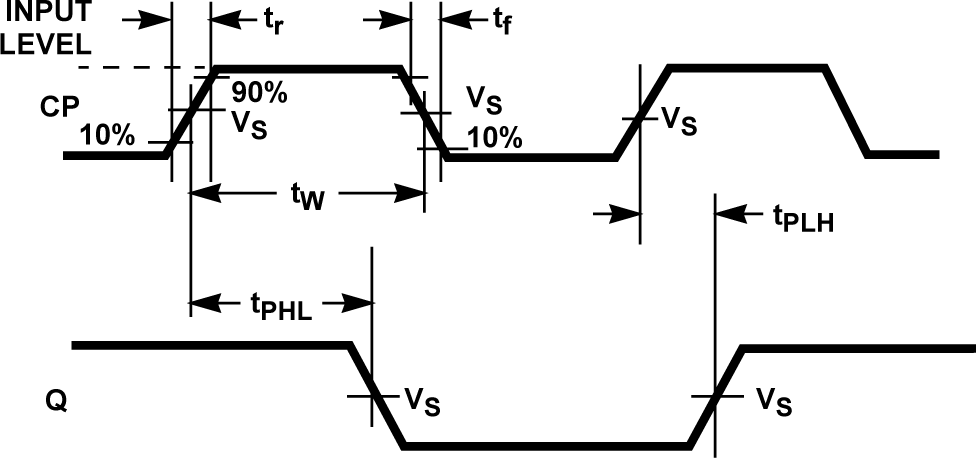

Propagation Delay Times and Clock Pulse Width |

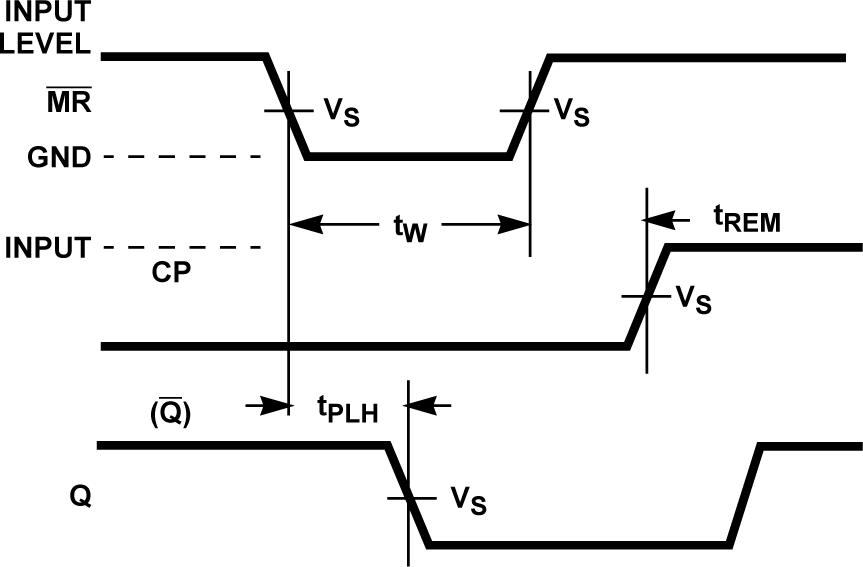

Prerequisite and Propagation Delay Times for Master
Reset |
Prerequisite for Clock |
A. For AC Series Only:
When VCC = 1.5V, RL = 1kΩ.
Propagation Delay Times |
| AC | ACT | |
|---|---|---|
| Input Level | VCC | 3V |
| Input Switching Voltage, VS | 0.5 VCC | 1.5V |
| Output Switching Voltage, VS | 0.5 VCC | 0.5 VCC |
