4.6 Timing Diagrams

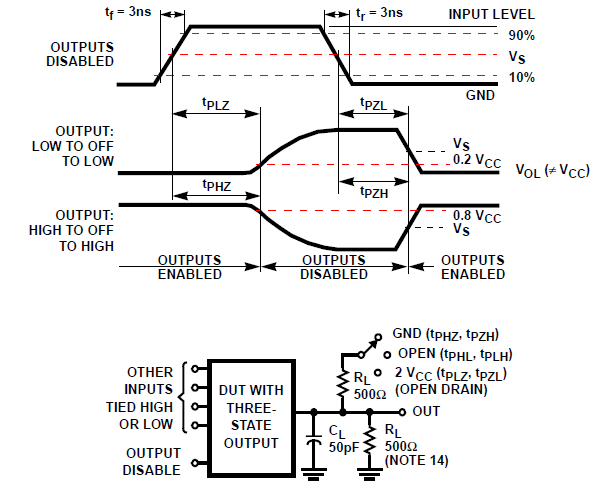

Figure 4-1 THREE-STATE PROPAGATION DELAY TIMES AND TEST CIRCUIT

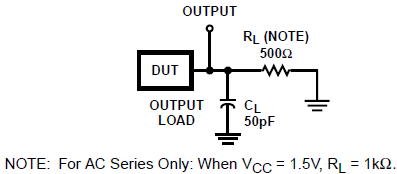

Figure 4-3 PROPAGATION DELAY TIMES
Table 4-1

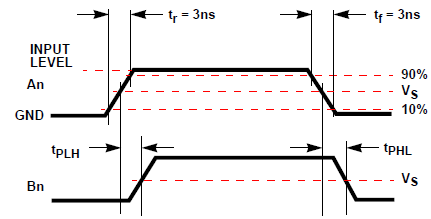

Figure 4-4 PROPAGATION DELAY TIMES| AC | ACT | |
|---|---|---|
| Input Level | VCC | 3V |
| Input Switching Voltage, VS | 0.5 VCC | 1.5V |
| Output Switching Voltage, VS | 0.5 VCC | 0.5 VCC |
