6 Parameter Measurement Information
tPD is the maximum between tPLH and tPHL
tt is the maximum between tTLH and tTHL
NOTE: Outputs should be switching from 10% VCC to 90% VCC in accordance with device truth table. For fMAX, input duty cycle = 50%

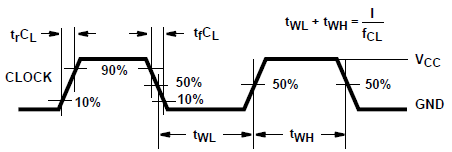

Figure 6-1 HC clock pulse rise and fall times and pulse width

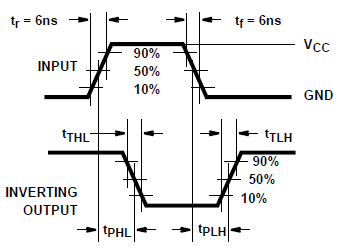

Figure 6-3 HC and HCU transition
times and propagation delay times, combination logic

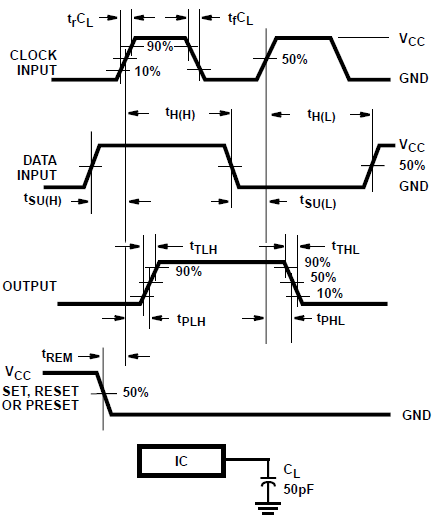

Figure 6-5 HC setup times, hold
times, removal time, and propagation delay times for edge triggered
sequential logic circuits

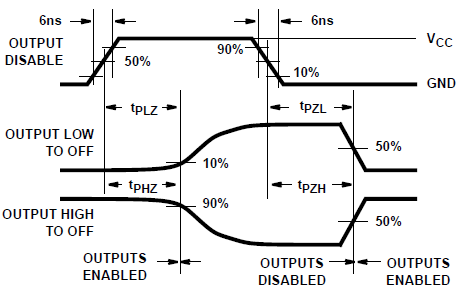

Figure 6-7 HC three-state propagation
delay waveform
NOTE: Outputs should be switching from 10% VCC to 90% VCC in accordance with device truth table. FOr fMAX, input duty cycle = 50%
Figure 6-2 HCT clock pulse rise and fall times and pulse width

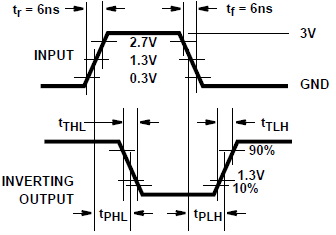

Figure 6-4 HCT transition times and
propagation delay times, combination logic

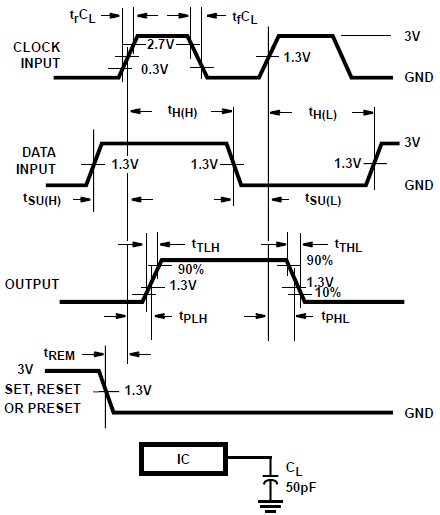

Figure 6-6 HCT setup times, hold
times, removal time, and propagation delay times for edge triggered
sequential logic circuits
Figure 6-8 HCT three-state
propagation delay waveform
NOTE: Opend drain waveforms tPLZ and tPZL are the same as those for three-state shown on the left. The test circuit is Output RL = 1kΩ to VCC, CL = 50pF

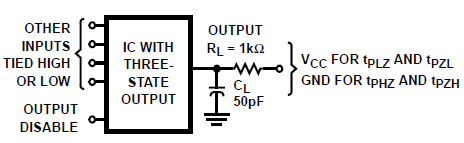

Figure 6-9 HC and HCT three-state propagation delay test circuit
