4.7 Typical Characteristics
Figure 4-1 System Settling Time vs
Signal Rise/Fall Time
Figure 4-3 System Settling Time vs
Signal Voltage

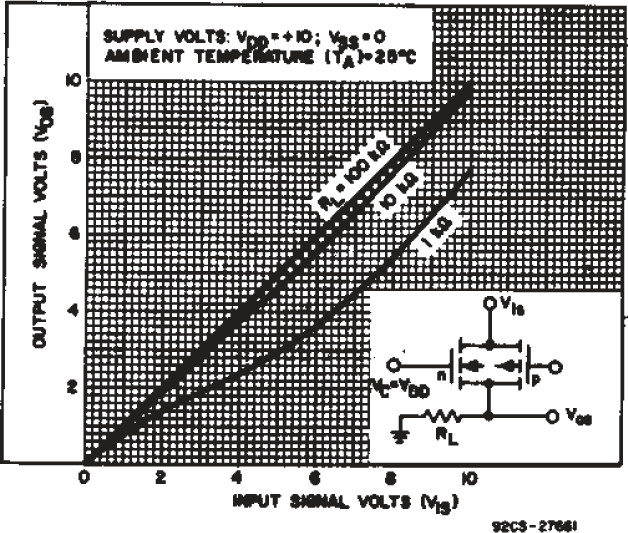

Figure 4-5 On-state Characteristics
for 1 of 4 Switches with vDD =+10V, vSS = 0V.

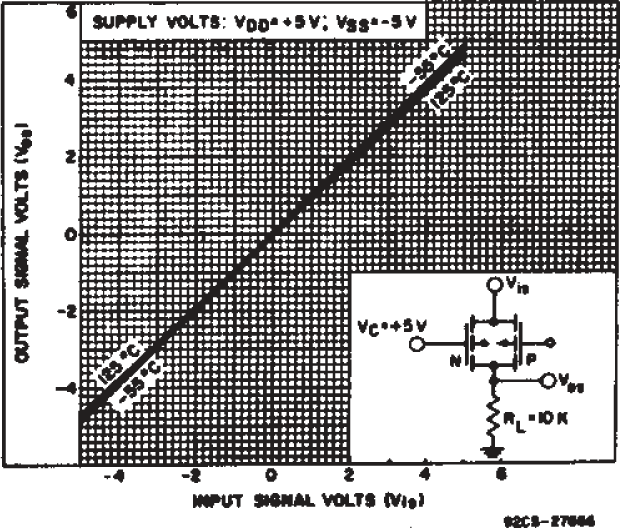

Figure 4-7 On-state Characteristics
as a Function of Temp. for 1 of 4 Switches with vDD = +5V,
vSS = ? 5V.
Figure 4-2 System Settling Time vs
Signal Voltage

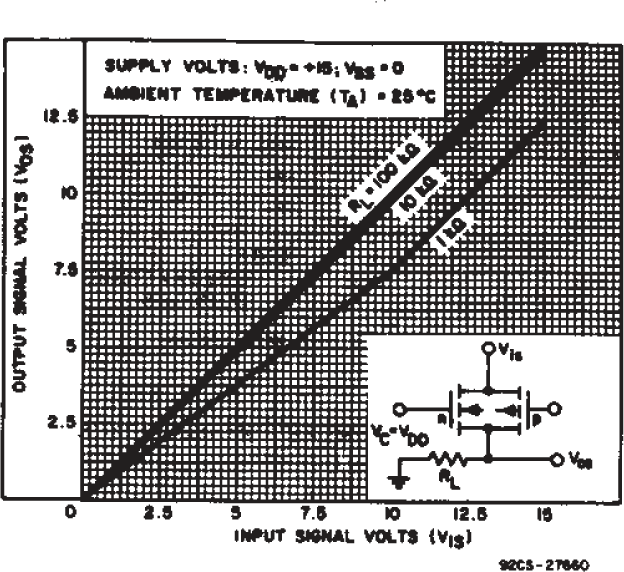

Figure 4-4 On-state Characteristics
for 1 of 4 Switches with vDD = +15V, vSS = 0V.

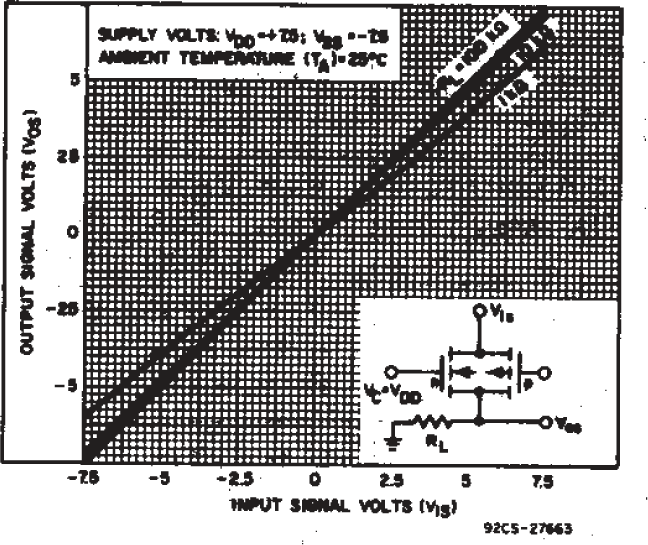

Figure 4-6 On-state Characteristics
for 1 of 4 Switches with vDD = +7.5V, vSS= ?
7.5V.

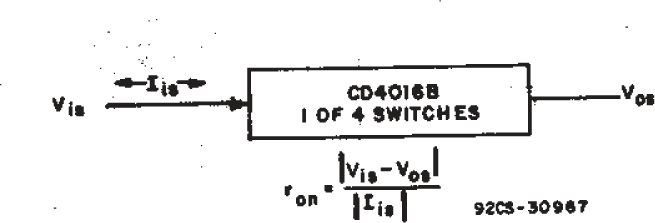

Figure 4-8 Determination of
Ron As a Test Condition for Control Input High Voltage
Specification.
