9.3 System Examples

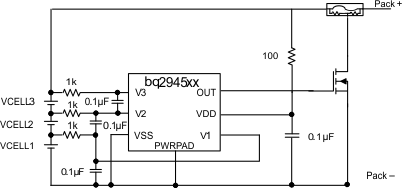

Figure 9-4 3-Series Cell
Configuration with Fixed Delay

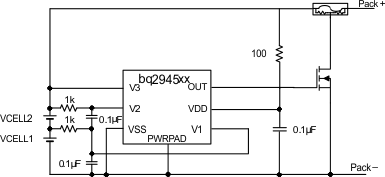

Figure 9-5 2-Series Cell
Configuration with Internal Fixed Delay
