9.3.5.2 Single Input from VAC to VBUS without ACFET-RBFET
In this scenario, VAC1 and VAC2 are both shorted to VBUS, ACDRV1 and ACDRV2 are pulled down to ground. The table below summarizes the VAC1/VAC2, ACDRV1/ACDRV2 connection, register control, and status functions.
Table 9-1 Single Input without External
FET Summary
| INPUT CONFIGURATION | SINGLE INPUT |
|---|---|
| External FET connection | No external FET |
| Input pin connection | VAC1 and VAC2 short to VBUS |
| ACDRV pin connection | ACDRV1 and ACDRV2 short to ground |
| ACDRV1_STAT | 0 |
| ACDRV2_STAT | 0 |
| DIS_ACDRV_BOTH | 1 |
| ACRB1_CONFIG_STAT | 0 |
| ACRB2_CONFIG_STAT | 0 |
| EN_HIZ | No impact on ACDRV |

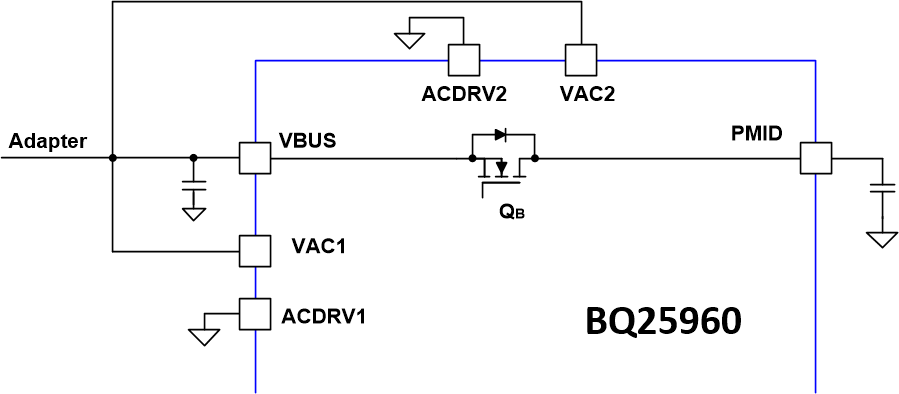

Figure 9-3 Single input
without ACFET-RBFET
