8.4.4.4 QON Pin Operations
The QON pin incorporates two functions to control BATFET. QON is pulled up to VQON by an internal 200-kΩ pull-up resistor.
- BATFET Enable: A QON logic transition from high to low with longer than tSHIPMODE deglitch turns on BATFET to exit shipping mode. When exiting shipping mode, HIZ is enabled (EN_HIZ = 1) as well. HIZ can be disabled (EN_HIZ = 0) by the host after exiting shipping mode. OTG cannot be enabled (OTG_CONFIG = 1) until HIZ is disabled.
- BATFET Reset: When QON is driven to logic low by at least tQON_RST while adapter is not plugged in (and BATFET_DIS = 0), the BATFET is turned off for tBATFET_RST. The BATFET is re-enabled after tBATFET_RST duration. This function allows systems connected to SYS to have power-on-reset. This function can be disabled by setting BATFET_RST_EN bit to 0.
Figure 8-10 shows the sample external configurations for each.

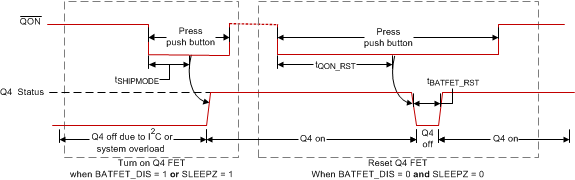

Figure 8-10 QON Timing

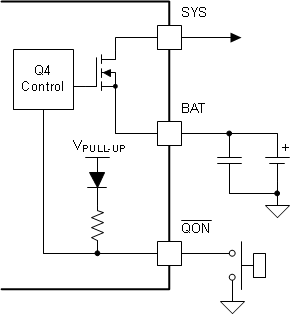

Figure 8-11 QON Circuit
