8.2.1.3 Application Curves
CIN = 1 μF, COUT = 1 μF, VIN = 5 V, VOUT = 3.8 V, ICHG = 600 mA (unless otherwise specified)

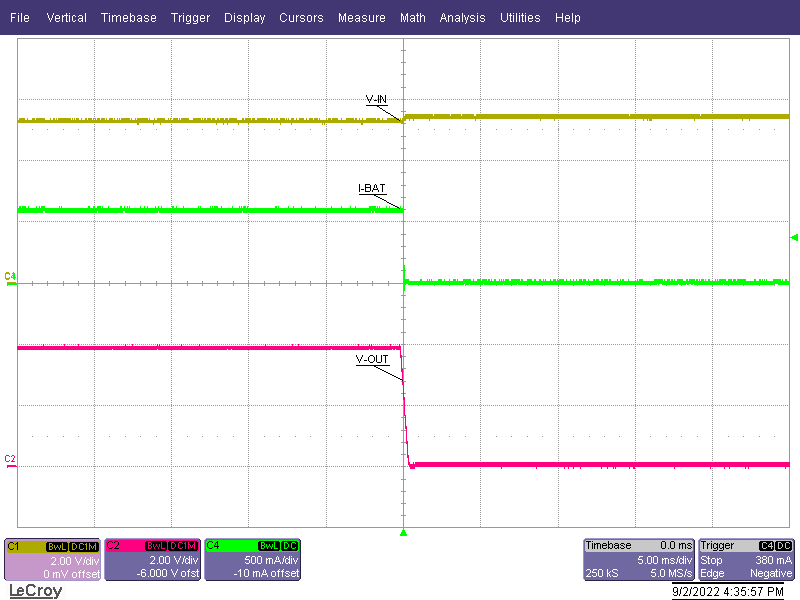

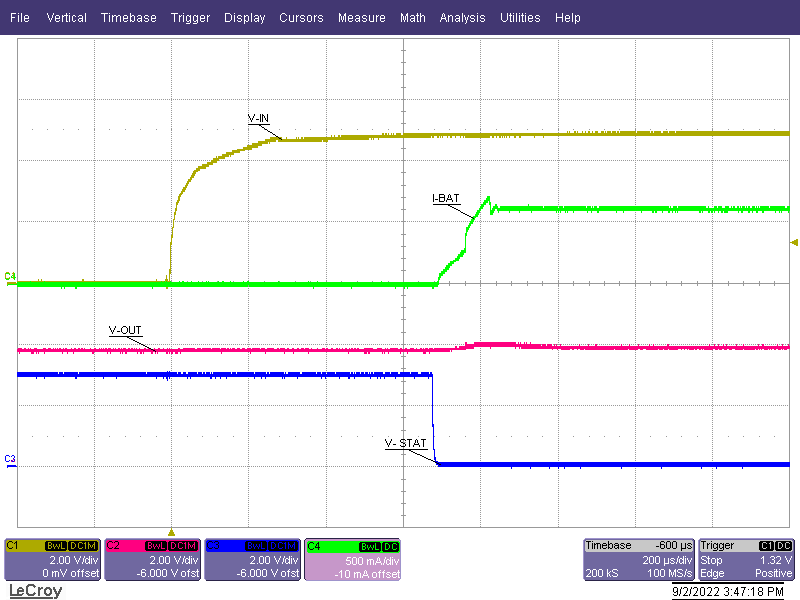

| RISET = 500 Ω |

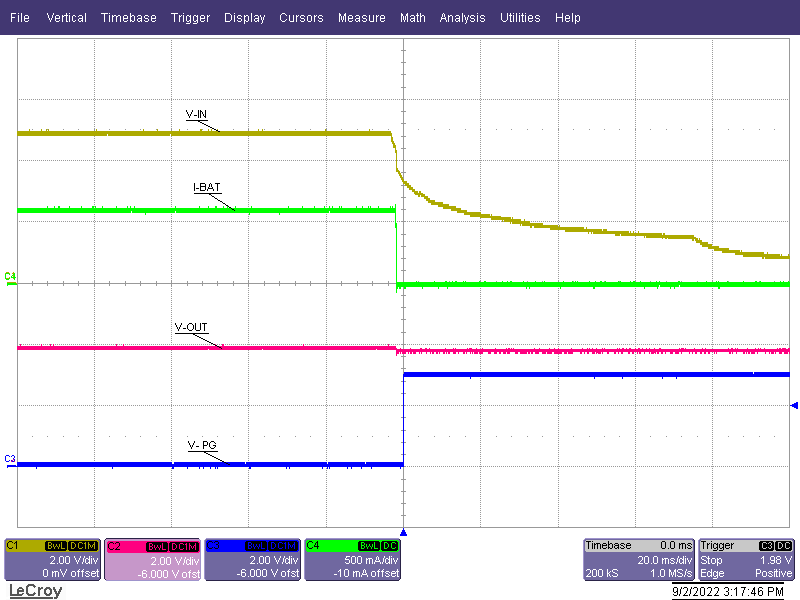

| VIN = 5 V → 0 V |

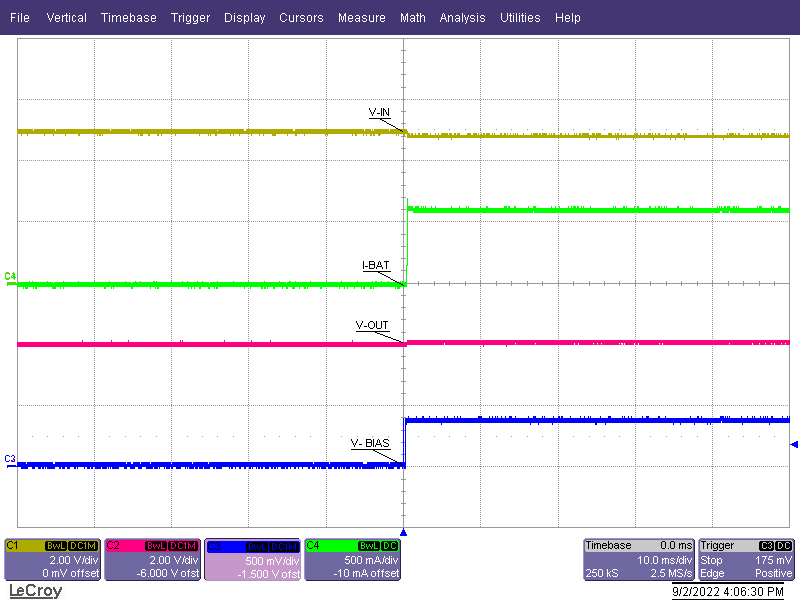

| BIAS pin pull-low released |
| RISET = 0.5 kΩ | VOUT = 4.0 V → 0 V |

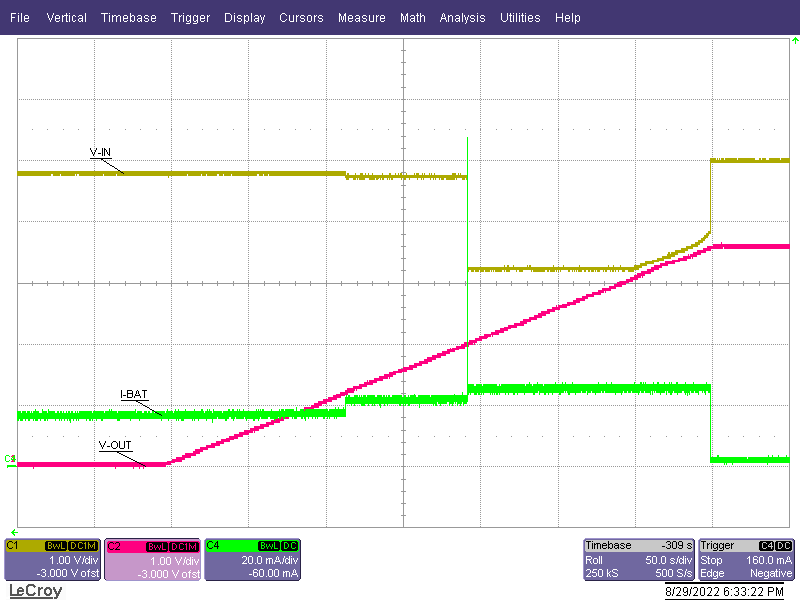

| RISET = 1.5 kΩ | VSET = 4.2V | Input source Ilimit = 25 mA |

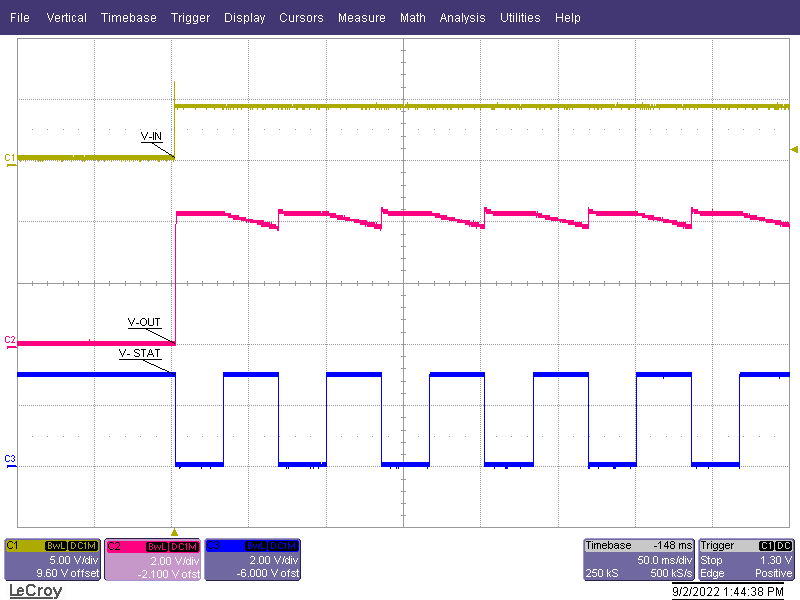

| RISET = 500 Ω | OUT = open-circuit |

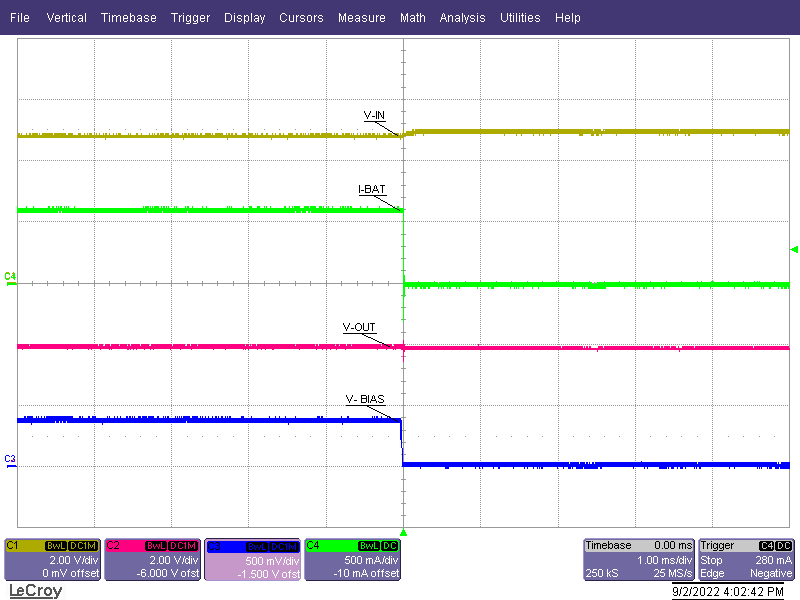

| BIAS pin pulled LOW |

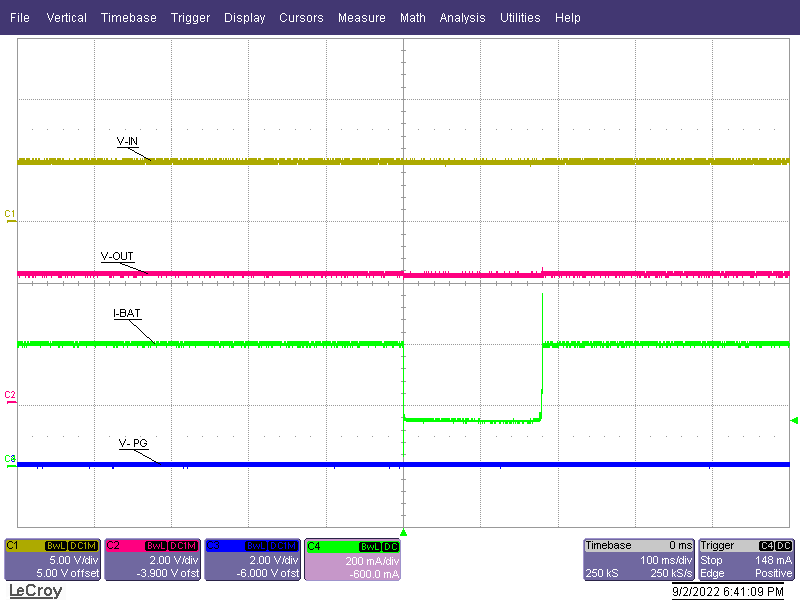

| VOUT = VSET = 4.2 V | RISET = 0.5 kΩ | ISYS = 0 mA → 250 mA |

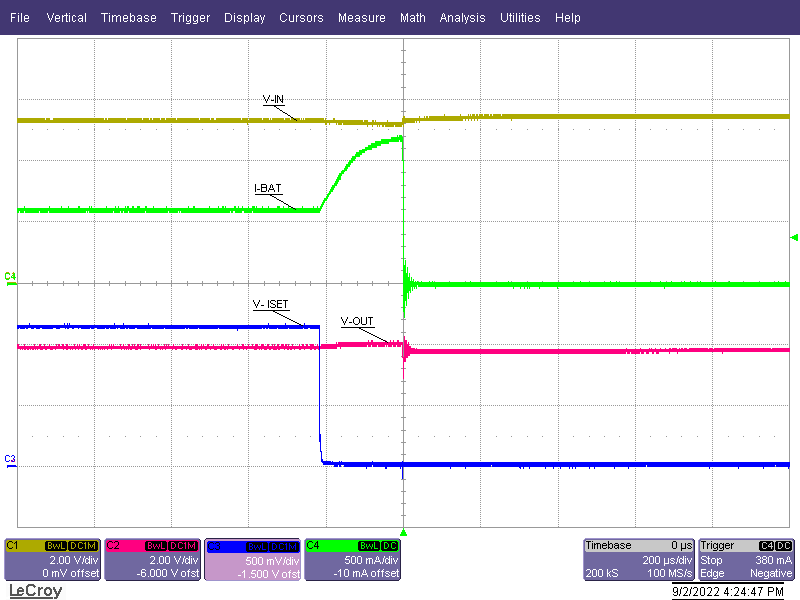

| RISET = 500 Ω → 0 Ω |

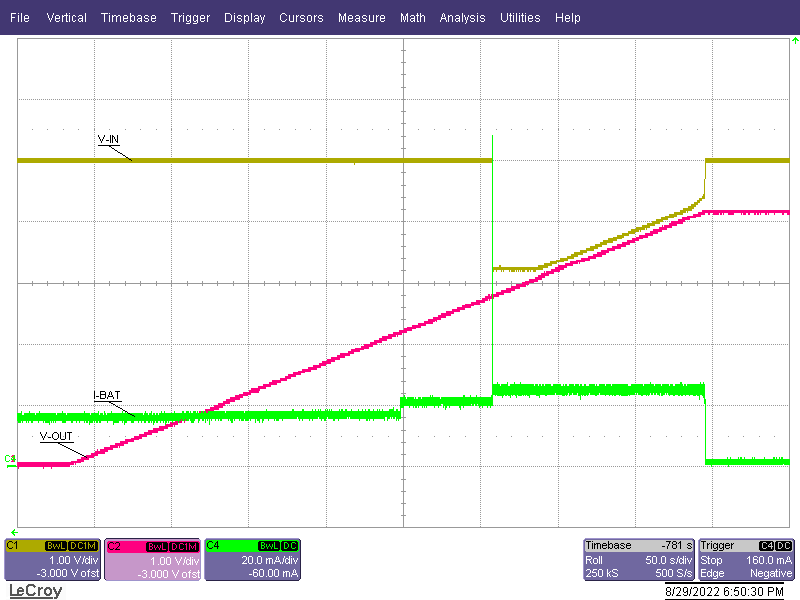

| RISET = 1.5 kΩ | VSET = 3.6V | Input source Ilimit = 25 mA |
