9.4.2 Explanation of Deglitch Times and Comparator Hysteresis
Note:
Figure 9-10 to Figure 9-14 are not to scale.

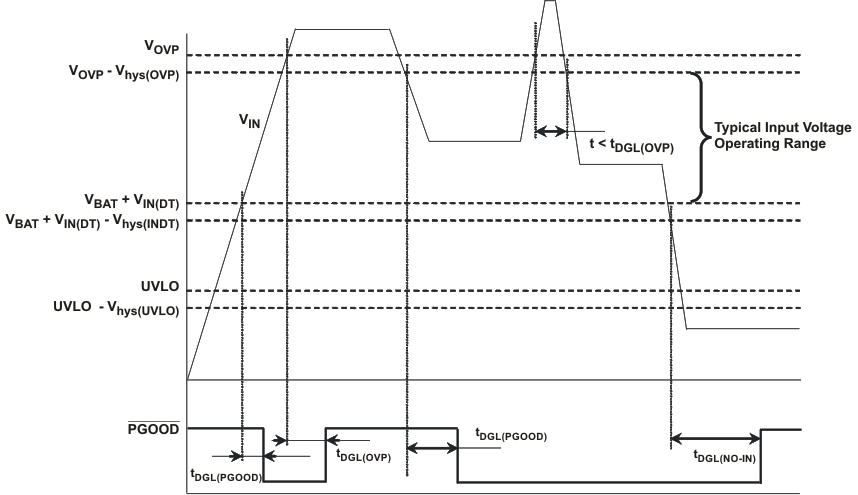

Figure 9-10 Power-Up, Power-Down, Power Good Indication

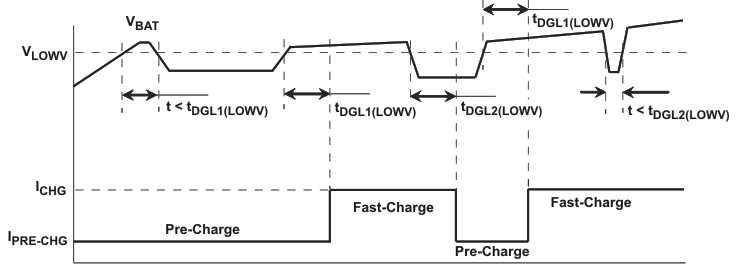

Figure 9-11 Precharge to Fast-Charge, Fast- to Pre-Charge Transition – tDGL1(LOWV), tDGL2(LOWV)

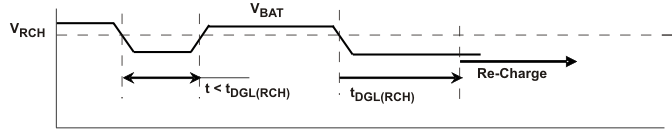

Figure 9-12 Recharge – tDGL(RCH)

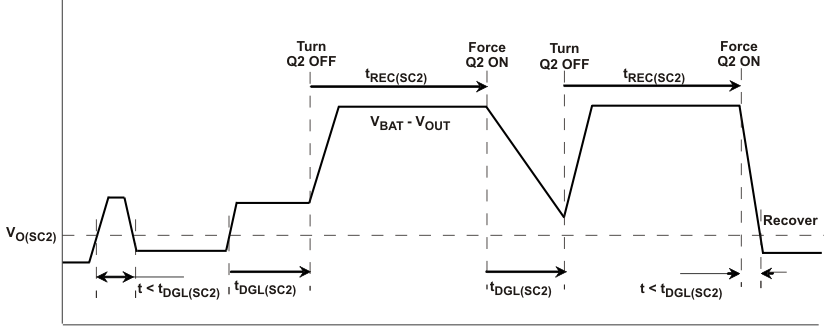

Figure 9-13 OUT Short-Circuit – Supplement Mode

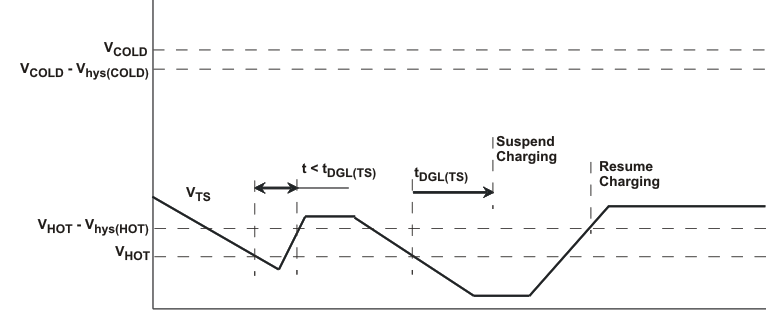

Figure 9-14 Battery Pack Temperature Sensing – TS Pin. Battery Temperature Increasing
