9.3.5 Charge Current Translator
When the charger is enabled, internal circuits generate a current proportional to the charge current at the ISET input. The current out of ISET is 1/400 (±10%) of the charge current. This current, when applied to the external charge current programming resistor, RISET, generates an analog voltage that can be monitored by an external host to calculate the current sourced from BAT.
Equation 2. VISET = ICHARGE / 400 × RISET

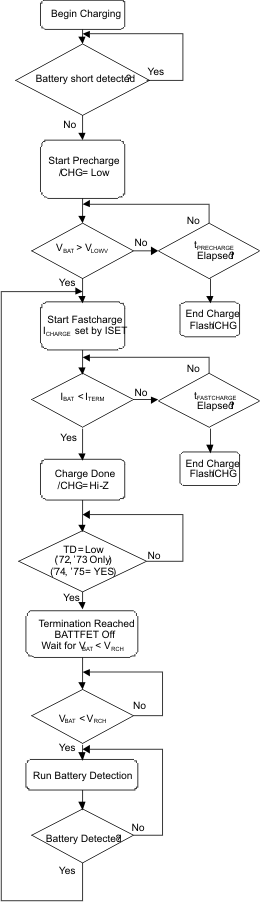

Figure 16. Battery Charging Flow Diagram
