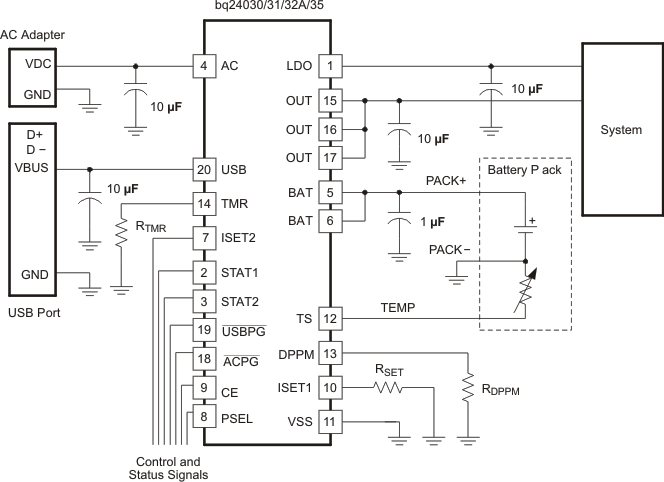

11.2.1 Design Requirements

A bq24070 (V_OUT = 4.4 V_reg) is powered through an AC adaptor with IN input is set for ~5.1 V (1.5 A current limit), I_(CHG) = 1 A, V_(DPPM-SET) = 3.7 V, V_(DPPM-REG) = 1.15 × V_(DPPM-SET) = 4.26 V, Mode = H, and USB input is not connected. A 103AT thermistor is inside the battery pack. A 6-hour saftey timeout is desired.

11.2.2 Detailed Design Procedure

The minimum required 0.1 μF capacitors are placed on IN and OUT. Additional 10 μF capacitors are included on IN and OUT to improve load transient response. The recommended (but not required) 33 μF capacitor on BAT is added to allow for operation when no battery is attached. A 0.22 μF capacitor is connected between BAT and ISET1 to improve operation at low charge currents.

Rearranging Equation 5 gives R_SET = V_(SET) x K_(SET) / I_O(BAT) = 2.5 V x 425 / 1 A = 1062.5 Ω → 1070 Ω. Per Equation 4, the precharge current is 100 mA and per Equation 10, the termination current is 100 mA. Since MODE is high, in order to prevent the charge current from being reduced by 1/2, ISET2 is tied high.

Rearranging Equation 7 gives R_TMR = t_(CHG) / K_(TMR) gives 6 hrs x 60 min/hr x 60 s/min / 0.360 s/Ω = 60 kΩ → 60.4 kΩ

Rearranging Equation 1 gives R_DPPM = V_(DPPM-REG) / (I_(DPPM) x SF) = 4.26 V / ( 100 μA x 1.15) = 37.044 kΩ →37.4 kΩ. C_DPPM of 10 nF was added to prevent the IC from falsely entering short circuit protection at start up.

Not shown are 1.5-kΩ resistors and LEDs pulled up to V(IN) from STAT1, STAT2 and PG.

11.2.3 Application Curves

Figure 8 illustrates DPPM and battery supplement modes as the output current (I_OUT) is increased; channel 1 (CH1) VAC = 5.4 V; channel 2 (CH2) V_OUT; channel 3 (CH3) I_OUT = 0 to 2.2 A to 0 A; channel 4 (CH4) V_BAT = 3.5 V; I_(PGM-CHG) = 1 A. In typical operation, bq24032A (V_OUT = 4.4 V_reg), through an AC adaptor overload condition and recovery. The AC input is set for ~5.1 V (1.5 A current limit), I_(CHG) = 1 A, V_(DPPM-SET) = 3.7 V, V_(DPPM-OUT) = 1.15 × V_(DPPM-SET) = 4.26 V, V_BAT = 3.5 V, PSEL = H, and USB input is not connected. The output load is increased from 0 A to ~2.2 A and back to 0 A as shown in the bottom waveform. As the I_OUT load reaches 0.5 A, along with the 1-A charge current, the adaptor starts to current limit, the output voltage drops to the DPPM-OUT threshold of 4.26 V. This is DPPM mode. The AC input tracks the output voltage by the dropout voltage of the AC FET. The battery charge current is then adjusted back as necessary to keep the output voltage from falling any further. Once the output load current exceeds the input current, the battery has to supplement the excess current and the output voltage falls just below the battery voltage by the dropout voltage of the battery FET. This is the battery supplement mode. When the output load current is reduced, the operation described is reversed as shown. If V_(DPPM-REG) was set below the battery voltage, during input current limiting, the output falls directly to the battery's voltage.

Under USB operation, when the loads exceeds the programmed input current thresholds a similar pattern is observed. If the output load exceeds the available USB current, the output instantly goes into the battery supplement mode.

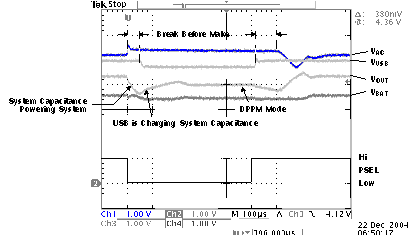

Figure 9 illustrates when PSEL is toggled low for 500 μs. Power transfers from AC to USB to AC; channel 1 (CH1) VAC = 5.4 V; channel 2 (CH2) V_(USB) = 5 V; channel 3 (CH3) V_OUT; output current, I_OUT = 0.25 A; channel 4 (CH4) V_BAT = 3.5 V; and I_(PGM-CHG) = 1 A. When the PSEL went low (1^st div), the AC FET opened, and the output fell until the USB FET turned on. Turning off the active source before turning on the replacement source is referred to as break-before-make switching. The rate of discharge on the output is a function of system capacitance and load. Note the cable IR drop in the AC and USB inputs when they are under load. At the 4^th division, the output has reached steady-state operation at V_(DPPM-REG) (charge current has been reduced due to the limited USB input current). At the 6^th division, the PSEL goes high and the USB FET turns off followed by the AC FET turning on. The output returns to its regulated value, and the battery returns to its programmed current level.

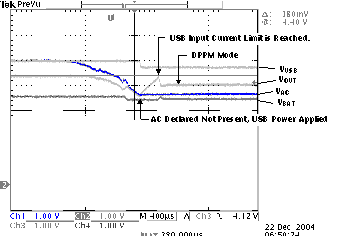

Figure 10 illustrates when AC is removed, power transfers to USB; PSEL = H (AC primary source); channel 1 (CH1) VAC = 5.4 V; channel 2 (CH2) V_(USB) = 5 V; channel 3 (CH3) V_OUT; output current, I_OUT = 0.25 A; channel 4 (CH4) V_BAT = 3.5 V; and I_(PGM-CHG) = 1 A. The power transfer from AC to USB only takes place after the primary source (AC) is considered bad (too low, V_AC<=V_BAT + 125 mV) indicated by the ACPG FET turning off (open drain not shown). Thus, the output drops down to the battery voltage before the USB source is connected (6^th div). The output starts to recover when the USB FET starts to limit the input current (7^th div) and the output drops to the V_(DPPM-REG) threshold.

Figure 11 illustrates when AC (low battery) is removed, power transfers to USB; PSEL = H; channel 1 (CH1) VAC = 5.4 V; channel 2 (CH2) V_(USB) = 5 V; channel 3 (CH3) V_OUT; output current, I_OUT = 0.25 A; channel 4 (CH4) V_BAT = 2.25 V; and I_(PGM-CHG) = 1 A. This figure is the same as where the battery has more capacity. Note that the output drops to the battery voltage before switching to USB power. A resistor divider between AC and ground tied to PSEL can toggle the power transfer earlier if necessary.

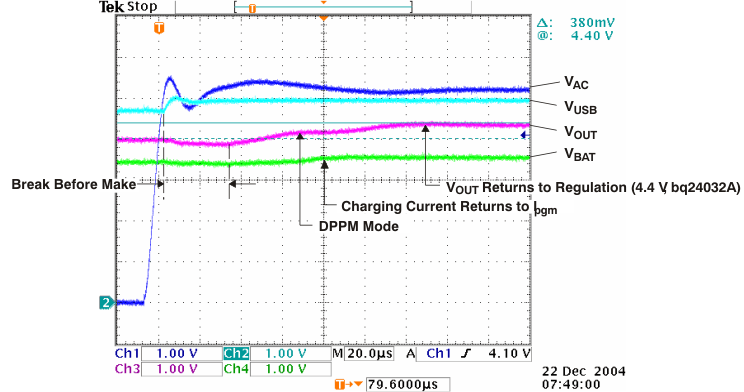

Figure 12 illustrates when AC is applied, power transfers from USB to AC; PSEL = H; channel 1 (CH1) VAC = 5.4 V; channel 2 (CH2) V_(USB) = 5 V; channel 3 (CH3) V_OUT; output current, I_OUT = 0.25 A; channel 4 (CH4) V_BAT = 3.5 V; and I_(PGM-CHG) = 1 A. The charger is set for AC priority but is running off USB until AC is applied. When AC is applied (1^st div) and the USB FET opens (2^nd div), the AC FET closes (3^rd div) and the output recovers from the DPPM threshold (8^th div).

Figure 13 illustrates when USB is removed, power transfers from USB to AC; PSEL = L; channel 1 (CH1) VAC = 5.4 V; channel 2 (CH2) V_(USB) = 5 V; channel 3 (CH3) V_OUT; output current, I_OUT = 0.25 A; channel 4 (CH4) V_BAT = 3.5 V; and I_(PGM-CHG) = 1 A. The USB source is removed (2^nd div) and the output drops to the battery voltage (declares USB bad, 4^th div) and switches to AC (in USB mode) and recovers similar to the figure that is switching to USB power. This power transfer occurred with PSEL low, which means that the AC input is regulated as if it were a USB.

Figure 14 illustrates when the battery is absent, power transfers to USB; PSEL = H; channel 1 (CH1) VAC = 5.4 V; channel 2 (CH2) V_(USB) = 5 V; channel 3 (CH3) V_OUT; output current, I_OUT = 0.25 A; channel 4 (CH4) V_BAT; I_(PGM-CHG) = 1 A. Note the saw-tooth waveform due to cycling between charge done and refresh (new charge).

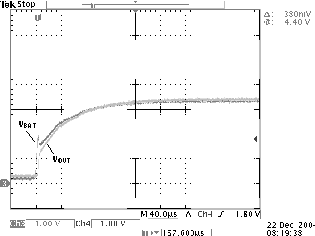

Figure 15 illustrates when a battery is inserted for power up; channel 1 (CH1) VAC = 0 V; channel 2 (CH2) V_USB = 0 V; channel 3 (CH3) V_OUT; output current, I_OUT = 0.25 A for V_OUT > 2 V; channel 4 (CH4) V_BAT = 3.5 V; C_(DPPM) = 0 pF. When there are no power sources and the battery is inserted, the output tracks the battery voltage if there is no load (<10 mA of load) on the output, as shown. If a load is present that keeps the output more than 200 mV below the battery, a short-circuit condition is declared. At this time, the load has to be removed to recover. A capacitor can be placed on the DPPM pin to delay implementing the short-circuit mode and get unrestricted (not limited) current.

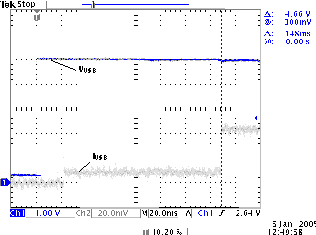

Figure 16 illustrates USB bootup and power-up via USB; channel 1 (CH1) V_(USH) = 0 to 5 V; channel 2 (CH2) USB input current (0.2 A/div); PSEL = Low; CE = High; ISET2 = High; V_BAT = 3.85 V; V_(DPPM) = 3.0 V (V_(DPPM) × 1.15 < V_BAT, otherwise DPPM mode increases time duration). When a USB source is applied (if AC is not present), the CE pin and ISET2 pin are ignored during the boot-up time and a maximum input current of 100 mA is made available to the OUT or BAT pins. After the boot-up time, the bqTINY III-series implements the CE and ISET2 pins as programmed.

Figure 8. DPPM and Battery Supplement Modes

Figure 10. Remove AC – PWR XFER to USB

Figure 12. Apply AC – PWR XFER From USB to AC

Figure 14. Battery Absent – PWR XFER to USB

Figure 16. USB Boot-Up Power-Up

Figure 9. Toggle PSEL Low

Figure 11. Remove AC (Low Battery) – PWR XFER to USB

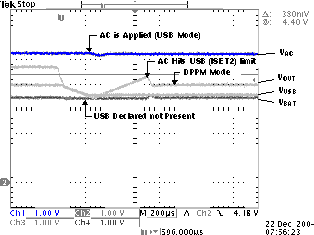

Figure 13. Remove USB – PWR XFER From USB to AC

Figure 15. Insert Battery – Power-Up Output via BAT
