11 Layout
11.1 Layout Guidelines
A layout recommendation showing the critical placement of the decoupling capacitors (as close as possible to the AMC1305-Q1) and placement of the other components required by the device is shown in Figure 59.
For the AMC1305L25-Q1 version, place the 100-Ω termination resistor as close as possible to the CLKIN, CLKIN_N inputs of the device to achieve highest signal integrity. If not integrated, an additional termination resistor is required as close as possible to the LVDS data inputs of the MCU or filter device; see Figure 60.
11.2 Layout Examples

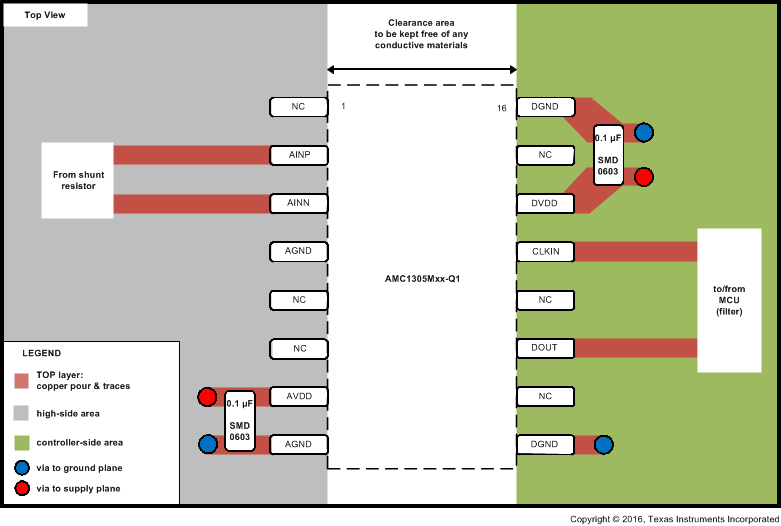

Figure 59. Recommended Layout of the AMC1305Mx-Q1

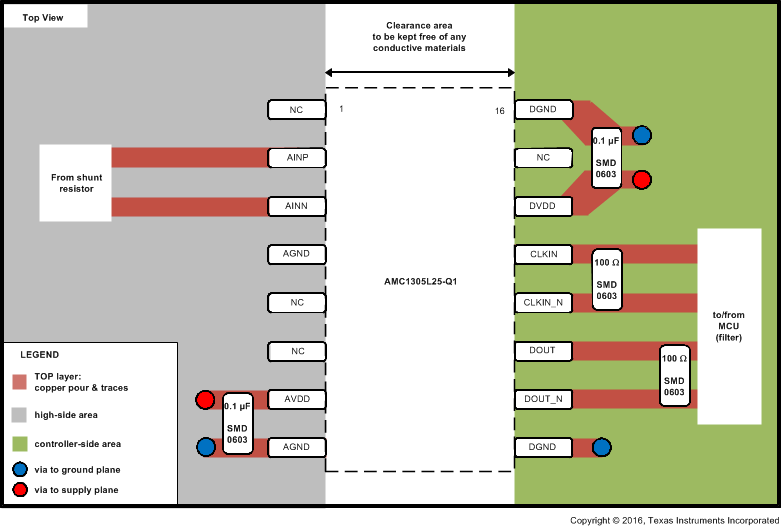

Figure 60. Recommended Layout of the AMC1305L25-Q1
