8.13 Typical Characteristics
At TJ = 25°C, PA_VS = 16 V, VAVDD = VDVDD = 3.3 V, and 10 kΩ connected to PA_ISET (pin 46), unless otherwise noted.
Figure 5. Tx Filter Gain vs Frequency

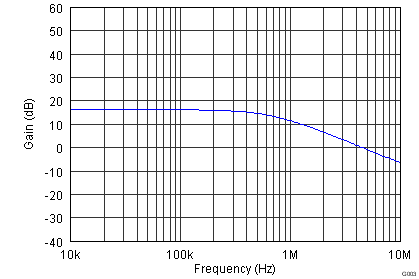

Figure 7. PA Gain vs Frequency

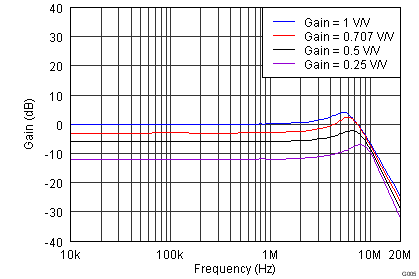

Figure 9. Tx PGA Gain vs Frequency

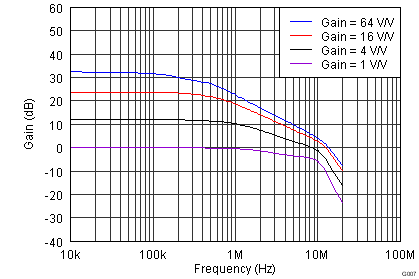

Figure 11. Rx PGA2 Gain vs Frequency

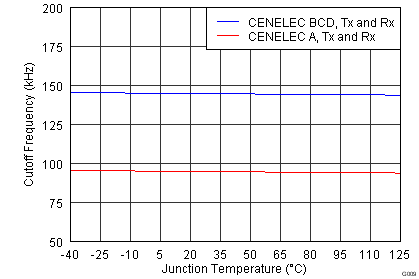

Figure 13. Filter Cutoff vs Temperature

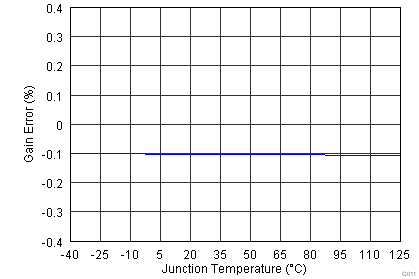

Figure 15. PA Gain Error vs Temperature

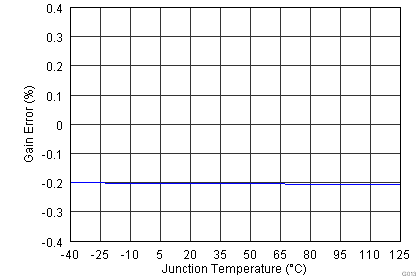

Figure 17. Rx PGA2 Gain Error vs Temperature

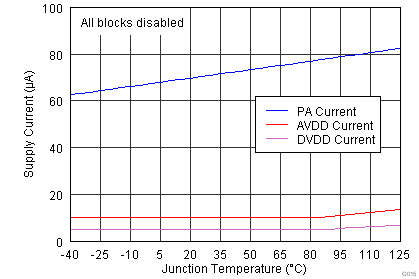

Figure 19. Supply Current (Shutdown) vs Temperature

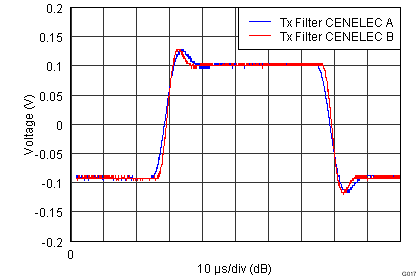

Figure 21. Tx Filter Pulse Response
Figure 23. Rx Pulse Response
Figure 6. Rx Filter Gain vs Frequency

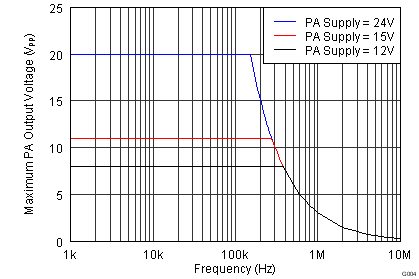

Figure 8. Maximum PA Output Voltage vs Frequency

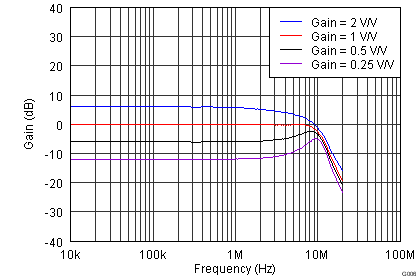

Figure 10. Rx PGA1 Gain vs Frequency

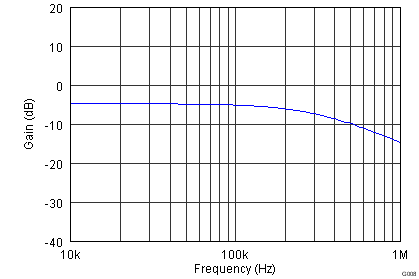

Figure 12. Two-Wire Receiver Gain vs Frequency

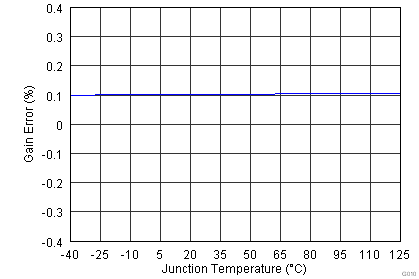

Figure 14. Tx PGA Gain Error vs Temperature
Figure 16. Rx PGA1 Gain Error vs Temperature

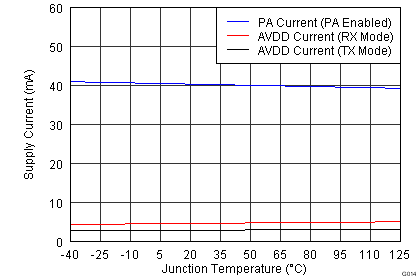

Figure 18. Quiescent Supply Current vs Temperature

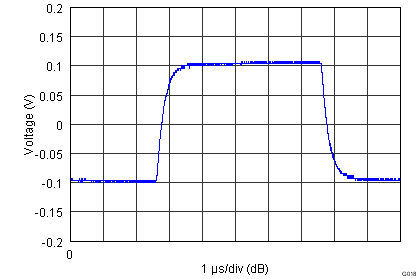

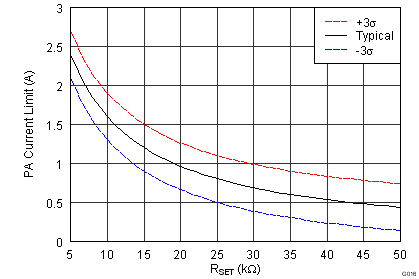

Figure 22. PA Pulse Response
