1 Features

• USB Type-C™ Specification 1.1
• Backward Compatible with USB Type-C Specification 1.0
• Supports Up to 3 A of Current Advertisement and Detection
• Mode Configuration
  • Host Only – DFP (Source)
  • Device Only – UFP (Sink)
  • Dual Role Port – DRP
  • Supports both Try.SRC and Try.SNK
• Channel Configuration (CC)
  • Attach of USB Port Detection
  • Cable Orientation Detection
  • Role Detection
  • Type-C Current Mode (Default, Medium, High)
• V_BUS Detection
• I²C or GPIO Control
• Supports up to 400 kHz I²C
• Role Configuration Control Through I²C
• Supply Voltage: 2.7 V to 5 V
• Low Current Consumption
• Industrial Temperature Range of –40 to 85°C

2 Applications

• Host, Device, Dual Role Port Applications
• Mobile Phones
• Tablets and Notebooks
• USB Peripherals

3 Description

The TUSB320LA and TUSB320HA devices, hereafter called TUSB320 unless otherwise noted, are Texas Instrument's third generation Type-C configuration channel logic and port controller. The TUSB320 devices use the CC pins to determine port attach and detach, cable orientation, role detection, and port control for Type-C current mode. The TUSB320 devices can be configured as a downstream facing port (DFP), upstream facing port (UFP) or a dual role port (DRP) making them ideal for any application.

The TUSB320 devices have an alternate configuration as a DFP or UFP according to the Type-C specifications. The CC logic block monitors the CC1 and CC2 pins for pullup or pulldown resistances to determine when a USB port has been attached, the orientation of the cable, and the role detected. The CC logic detects the Type-C current mode as default, medium, or high depending on the role detected. V_BUS detection is implemented to determine a successful attach in UFP and DRP modes.

The devices operate over a wide supply range and have low-power consumption. The TUSB320 is available in two versions of enable: Active low enable called TUSB320LA and active high enable called TUSB320HA. The TUSB320 family of devices are available in industrial temperature ranges.

1. For all available packages, see the orderable addendum at the end of the data sheet.

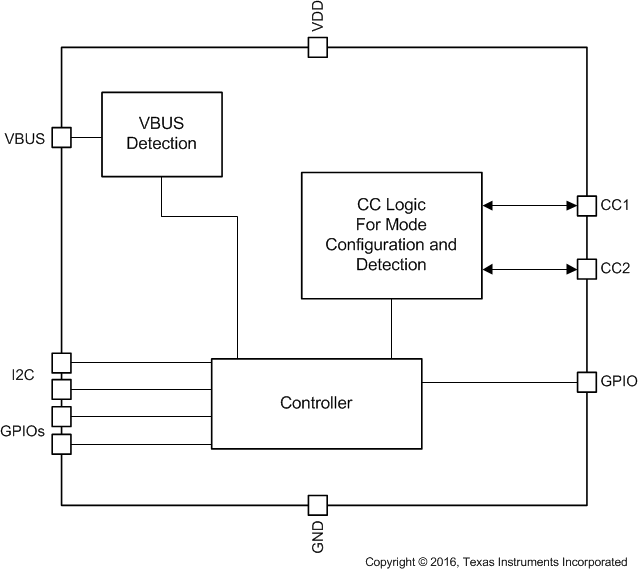

Simplified Schematic

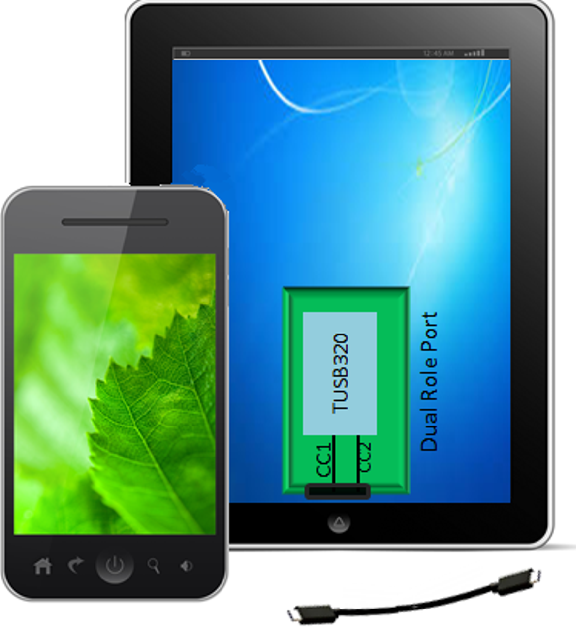

Sample Applications
