1 Features

• 5962R13202:
  • Radiation Hardness Assurance (RHA) up to TID 100 krad (Si)
  • Total Ionizing Dose 100 krad (Si)
  • ELDRS-Free 100 krad (Si)
  • Dose Rate 10 mRAD (si)/s
  • Single Event Latchup (SEL) Immune to
    LET = 85 MeV-cm²/mg
  • SEB and SEGR Immune to
    LET = 85 MeV-cm²/mg
  • SET/SEFI Onset Threshold > 40 MeV-cm²/mg, See Radiation Report for Details
    • Specifically Designed to Always Upset Low to Avoid Damage to Critical Downstream Component
  • SET/SEFI Cross-Section Plot, See Radiation Report for Details
• Ultra-Low V_IN Range: 1.5 V to 7 V
• 3-A Maximum Output Current
• Current Share/Parallel Operation to Provide up to 6-A Output Current
• Stable With Ceramic Output Capacitor
• ±2% Accuracy Over Line, Load, and Temperature
• Programmable Soft-Start Through External Capacitor
• Input Enable and Power-Good Output for Power Sequencing
• Ultra-Low Dropout LDO Voltage:
  62 mV at 1 A (25°C), V_OUT = 1.8 V
• Low Noise:
  20.33 µVRMS V_IN = 2 V, V_OUT = 1.8 V at 3 A
• PSRR: Over 45 dB at 1 kHz
• Excellent Load/Line Transient Response
• Foldback Current Limit
• See the Tools & Software Tab
• Thermally-Enhanced CFP Package (0.6°C/W R_θJC)

2 Applications

• Space Satellite Point of Load Supply for FPGAs, Microcontrollers, ASICs, and Data Converters
• Space Satellite Payloads
• Radiation-Hardened Low-Noise Linear Regulator Power Supply for RF, VCOs, Receivers, and Amplifiers
• Clean Analog Supply Requirements
• Available in Military (–55°C to 125°C) Temperature Range
• Engineering Evaluation (/EM) Samples are Available⁽¹⁾

3 Description

The TPS7H1101-SP is a radiation-hardened LDO linear regulator that uses a PMOS pass element configuration. This device operates over a wide range of input voltage, from 1.5 V to 7 V while offering excellent PSRR. The TPS7H1101-SP features a precise and programmable foldback current limit implementation with a very-wide adjustment range. To support the complex power requirements of FPGAs, DSPs, or microcontrollers, the TPS7H1101-SP provides enable on and off functionality, programmable SoftStart, current sharing capability, and a PowerGood open-drain output.

1. These units are intended for engineering evaluation only. They are processed to a noncompliant flow (that is, no burn-in, and so forth) and are tested to a temperature rating of 25°C only. These units are not suitable for qualification, production, radiation testing or flight use. Parts are not warranted for performance over the full MIL specified temperature range of –55°C to 125°C or operating life.
2. For all available packages, see the orderable addendum at the end of the data sheet.

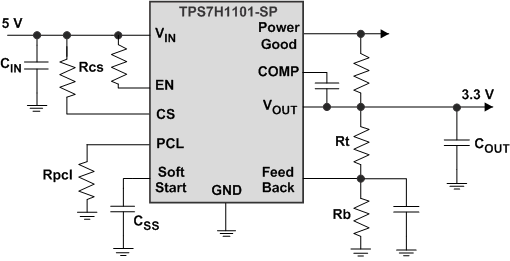

Typical Application Circuit
