1 Features
- 2.9-V to 4.5-V Input Voltage Range
- Boost Converter 1 (VPOS)
- 4.6-V Output Voltage
- 0.5% Accuracy (25°C to 85°C )
- Dedicated Output Sense Pin
- 300-mA Output Current
- Inverting Buck-Boost Converter (VNEG)
- –1.5-V to –5.4-V Programmable Output Voltage
- –4-V Default Output Voltage
- 300-mA Output Current
- Boost Converter 2 (AVDD)
- 5.8-V or 7.7-V Output Voltage
- 30-mA Output Current
- Excellent Line Transient Regulation
- Short-Circuit Protection
- Thermal Shutdown
- 3-mm × 3-mm, 16-Pin WQFN Package
2 Applications
AMOLED Displays
3 Description
The TPS65632 is designed to drive AMOLED displays (Active Matrix Organic Light Emitting Diode) requiring three supply rails, VPOS, VNEG and AVDD. The device integrates a boost converter for VPOS, an inverting buck-boost converter for VNEG, and a boost converter for AVDD, all of which are suitable for battery operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65632 uses a novel technology enabling excellent line and load regulation.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS65632 | WQFN (16) | 3.00 mm × 3.00 mm |
- For all available packages, see the orderable addendum at the end of the datasheet.
spacer
spacer
spacer

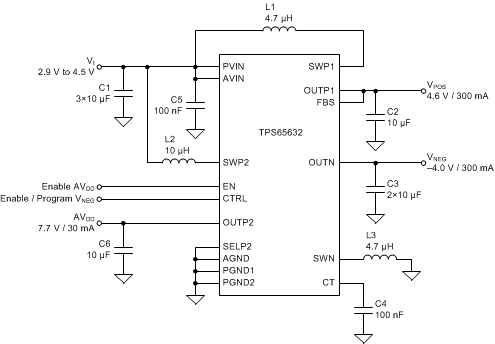

Simplified Schematic
Efficiency vs Output Current
