1 Features

• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
  • Device Temperature Grade 2:
    –40°C to +105°C Ambient Operating Temperature Range
  • Device HBM ESD Classification Level H2
  • Device CDM ESD Classification Level C4B
• Step-Down Converters:
  • V_IN Range From 2.3 V to 6 V
  • Spread-Spectrum Clock (SSC) Generation for Reduced EMI
  • 2.25-MHz Fixed-Frequency Operation
  • 600-mA Output Current
• LDOs:
  • V_IN Range From 1.6 V to 6 V
  • Adjustable Output Voltage
  • Up to 300-mA Output Current
  • Separate Power Inputs and Enables
• 3-mm × 3-mm 16-Pin WQFN

2 Applications

• Automotive Camera Module
• Automotive Infotainment
• Automotive Cluster
• Automotive Sensor Fusion

3 Description

The TPS65000-Q1 device is a single-chip power-management IC for automotive applications. This device combines a single step-down converter with two low-dropout regulators. The step-down converter enters a low-power mode at light load for maximum efficiency across the widest possible range of load currents. For low-noise applications, the device can be forced into fixed-frequency PWM using the MODE pin. The step-down converter allows the use of a small inductor and capacitors to achieve a small solution size. A power-good status output can be used for sequencing. The LDOs can supply 300 mA, and can operate with an input voltage range from 1.6 V tp 6 V, thus allowing them to be supplied from the step-down converter. The step-down converter and the LDOs have separate voltage inputs and enables, thus allowing for design and sequencing flexibility.

The TPS65000-Q1 is available in a 16-pin leadless package (3-mm × 3-mm WQFN).

1. For all available packages, see the orderable addendum at the end of the data sheet.

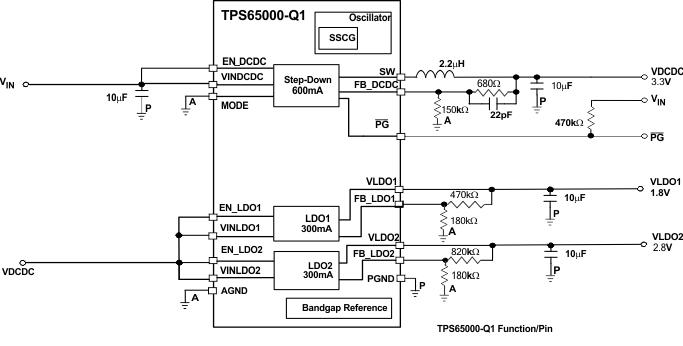

Typical Application Schematic
