SLLSEK0A December 2014 – February 2015 TPD6F002-Q1
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Simplified Schematic
- 5 Revision History
- 6 Pin Configuration and Functions
- 7 Specifications
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
Package Options
Mechanical Data (Package|Pins)
- DSV|12
Thermal pad, mechanical data (Package|Pins)
- DSV|12
Orderable Information
1 Features
- AEC-Q101 Qualified
- Six-Channel EMI Filtering for Data Ports
- –47 dB Crosstalk Attenuation at 100 MHz
- –30 dB Insertion Loss at 800 MHz
- –3 dB Bandwidth 100 MHz
- Pi-Style (C-R-C) Filter Configuration
(R = 100 Ω, CTOTAL = 34 pF) - Robust ESD Protection Exceeds IEC 61000-4-2
(Level 4)- ±20-kV IEC 61000-4-2 Contact Discharge
- ±30-kV IEC 61000-4-2 Air-Gap Discharge
- Low Leakage Current 20 nA (Max)
- Space-Saving SON Package (3 mm × 1.35 mm)
2 Applications
- LCD Display Interface
- GPIO
- Memory Interface
- Data Lines at Flex Cable
- FPD-Link
3 Description
The TPD6F002-Q1 is a highly integrated device that provides a six channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPD-Link.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPD6F002-Q1 | SON (12) | 3.00 mm × 1.35 mm |
- For all available packages, see the orderable addendum at the end of the datasheet.

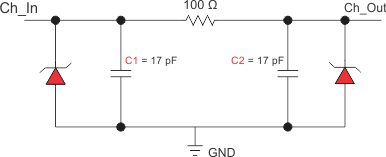

4 Simplified Schematic
