SLVSCK3C May 2014 – February 2017 TPD4E6B06
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
Package Options
Mechanical Data (Package|Pins)
- DPW|4
Thermal pad, mechanical data (Package|Pins)
- DPW|4
Orderable Information
1 Features
- IEC 61000-4-2 Level 4
- ±15-kV Contact Discharge
- ±15-kV Air Gap Discharge
- IEC 61000-4-5 (Surge): 3 A (8/20 µs)
- IO Capacitance: 4.8 pF (Typical)
- RDYN: 0.75 Ω (Typical)
- DC Breakdown Voltage: ±6 V (Minimum)
- Ultra Low Leakage Current: 100 nA (Maximum)
- Clamping Voltage: 10 V (Maximum at IPP = 1 A)
- Industrial Temperature Range: –40°C to +125°C
- Space Saving DPW Package (0.8 mm × 0.8 mm)
2 Applications
- Audio Lines
- Microphone
- Earphone
- Speakerphone
- SD Interface
- SIM Interface
- Mobile Keyboard or Other Buttons
- Cell Phones
- eBook
- Portable Media Players
- Digital Camera
- Tablet PC
- Wearables
3 Description
The TPD4E6B06 is a four channel electrostatic discharge (ESD) protection device in an ultra small DPW package. It is the industry’s smallest 4-channel transient voltage suppressor (TVS) diode with a 0.48-mm pitch. This larger pitch helps save on printed-circuit board (PCB) manufacturing costs. The device provides IEC61000-4-2 compliance up to 15-kV contact discharge. It has an ESD clamp circuit with back-to-back diodes for bipolar-bidirectional signal support. The 4.8-pF (typical) line capacitance is suitable for a wide range of applications supporting data rates up to 700 MHz.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPD4E6B06 | X2SON (4) | 0.80 mm × 0.80 mm |
- For all available packages, see the orderable addendum at the end of the data sheet.

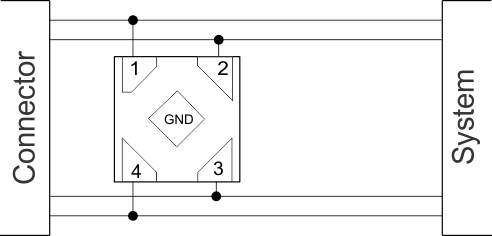

Simplified Schematic

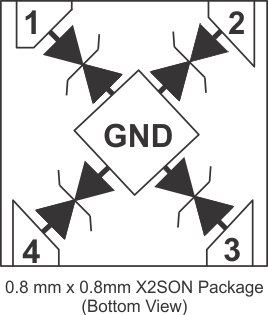

Pinout
