SLVSCO7C August 2014 – September 2017 TPD1E05U06-Q1 , TPD4E05U06-Q1
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Layout
- 10Device and Documentation Support
- 11Mechanical, Packaging, and Orderable Information
Package Options
Mechanical Data (Package|Pins)
- DQA|10
Thermal pad, mechanical data (Package|Pins)
- DQA|10
Orderable Information
1 Features
- AEC-Q101 Qualified
- Device HBM Classification Level H3B
- Device CDM Classification Level C5
- Device Temperature Range: –40°C to +125°C
- IEC 61000-4-2 Level 4 ESD Protection
(See the ESD Ratings—IEC Specification Table)- ±12-kV Contact Discharge
- ±15-kV Air Gap Discharge
- IEC 61000-4-4 EFT Protection
- 80 A (5/50 ns)
- IEC 61000-4-5 Surge Protection
- 2.5 A (8/20 µs)
- I/O Capacitance 0.42 pF to 0.5 pF (Typical)
- DC Breakdown Voltage 6.4 V (Minimum)
- Ultra Low Leakage Current 10 nA (Maximum)
- Low ESD Clamping Voltage (14 V at 5-A TLP)
- Easy Flow-Through Routing Packages
2 Applications
- End Equipment
- Head Unit
- Rear Seat Entertainment
- Telematics
- USB Hub
- Navigation Module
- Media Interface
- Interfaces
- USB 2.0
- USB 3.0
- HDMI 1.4/2.0
- LVDS
- DisplayPort
- SIM Card
3 Description
The TPDxE05U06-Q1 is a family of unidirectional Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. They are rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 level 4 international standard. The ultra-low loading capacitance makes these devices ideal for protecting any high-speed signal applications up to 6 Gbps.
These devices are also available without automotive qualification: TPDxE05U06.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPD4E05U06-Q1 | USON (10) | 2.50 mm × 1.00 mm |
| TPD1E05U06-Q1 | X1SON (2) | 0.60 mm x 1.00 mm |
- For all available packages, see the orderable addendum at the end of the datasheet.

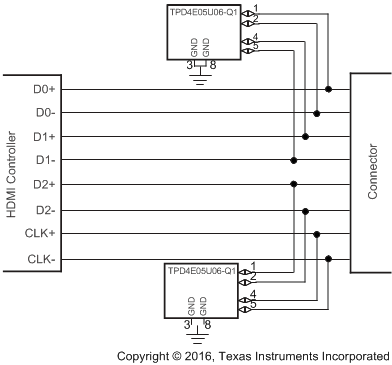

TPD4E05U06-Q1 Simplified Schematic

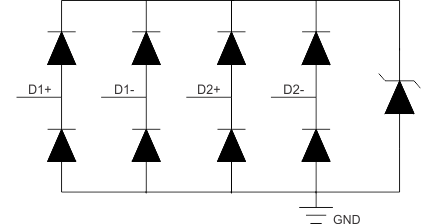

TPD4E05U06-Q1 Block Diagram
