1 Features

• 4:27 LVDS-to-CMOS Deserializer
• Pixel Clock Range of 4 MHz to 54 MHz, for Resolutions of 160 × 120 to 1024 × 600
• Special 2:27 Mode With 14x Sampling Allows Using Just Two Data Lanes
• Very Low EMI With 3-Way Selectable CMOS Slew Rate
• Supports Single 3.3-V Power Supply; V_DDIO Allows 1.8 V to 3.3 V for Flexible Panel Support
• Clock Output is Rising or Falling Edge
• Bus-Swap Feature for Flexible PCB Layout
• Integrated Switchable Input Termination
• All Input Pins are Failsafe; ±3 kV HBM ESD Protection
• 7-mm x 7-mm 48-Pin VQFN With 0.5-mm Pitch
• Compatible With TIA/EIA-644-A Transmitters

2 Applications

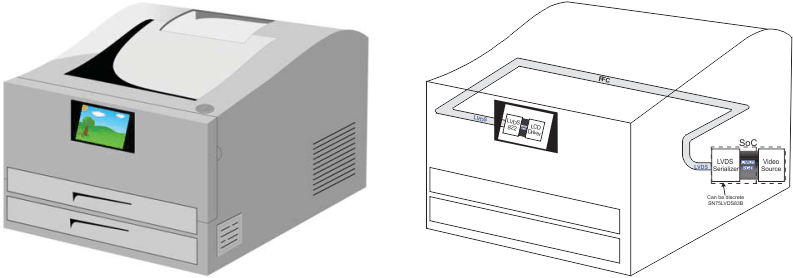

• Printers
• Appliances With an LCD
• Digital Cameras

3 Description

The SN65LVDS822 is an advanced FlatLink™ low-voltage differential signal (LVDS) receiver designed on a modern CMOS process. The device has several unique features, including three selectable CMOS output slew rates, CMOS output voltage support of 1.8 V to 3.3 V, a pinout swap option, integrated differential termination (configurable), an automatic low-power mode, and deserialization modes of 4:27 and 2:27. The device is compatible with TI FlatLink™ transmitters such as the SN75LVDS83B, SN65LVDS93A, and standard industry LVDS transmitters that comply with TIA/EIA 644-A.

The SN65LVDS822 features an automatic low-power Standby Mode, activated when the LVDS clock is disabled. The device enters an even lower-power Shutdown Mode with a low voltage applied to pin SHTDN#.

The SN65LVDS822 is packaged in a 48-pin 7-mm x 7-mm Plastic Quad Flatpack No-Lead (QFN) with a 0.5-mm pin pitch, and operates through an industrial ambient temperature range of –40°C to 85°C.

1. For all available packages, see the orderable addendum at the end of the datasheet.
