SNOSCY0 March 2014 LDC1051
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Terminal Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Applications and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
Package Options
Mechanical Data (Package|Pins)
- NHR|16
Thermal pad, mechanical data (Package|Pins)
Orderable Information
1 Features
- Remote Sensor Placement (Decoupling The LDC From Harsh Environments)
- High Durability (By Virtue Of Contactless Operation)
- Higher Flexibility For System Design (Using Coils Or Springs As Sensors)
- Insensitive to Non-conductive Environmental Interferers (such As Dirt, Dust, Oil etc.)
- Magnet-free Operation
- Supply Voltage: 5 V, typ
- Supply Voltage, IO: 1.8V to 5.5V
- Stand-by Current: 250uA, typ
- Rp Resolution: 8-bit
- LC Frequency Range: 5kHz to 5MHz
2 Applications
- Proximity Sensing
- Level Sensing
- Lateral Position Sensing
3 Description
Inductive sensing is a contactless, short-range sensing technology enabling high-resolution and low-cost position sensing of conductive targets, even in harsh environments. Using a coil or spring as a sensor, the LDC1051 inductance-to-digital converter provides system designers a way to achieve high performance and reliability at a lower system cost than other competing solutions.
The LDC1051 is pin compatible with the LDC1000 (16-bit Rp/24-bit L) and the LDC1041 (8-bit Rp/24-bit L). This family of devices offers system designers different resolution options based on their application and system requirements.
The LDC1051 is available in a 5mm x 4mm WSON-16 package. Device programming via SPI allows for easy configuration using a microcontroller.
Device Information
| ORDER NUMBER | PACKAGE | BODY SIZE |
|---|---|---|
| LDC1051NHRT | WSON (16) | 5 mm × 4 mm |
| LDC1051NHRR | WSON (16) | 5 mm × 4 mm |
| LDC1051NHRJ | WSON (16) | 5 mm × 4 mm |

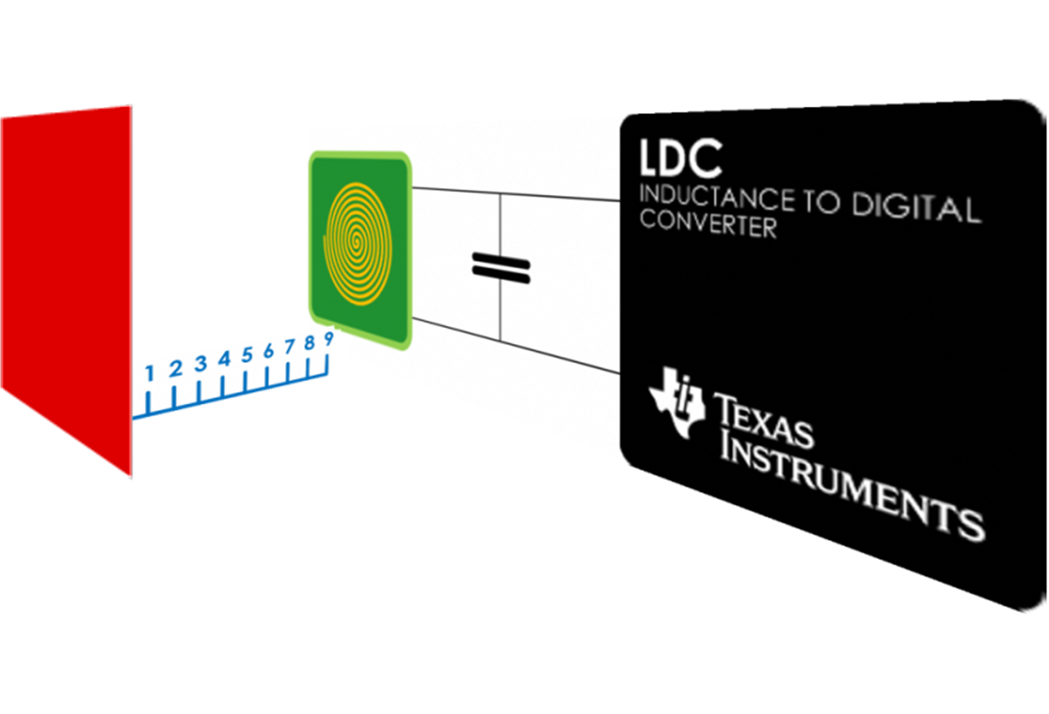

Axial Distance Sensing Application

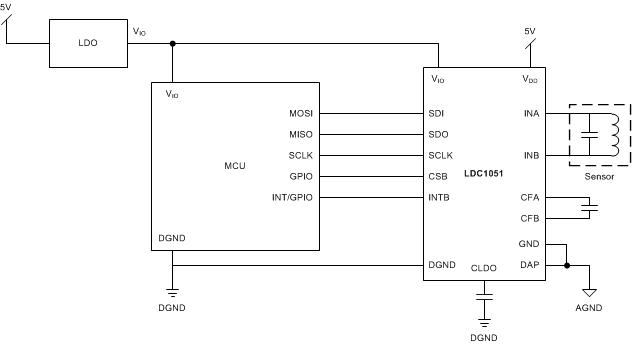

Application Schematic

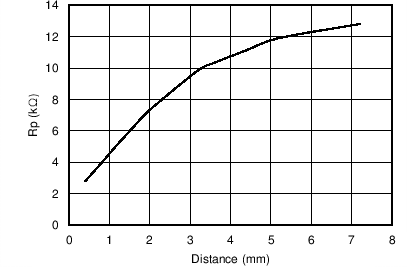

Rp vs Distance With 14mm PCB Coil
4 Revision History
| DATE | REVISION | NOTES |
|---|---|---|
| March 2014 | * | Initial release. |
