SLLSEV4 February 2017 TUSB319-Q1
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
封裝選項
機械數(shù)據(jù) (封裝 | 引腳)
- DRF|8
散熱焊盤機械數(shù)據(jù) (封裝 | 引腳)
- DRF|8
訂購信息
1 Features
- Meets USB Type-C™ Specifications
- Supports DFP (Host/Source) Applications with up to 15W Power
- Supports Type-C Current Mode Advertisement up to 3 A (Default, 1.5 A, 3 A)
- Provides Type-C Plug Orientation
- Channel Configuration (CC)
- Attach of USB Port Detection
- Cable Orientation Detection
- VBUS Detection
- Supply Voltage: 3.8 V to 5.5 V
- Low Current Consumption
- 2 x 2 mm WSON Package with 0.5 mm Pitch
- Industrial Temperature Range of –40°C to 85°C
2 Applications
- Wall-charger
- Automotive Car Charger, USB Port
- DFP Port for Desktop, Notebooks, All-in-One
3 Description
The TUSB319-Q1 is a USB Type-C Downstream Facing Port (DFP) controller. The TUSB319-Q1 monitors the USB Type-C Configuration Channel (CC) lines to determine when an USB device is attached. If an Upstream Facing Port (UFP) device is attached, the TUSB319-Q1 drives an open drain output ID that can be used in the system to apply VBUS power. The device also communicates the selectable VBUS current sourcing capability to the UFP via the CC lines.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TUSB319-Q1 | WSON (8) | 2.00 mm x 2.00 mm 0.5 mm pitch |
- For all available packages, see the orderable addendum at the end of the data sheet.
SPACER
SPACER

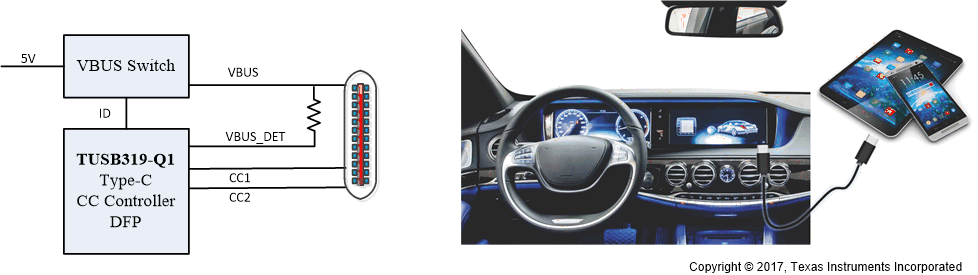

Simplified Schematic
