SBVS340 June 2017 TPS715A-NM
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Detailed Description
- 7 Application and Implementation
- 8 Power Supply Recommendations
- 9 Layout
- 10Device and Documentation Support
- 11Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- DRB|8
散熱焊盤機械數據 (封裝 | 引腳)
- DRB|8
訂購信息
1 Features
- 24-V Maximum Input Voltage
- Low 3.2-μA Quiescent Current at 80 mA
- Stable With Any Capacitor (≥ 0.47 μF)
- 80-mA Specified Current
- Available in Fixed and Adjustable (1.2 V to 15 V) Versions
- Specified Current Limit
- 3-mm × 3-mm and 2-mm × 2-mm SON Packages
- –40°C to 125°C Specified Junction
Temperature Range - For MSP430-Specific Output Voltages See TPS715xx
2 Applications
- Ultralow Power Microcontrollers
- Industrial and Automotive Applications
- Video Surveillance and Security Systems
- Portable, Battery-Powered Equipment
- Medical Imaging
3 Description
The TPS715A-NM low-dropout (LDO) voltage regulators offer the benefits of high input voltage, low-dropout voltage, low-power operation, and miniaturized packaging. The devices operate over an input range of 2.5 V to 24 V and are stable with any capacitor (≥ 0.47 μF). The high maximum input voltage combined with excellent power dissipation capability makes this device particularly well-suited to industrial and automotive applications.
A PMOS pass element functions as a low-value resistor. The low dropout voltage, typically 670 mV at 80 mA of load current, is directly proportional to the load current. The low quiescent current (3.2 μA typically) is nearly constant over the entire range of output load current (0 mA to 80 mA).
The TPS715A-NM is available in a 3-mm × 3-mm package ideal for high power dissipation and a small 2-mm × 2-mm package ideal for handheld and ultra-portable applications. The 3-mm × 3-mm package is also available as a non-magnetic package for medical imaging applications.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS715A-NM | SON (8), DRB | 3.00 mm × 3.00 mm |
| SON (6), DRV | 2.00 mm × 2.00 mm |
- For all available packages, see the orderable addendum at the end of the data sheet.

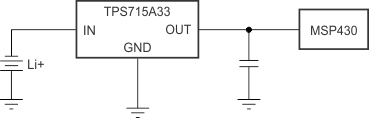

Typical Application Schematic
