1 Features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption, 80-μA Maximum ICC
- Typical tpd = 20 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1-μA Maximum
- AND-Gated (Enable/Disable) Serial Inputs
- Fully Buffered Clock and Serial Inputs
- Direct Clear
-
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
2 Applications
- Programable Logic Controllers
- Appliances
- Video Display Systems
- Output Expander
3 Description
These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum set-up time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74HC164 | SOIC (14) | 8.65 mm × 3.91 mm |
| PDIP (14) | 19.30 mm × 6.35 mm | |
| SO (14) | 10.30 mm × 5.30 mm | |
| TSSOP (14) | 5.00 mm × 4.40 mm | |
| SN54HC164 | CDIP (14) | 19.94 mm × 6.92 mm |
| CFP (14) | 9.21 mm × 6.29 mm | |
| LCCC (14) | 9.39 mm × 9.39 mm |
- For all available packages, see the orderable addendum at the end of the data sheet.

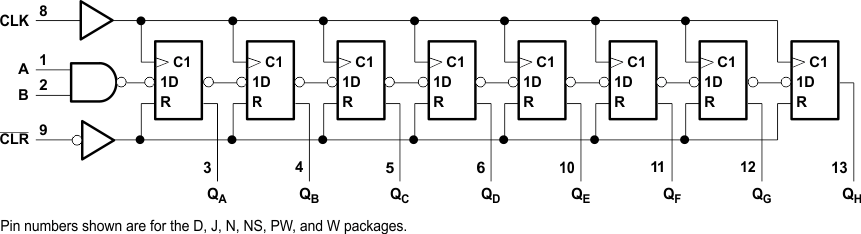

Logic Diagram (Positive Logic)
