SLVAEF0 September 2020 – MONTH TPS92630-Q1 , TPS92638-Q1
4 Implementation Results

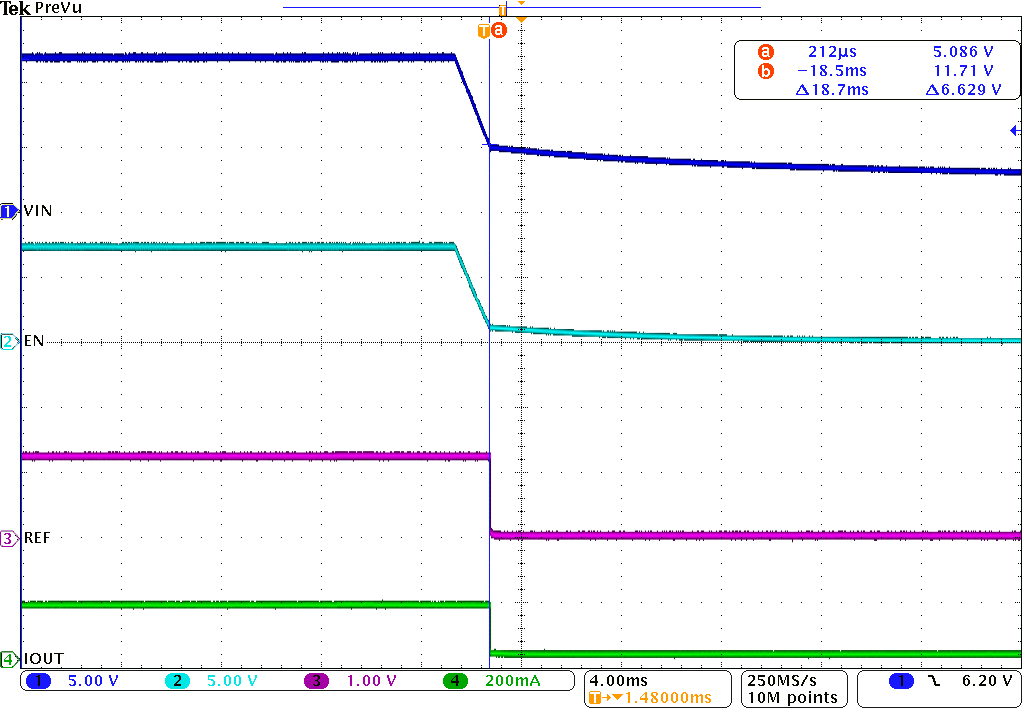

The application results with the recommended circuit implemented is shown in Figure 4-1. It can be seen that when V(supply) decreases to around 5 V, REF drops to 0 immediately, which indicates that the device is shut down.
Figure 4-1 Application Curve
