7.1 Load Circuit and Voltage Waveforms
Unless otherwise noted, generators supply all input pulses that have the following characteristics:
- f = 1 MHz
- ZO = 50 Ω
- Δt/ΔV ≤ 1 ns/V
- CL includes probe and jig capacitance.

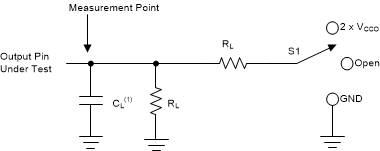

Table 7-1 Load Circuit
Conditions
| Parameter | VCCO | RL | CL | S1 | VTP | |
|---|---|---|---|---|---|---|
| tpd | Propagation (delay) time | 1.1 V – 5.5 V | 10 kΩ | 5 pF | Open | N/A |
| ten, tdis | Enable time, disable time | 1.1 V – 1.6 V | 10 kΩ | 5 pF | 2 × VCCO | 0.1 V |
| 1.65 V – 2.7 V | 10 kΩ | 5 pF | 2 × VCCO | 0.15 V | ||
| 3.0 V – 5.5 V | 10 kΩ | 5 pF | 2 × VCCO | 0.3 V | ||
| ten, tdis | Enable time, disable time | 1.1 V – 1.6 V | 10 kΩ | 5 pF | GND | 0.1 V |
| 1.65 V – 2.7 V | 10 kΩ | 5 pF | GND | 0.15 V | ||
| 3.0 V – 5.5 V | 10 kΩ | 5 pF | GND | 0.3 V | ||

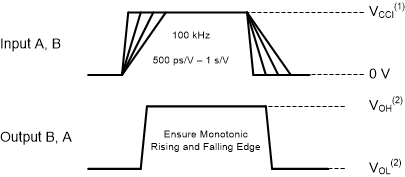

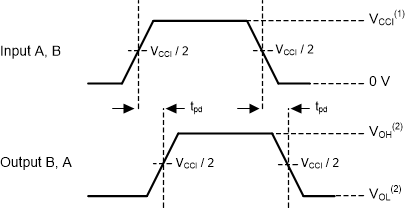

- VCCI is the supply pin associated with the input port.
- VOH and VOL are typical output voltage levels that occur with specified RL, CL, and S1
- VCCI is the supply pin associated with the input port.
- VOH and VOL are typical output voltage levels that occur with specified RL, CL, and S1

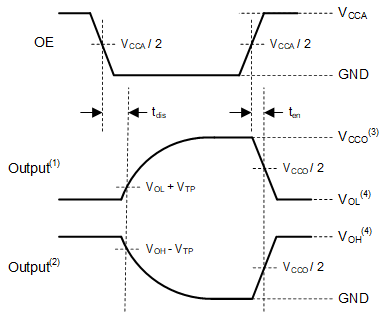

- Output waveform on the condition that input is driven to a valid Logic Low.
- Output waveform on the condition that input is driven to a valid Logic High.
- VCCO is the supply pin associated with the output port.
- VOH and VOL are typical output voltage levels with specified RL, CL, and S1.
