8.7 Typical Characteristics

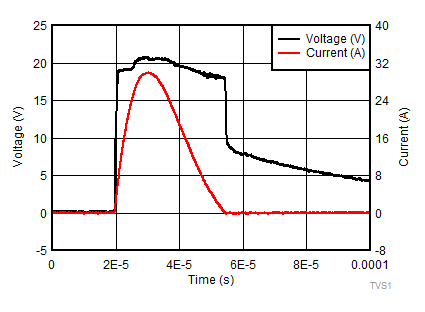

Figure 8-1 8/20 μs Surge Response at 30 A
| f = 1 MHz, 30 mVpp, IO to GND |

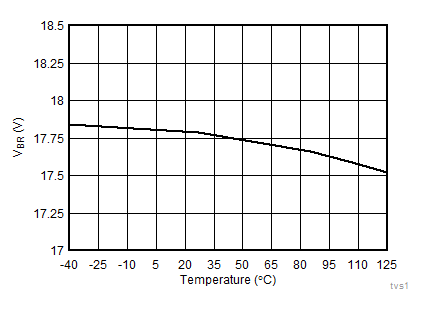

Figure 8-5 Breakdown Voltage (1 mA) vs Temperature

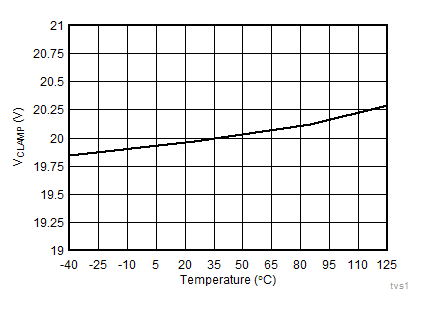

Figure 8-2 8/20 μs Surge Clamping Response at 30 A

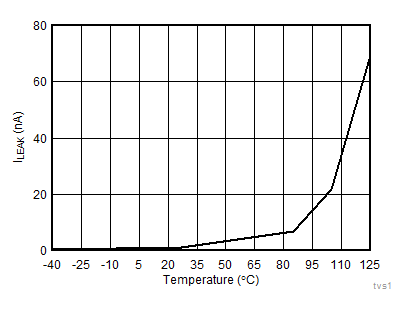

Figure 8-4 Leakage Current vs Temperature at ±14 V

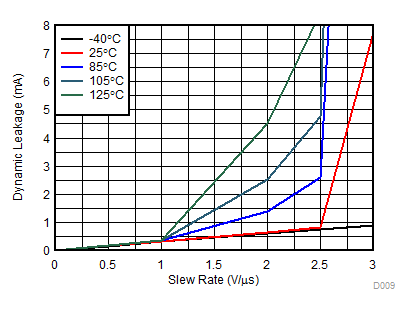

Figure 8-6 Dynamic Leakage vs Signal Slew Rate across Temperature
