7 Parameter Measurement Information
Figure 14. Switching Times

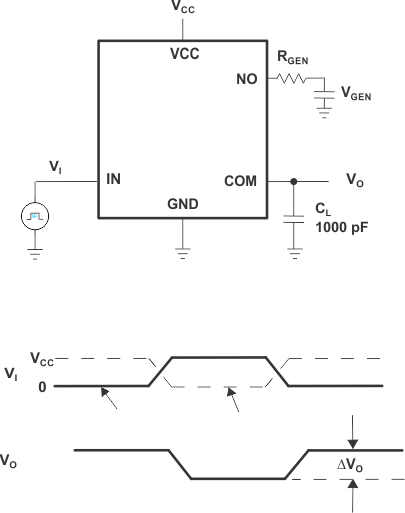

Figure 15. Charge Injection (QC)

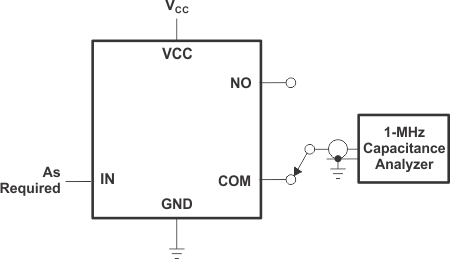

Figure 16. NO and COM Capacitance

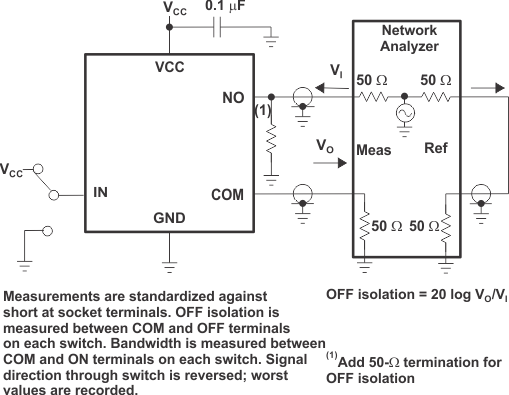

Figure 17. OFF Isolation, Bandwidth, and Crosstalk
A. CL includes probe and jig capacitance.

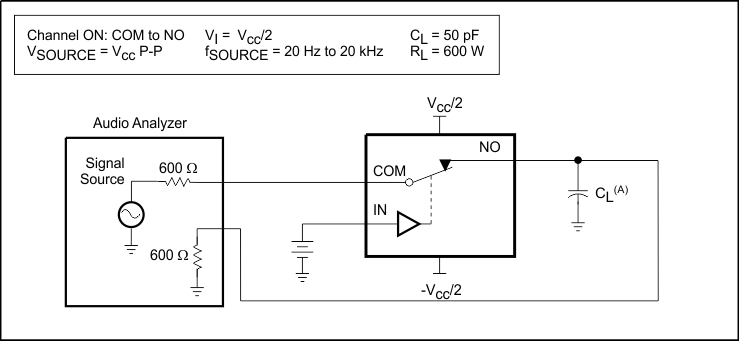

Figure 18. Total Harmonic Distortion (THD)
