7.3.3 Setable VO Operation (VSET and Internal Voltage Divider)
If the device is configured to VSET operation, VO is sensed only through the internal VOS connection by an internal resistor divider. The target VO is programmed by an external resistor connected between the VSET pin and GND. Figure 7-3 shows the typical schematic for this configuration.

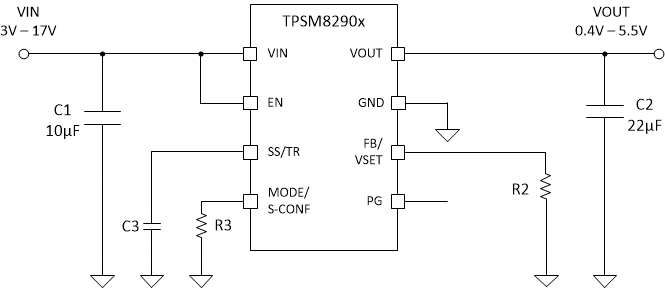

Figure 7-3 Setable VO
Operation SchematicTable 7-3 VSET Selection Table
| # | Resistor Value [Ω] | Target VO [V] |
|---|---|---|
| 1 | GND | 1.2 |
| 2 | 4.64 k | 0.4 |
| 3 | 5.76 k | 0.6 |
| 4 | 7.15 k | 0.8 |
| 5 | 8.87 k | 1.0 |
| 6 | 11.0 k | 1.1 |
| 7 | 13.7 k | 1.3 |
| 8 | 16.9 k | 1.35 |
| 9 | 21.0 k | 1.8 |
| 10 | 26.1 k | 1.9 |
| 11 | 40.2 k | 2.5 |
| 12 | 61.9 k | 3.8 |
| 13 | 76.8 k | 5.0 |
| 14 | 95.3 k | 5.1 |
| 15 | 118.0 k | 5.5 |
| 16 | 249.00 k or larger/Open | 3.3 |
