SBVS083E January 2007 – January 2015 TPS780

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

DDC|5
- MPDS123G
DRV|6
- MPDS216E

散熱焊盤機械數據 (封裝 | 引腳)

DRV|6
- QFND087M

訂購信息

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) ⁽¹⁾

		MIN	MAX	UNIT
Voltage	V_IN	–0.3	+6.0	V
	V_EN and V_VSET	–0.3	V_IN + 0.3⁽²⁾
	V_OUT	–0.3	V_IN + 0.3
Current	I_OUT	Internally limited
Output short-circuit duration		Indefinite
Total continuous power dissipation, P_DISS		See Thermal Information
Temperature	Operating junction, T_J	–40	125	°C
Temperature	Storage, T_stg	–55	150	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) V_EN and V_VSET absolute maximum rating are V_IN + 0.3V or +6.0V, whichever is less.

6.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins⁽¹⁾	±2000	V
V_(ESD)	Electrostatic discharge	Charged device model (CDM), per JEDEC specification JESD22-C101, all pins⁽²⁾	±500	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating junction temperature range (unless otherwise noted)

		MIN	MAX	UNIT
V_IN	Input voltage	2.2	5.5	V
V_OUT	Output voltage	1.8	4.2	V
V_EN	Enable voltage	0	V_IN	V
I_OUT	Output current	0	150	mA
T_J	Junction temperature	–40	125	°C

6.4 Thermal Information

THERMAL METRIC⁽¹⁾		TPS780xx		UNIT
		DDC	DRV
		5 PINS	6 PINS
R_θJA	Junction-to-ambient thermal resistance	193.0	65.9	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	40.1	87.3
R_θJB	Junction-to-board thermal resistance	34.3	35.4
ψ_JT	Junction-to-top characterization parameter	0.9	1.7
ψ_JB	Junction-to-board characterization parameter	34.1	35.8
R_θJC(bot)	Junction-to-case (bottom) thermal resistance	N/A	6.1

(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

Over operating temperature range (T_J = –40°C to 125°C), V_IN = V_OUT(nom) + 0.5 V or 2.2 V, whichever is greater; I_OUT = 100 μA, V_VSET = V_EN = V_IN, C_OUT = 1.0 μF, fixed or adjustable, unless otherwise noted. Typical values at T_J = 25°C.

PARAMETER			TEST CONDITIONS		MIN	TYP	MAX	UNIT
V_IN	Input voltage range				2.2		5.5	V
V_OUT⁽¹⁾	DC output accuracy	Nominal	T_J = 25°C, V_SET = high/low		–2%	±1%	+2%
V_OUT⁽¹⁾	DC output accuracy	Over V_IN, I_OUT, temperature	V_OUT(nom) + 0.5 V ≤ V_IN ≤ 5.5 V, 0 mA ≤ I_OUT ≤ 150 mA, V_SET = high/low		–3.0%	±2.0%	+3.0%
V_FB	Internal reference⁽⁹⁾ (adjustable version only)		T_J = 25°C, V_IN = 4.0 V, I_OUT = 75 mA			1.216		V
V_{OUT_RANGE}	Output voltage range⁽²⁾⁽³⁾ (adjustable version only)		V_IN = 5.5 V, I_OUT = 100 μA⁽⁹⁾		V_FB	5.25		V
ΔV_OUT(ΔVIN)	Line regulation		V_OUT(nom) + 0.5 V ≤ V_IN ≤ 5.5 V, I_OUT = 5 mA		–1%		+1%
ΔV_OUT(ΔIOUT)	Load regulation		0 mA ≤ I_OUT ≤ 150 mA		–2%		+2%
V_DO	Dropout voltage⁽⁴⁾		V_IN = 95% V_OUT(nom), I_OUT = 150 mA				250	mV
V_n	Output noise voltage		BW = 100 Hz to 100 kHz, V_IN = 2.2 V, V_OUT = 1.2 V, I_OUT = 1 mA			86		μV_RMS
V_HI	V_SET high (output V_OUT(LO) selected), or EN high (enabled)				1.2		V_IN	V
V_LO	V_SET low (output V_OUT(HI) selected), or EN low (disabled)				0		0.4	V
I_CL	Output current limit		V_OUT = 0.90 × V_OUT(nom)		150	230	400	mA
I_GND	Ground pin current		I_OUT = 0 mA⁽⁵⁾			420	800	nA
I_GND	Ground pin current		I_OUT = 150 mA			5		μA
I_SHDN	Shutdown current (I_GND)		V_EN ≤ 0.4 V, 2.2 V ≤ V_IN < 5.5 V, T_J = –40°C to 100°C			18	130	nA
I_VSET	V_SET pin current		V_EN = V_VSET = 5.5 V				70	nA
I_EN	EN pin current		V_EN = V_VSET = 5.5 V				40	nA
I_FB	FB pin current⁽¹⁰⁾ (Adjustable version only)		V_IN = 5.5 V, V_OUT = 1.2 V, I_OUT = 100 μA				10	nA
PSRR	Power-supply rejection ratio		V_IN = 4.3 V, V_OUT = 3.3 V, I_OUT = 150 mA	f = 10 Hz		40		dB
				f = 100 Hz		20
				f = 1kHz		15
t_TR(H→L)	V_OUT transition time (high-to-low) V_OUT = 97% × V_OUT(HI)		V_{OUT_LOW} = 2.2 V, V_OUT(HI) = 3.3 V, I_OUT = 10 mA			800		μs
t_TR(L→H)	V_OUT transition time (low-to-high) V_OUT = 97% × V_OUT(LO)		V_{OUT_HIGH} = 3.3 V, V_OUT(LO) = 2.2 V, I_OUT = 10 mA			800		μs
t_STR	Start-up time⁽⁶⁾		C_OUT = 1.0 μF, V_OUT = 10% V_OUT(nom) to V_OUT = 90% V_OUT(nom)			500		μs
t_SHDN	Shutdown time⁽⁷⁾		I_OUT = 150 mA, C_OUT = 1.0 μF, V_OUT = 2.8 V, V_OUT = 90% V_OUT(nom) to V_OUT = 10% V_OUT(nom)			500⁽⁸⁾		μs
T_SD	Thermal shutdown temperature		Shutdown, temperature increasing			160		°C
T_SD	Thermal shutdown temperature		Reset, temperature decreasing			140		°C
T_J	Operating junction temperature				–40		125	°C

(1) The output voltage for V_SET = low/high is programmed at the factory.

(2) No V_SET pin on the adjustable version.

(3) No dynamic voltage scaling on the adjustable version.

(4) V_DO is not measured for devices with V_OUT(nom) < 2.3 V because minimum V_IN = 2.2 V.

(5) I_GND = 800 nA (max) up to 100°C.

(6) Time from V_EN = 1.2 V to V_OUT = 90% (V_OUT(nom)).

(7) Time from V_EN = 0.4 V to V_OUT = 10% (V_OUT(nom)).

(8) See Shutdown for more details.

(9) Adjustable version only.

(10) The TPS78001 FB pin is tied to V_OUT. Adjustable version only.

6.6 Typical Characteristics

Over the operating temperature range of T_J = –40°C to 125°C, V_IN = V_OUT(nom) + 0.5 V or 2.2 V, whichever is greater; I_OUT = 100 μA, V_EN = V_VSET = V_IN, C_OUT = 1 μF, and C_IN = 1 μF, unless otherwise noted.

I_OUT = 5 mA

V_OUT(nom) = 1.22 V

Figure 1. TPS78001 Line Regulation

I_OUT = 150 mA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

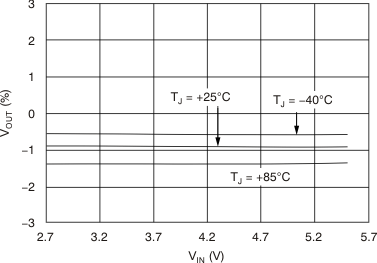

Figure 3. TPS780330220 Line Regulation

I_OUT = 150 mA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

Figure 5. TPS780330220 Line Regulation

V_VSET = 1.2 V

V_IN = 2.7 V

V_OUT(nom) = 2.2 V

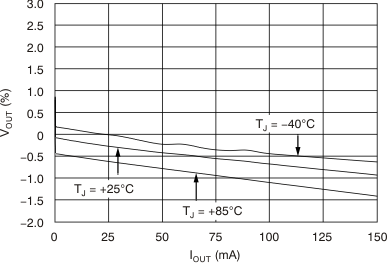

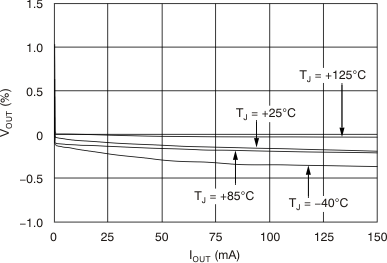

Figure 7. TPS780330220 Load Regulation

V_OUT(nom) = 3.3 V

V_IN = 0.95 × V_OUT(nom)

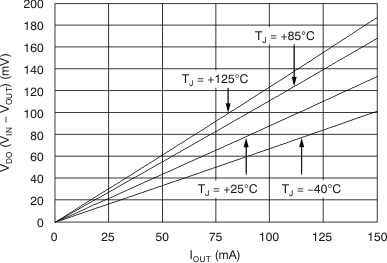

Figure 9. TPS78001 Dropout Voltage vs Output Current

V_OUT(nom) = 3.3

V_IN = 0.95 × V_OUT(nom)

Figure 11. TPS78001 Dropout Voltage vs Temperature

I_OUT = 50 mA

V_OUT(nom) = 1.22 V

Figure 13. TPS78001 Ground Pin Current vs Input Voltage

I_OUT = 0 mA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

Figure 15. TPS780330220 Ground Pin Current vs Input Voltage

I_OUT = 50 mA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

Figure 17. TPS780330220 Ground Pin Current vs Input Voltage

I_OUT = 0 mA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

Figure 19. TPS780330220 Ground Pin Current vs Input Voltage

I_OUT = 50 mA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

Figure 21. TPS780330220 Ground Pin Current vs Input Voltage

V_VSET = 1.2 V

V_IN = 5.5 V

V_OUT(nom) = 2.2 V

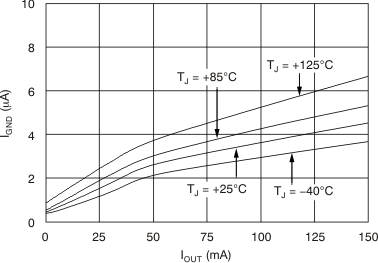

Figure 23. TPS780330220 Ground Pin Current vs Output Current

I_OUT = 0 mA

V_VSET = 0.4 V

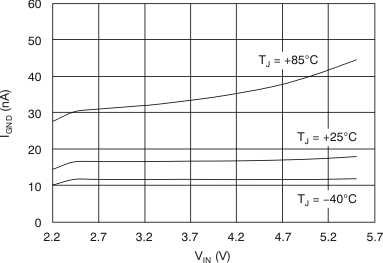

Figure 25. TPS78001 Shutdown Current vs Input Voltage

V_VSET = 1.2 V

V_OUT = 95% V_OUT(nom)

V_OUT(nom) = 2.2 V

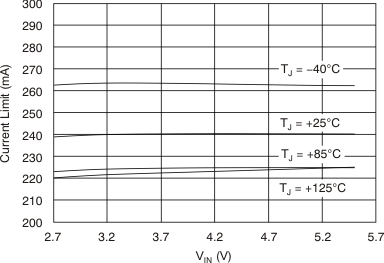

Figure 27. TPS780330220 Current Limit vs Input Voltage

I_OUT = 0 mA

V_OUT(nom) = 1.22 V

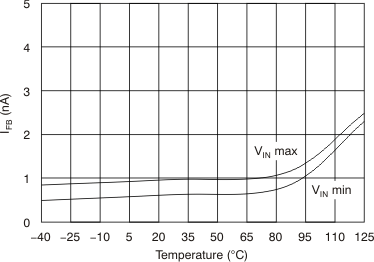

Figure 29. TPS78001 Feedback Pin Current vs Temperature

I_OUT = 100 μA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

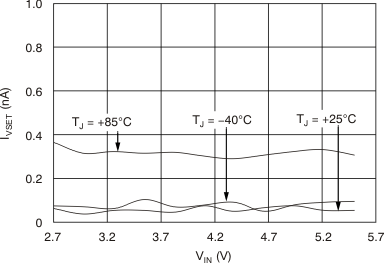

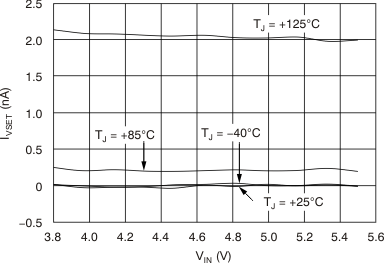

Figure 31. TPS780330220 V_SET Pin Current vs Input Voltage

I_OUT = 100 μA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

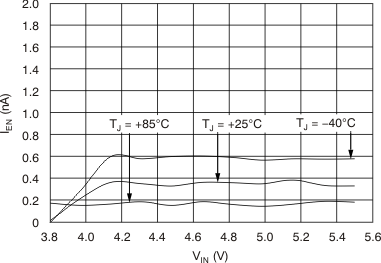

Figure 33. TPS780330220 Enable Pin Current vs Input Voltage

I_OUT = 1 mA

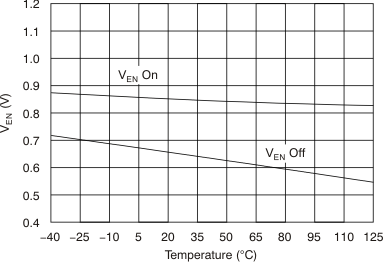

Figure 35. TPS78001 Enable Pin Hysteresis vs Temperature

I_OUT = 1 mA

V_IN = 3.8 V

V_OUT(nom) = 3.3 V

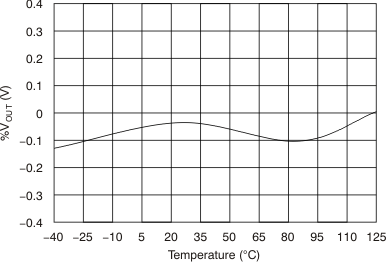

Figure 37. TPS78001 %ΔV_OUT vs Temperature

V_VSET = 0.4 V

V_IN = 3.8 V

V_OUT(nom) = 3.3 V

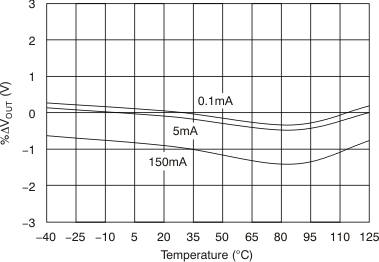

Figure 39. TPS780330220 %ΔV_OUT vs Temperature

V_IN = 2.7 V

V_OUT = 1.2 V

C_OUT = 2.2 μF

Figure 41. TPS78001 Ripple Rejection vs Frequency

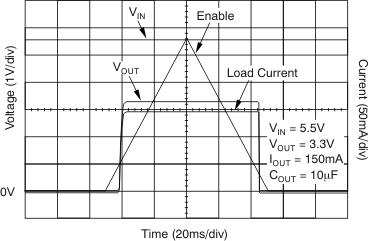

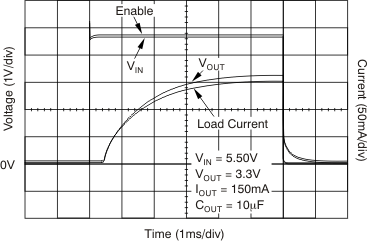

Figure 43. TPS780330220 Output Voltage vs Enable (Slow Ramp)

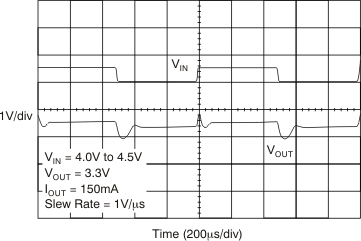

Figure 45. TPS780330220 Line Transient Response

Figure 47. TPS780330220 Load Transient Response

Figure 49. TPS780330220 Enable Pin vs Output Voltage Response and Output Current

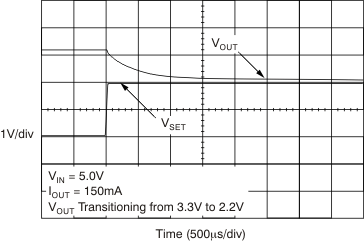

Figure 51. TPS780330220 VSET Pin Toggle

Figure 53. TPS780330220 VSET Pin Toggle (Slow Ramp)

I_OUT = 5 mA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

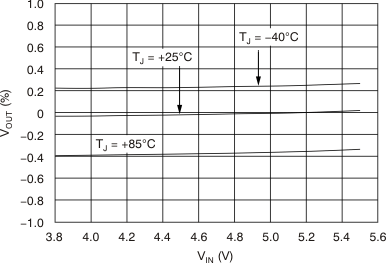

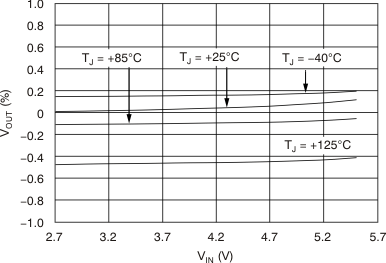

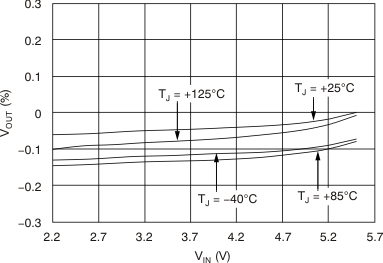

Figure 2. TPS780330220 Line Regulation

I_OUT = 5 mA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

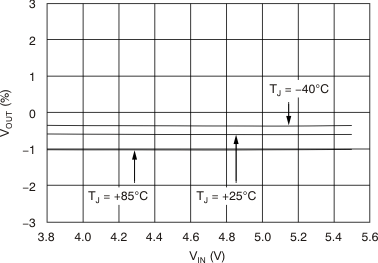

Figure 4. TPS780330220 Line Regulation

V_OUT(nom) = 3.3 V

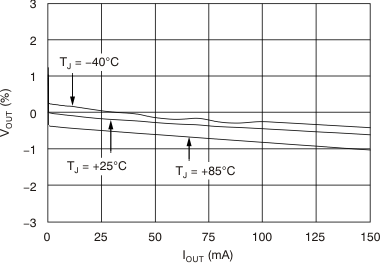

Figure 6. TPS78001 Load Regulation

V_VSET = 0.4 V

V_IN = 3.8 V

V_OUT(nom) = 3.3 V

Figure 8. TPS780330220 Load Regulation

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

V_IN = 0.95 × V_OUT(nom)

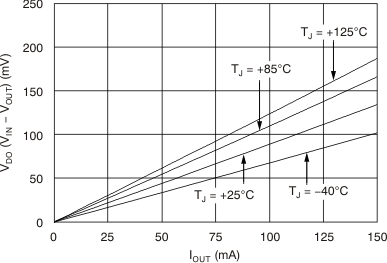

Figure 10. TPS780330220 Dropout Voltage vs Output Current

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

V_IN = 0.95 × V_OUT(nom)

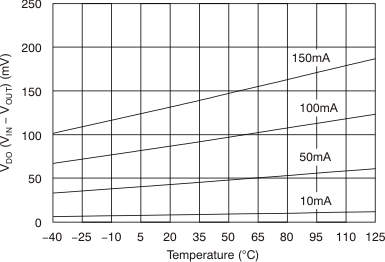

Figure 12. TPS780330220 Dropout Voltage vs Temperature

I_OUT = 150 mA

V_OUT(nom) = 1.22 V

Figure 14. TPS78001 Ground Pin Current vs Input Voltage

I_OUT = 1 mA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

Figure 16. TPS780330220 Ground Pin Current vs Input Voltage

I_OUT = 150 mA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

Figure 18. TPS780330220 Ground Pin Current vs Input Voltage

I_OUT = 1 mA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

Figure 20. TPS780330220 Ground Pin Current vs Input Voltage

I_OUT = 150 mA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

Figure 22. TPS780330220 Ground Pin Current vs Input Voltage

V_VSET = 0.4 V

V_IN = 5.5 V

V_OUT(nom) = 3.3 V

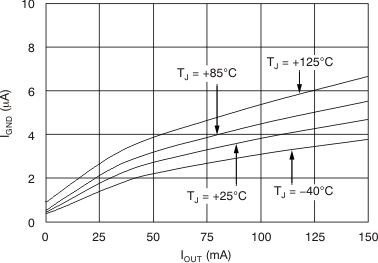

Figure 24. TPS780330220 Ground Pin Current vs Output Current

V_OUT = 90% V_OUT(nom)

V_OUT(nom) = 1.22 V

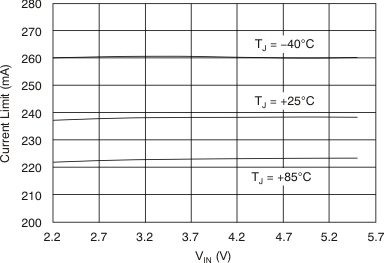

Figure 26. TPS78001 Current Limit vs Input Voltage

V_VSET = 0.4 V

V_OUT = 95% V_OUT(nom)

V_OUT(nom) = 3.3 V

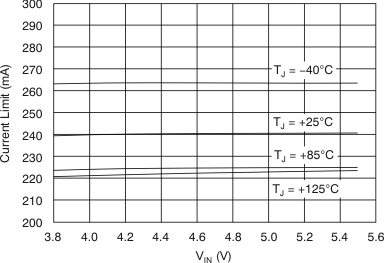

Figure 28. TPS780330220 Current Limit vs Input Voltage

I_OUT = 100 μA

V_VSET = 1.2 V

V_OUT(nom) = 2.2 V

Figure 30. TPS780330220 V_SET Pin Current vs Input Voltage

I_OUT = 1 mA

V_OUT(nom) = 1.22 V

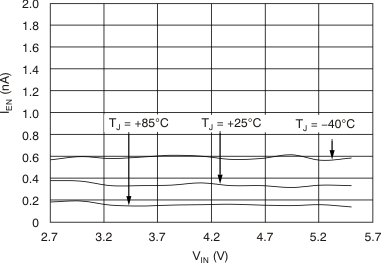

Figure 32. TPS78001 Enable Pin Current vs Input Voltage

I_OUT = 100 μA

V_VSET = 0.4 V

V_OUT(nom) = 3.3 V

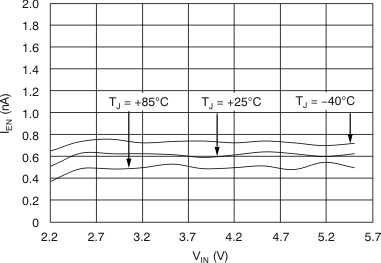

Figure 34. TPS780330220 Enable Pin Current vs Input Voltage

I_OUT = 1 mA

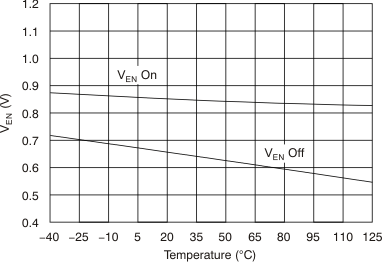

Figure 36. TPS780330220 Enable Pin Hysteresis vs Temperature

V_VSET = 1.2 V

V_IN = 2.7 V

V_OUT(nom) = 2.2 V

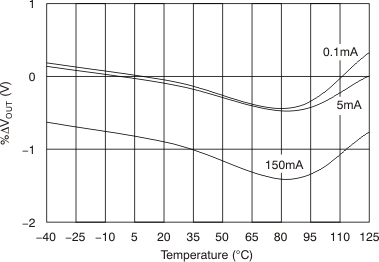

Figure 38. TPS780330220 %ΔV_OUT vs Temperature

C_IN = 1 μF	C_OUT = 2.2 μF	V_VSET = 1.2 V
V_IN = 2.7 V

Figure 40. TPS780330220 Output Spectral Noise Density vs Frequency

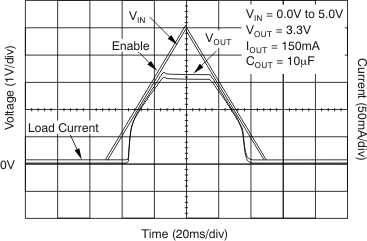

Figure 42. TPS780330220 Input Voltage Ramp vs Output Voltage

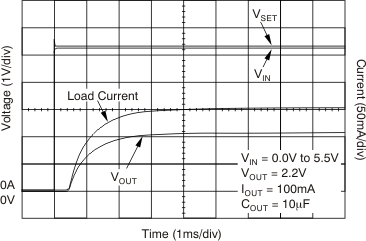

Figure 44. TPS780330220 Input Voltage vs Delay to Output

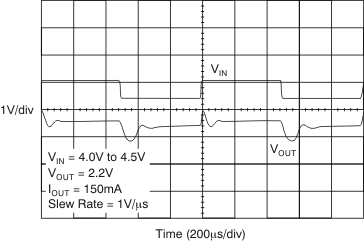

Figure 46. TPS780330220 Line Transient Response

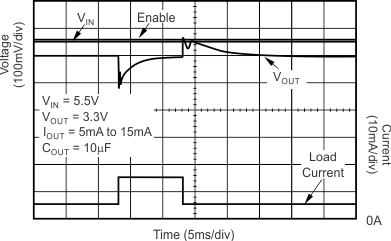

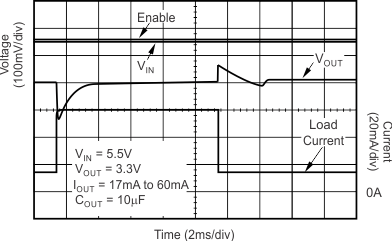

Figure 48. TPS780330220 Load Transient Response

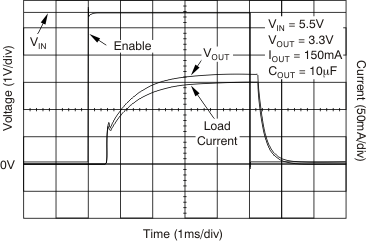

Figure 50. TPS780330220 Enable Pin vs Output Voltage Delay

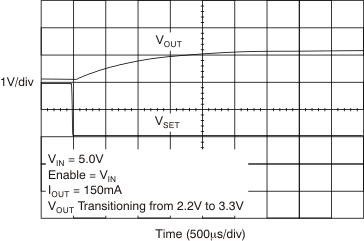

Figure 52. TPS780330220 VSET Pin Toggle
