8.2.3 Application Curves
TA = 25°C, VIN = 12 V, VOUT1 = 1.2 V, VOUT2 = 1.8 V, VOUT3 =
3.3 V, ?SW = 600 kHz (unless otherwise noted)
TA = 25°C, VIN = 12 V, VOUT1 = 1.2 V, VOUT2 = 1.8 V, VOUT3 =
3.3 V, ?SW = 600 kHz (unless otherwise noted)

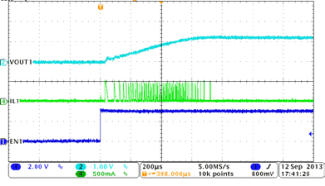

Figure 8-3 Buck1, Soft-Start With No Load. TA = 25°C, VIN = 12 V, VOUT1 = 1.2 V, VOUT2 = 1.8 V, VOUT3 =
3.3 V, ?SW = 600 kHz (unless otherwise noted)
Figure 8-3 Buck1, Soft-Start With No Load. TA = 25°C, VIN = 12 V, VOUT1 = 1.2 V, VOUT2 = 1.8 V, VOUT3 =
3.3 V, ?SW = 600 kHz (unless otherwise noted)

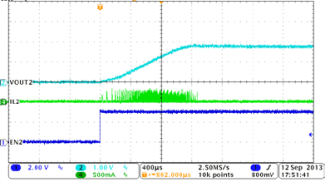

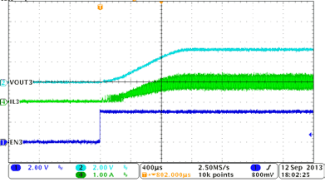

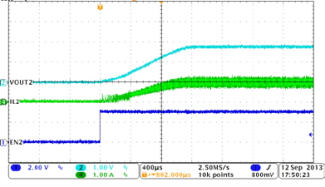

Figure 8-5 Buck2, Soft-Start With No Load

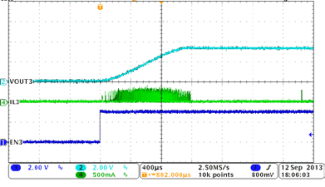

Figure 8-7 Buck3, Soft-Start With No Load

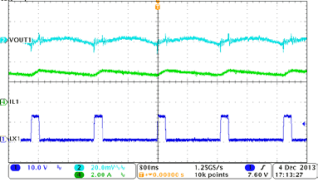

Figure 8-9 Buck1, Steady State Operation With Light Load

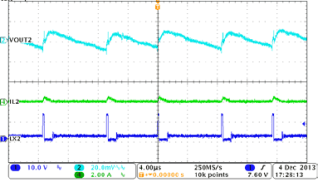

Figure 8-11 Buck2, Steady State Operation With Light Load

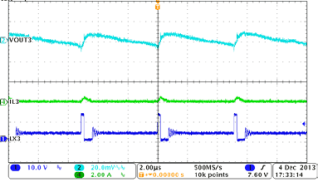

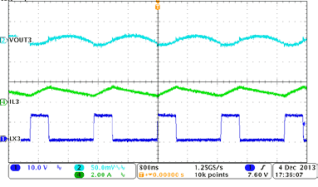

Figure 8-13 Buck3, Steady State Operation With Light Load

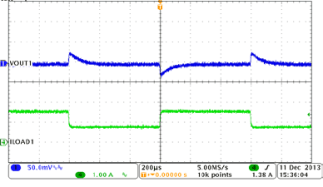

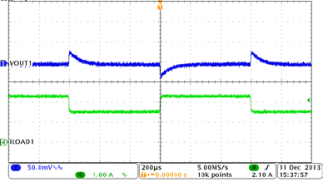

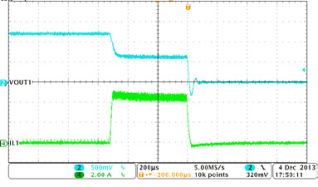

Figure 8-15 Buck1, Load Transient, 0.75 to 1.5 A SR = 0.25 A/μs

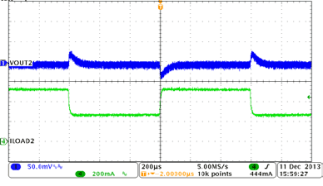

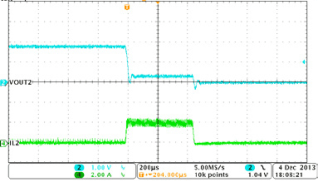

Figure 8-17 Buck2, Load Transient, 0.25 to 0.5 A SR = 0.25 A/μs

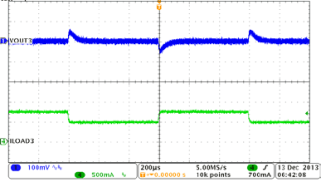

Figure 8-19 Buck3, Load Transient, 0.25 to 0.5 A SR = 0.25 A/μs
Figure 8-21 Buck1, Overcurrent Protection
Figure 8-23 Buck2, Overcurrent Protection

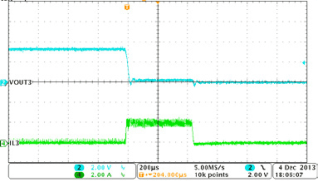

Figure 8-25 Buck3, Overcurrent Protection

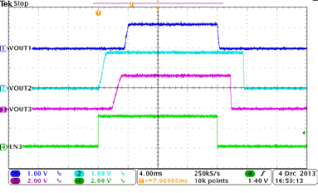

Figure 8-27 Automatic Power Sequencing, MODE = EN1 = EN2 = HIGH

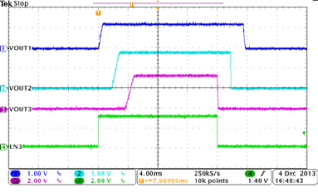

Figure 8-29 Automatic Power Sequencing, MODE = EN1 = HIGH, EN2 = LOW
Figure 8-31 Automatic Power Sequencing, MODE = EN2 = HIGH, EN1 = LOW
| Operating at VIN = 12 V | VOUT1 = 1.2 V/1.5 A | |
| VOUT3 = 3.3 V/0.5 A | VOUT2 = 1.8 V/0.5 A |

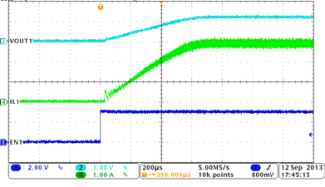

Figure 8-4 Buck1, Soft-Start With Full Load
Figure 8-6 Buck2, Soft-Start With Full Load
Figure 8-8 Buck3, Soft-Start With Full Load

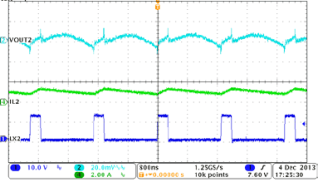

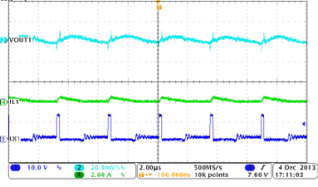

Figure 8-10 Buck1, Steady State Operation With Full Load
Figure 8-12 Buck2, Steady State Operation With Full Load
Figure 8-14 Buck3, Steady State Operation With Full Load
Figure 8-16 Buck1, Load Transient, 1.5 to 2.25 A SR = 0.25 A/μs

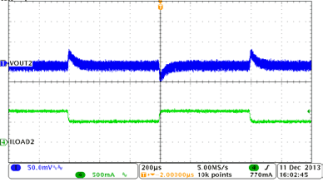

Figure 8-18 Buck2, Load Transient, 0.5 to 0.75 A SR = 0.25A/μs
Figure 8-20 Buck3, Load Transient, 0.5 to 0.75 A SR = 0.25A/μs

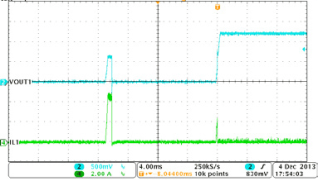

Figure 8-22 Buck1, Hiccup and Recovery

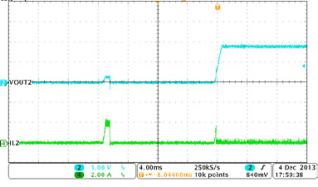

Figure 8-24 Buck2, Hiccup and Recovery

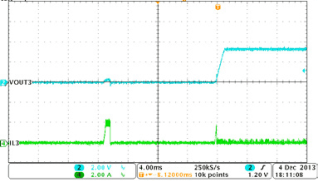

Figure 8-26 Buck3, Hiccup and Recovery

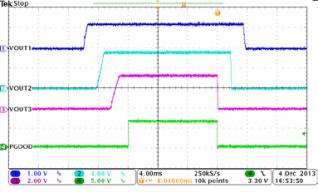

Figure 8-28 Automatic Power Sequencing, MODE = EN1 = EN2 = HIGH

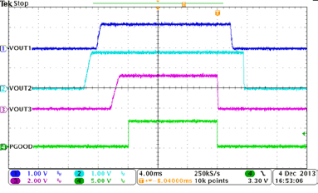

Figure 8-30 Automatic Power Sequencing, MODE = EN1 = HIGH, EN2 = LOW
Figure 8-32 Automatic Power Sequencing, MODE = EN2 = HIGH, EN1 = LOW
| Operating at VIN = 12 V | VOUT1 = 1.2 V/3 A | |
| VOUT3 = 3.3 V/1 A | VOUT2 = 1.8 V/1 A |
