1 Features

• 1.2-A, 97% Efficient Step-Down Converter for System Voltage (VDCDC1)
• 1-A, Up to 95% Efficient Step-Down Converter for Memory Voltage (VDCDC2)
• 900-mA, 90% Efficient Step-Down Converter for Processor Core (VDCDC3)
• 30-mA LDO and Switch for Real-Time Clock (VRTC)
• 2 × 200 mA General-Purpose LDO
• Dynamic Voltage Management for Processor Core
• Preselectable LDO Voltage Using Two Digital Input Pins
• Externally Adjustable Reset Delay Time
• Battery Backup Functionality
• Separate Enable Pins for Inductive Converters
• I²C Compatible Serial Interface
• 85-μA Quiescent Current
• Low Ripple PFM Mode
• Thermal Shutdown Protection

2 Applications

• PDA
• Cellular and Smart Phones
• Internet Audio Players
• Digital Still Cameras
• Digital Radio Players
• Split Supply TMS320™ DSP Family and μP Solutions:
  OMAP™1610, OMAP1710, OMAP330, XScale Bulverde, Samsung ARM-Based Processors, and so forth
• Intel® PXA270, and so forth

3 Description

The TPS65022 is an integrated Power Management IC for applications powered by one Li-Ion or Li-Polymer cell, and which require multiple power rails. The TPS65022 provides three highly efficient, step-down converters targeted at providing the core voltage, peripheral, I/O and memory rails in a processor based system.

All three step-down converters enter a low-power mode at light load for maximum efficiency across the widest possible range of load currents. The TPS65022 also integrates two general-purpose 200-mA LDO voltage regulators, which are enabled with an external input pin. Each LDO operates with an input voltage range between 1.5 V and 6.5 V, allowing them to be supplied from one of the step-down converters or directly from the battery.

The default output voltage of the LDOs can be digitally set to 4 different voltage combinations using the DEFLDO1 and DEFLDO2 pins.

The serial interface can be used for dynamic voltage scaling, masking interrupts, or for disabling, enabling, and setting the LDO output voltages. The interface is compatible with the Fast/Standard mode I²C specification, allowing transfers at up to 400 kHz. The TPS65022 is available in a 40-pin (RHA) VQFN package, and operates over a free-air temperature of –40°C to 85°C.

1. For all available packages, see the orderable addendum at the end of the data sheet.

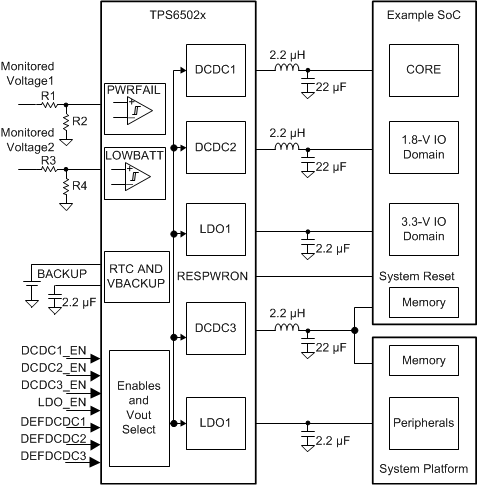

Simplified Schematic

4 Revision History

Changes from A Revision (July 2006) to B Revision

• Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section.Go
