1 Features

• 2.7-V to 18-V Input Voltage Range
• 26-V Open LED Protection (TPS61160)
• 38-V Open LED Protection (TPS61161)
• 200-mV Reference Voltage With ±2% Accuracy
• Flexible Digital and PWM Brightness Control
• Built-in Soft Start
• Up to 90% Efficiency

2 Applications

• Cellular Phones
• Portable Media Players
• Ultra Mobile Devices
• GPS Receivers
• White LED Backlighting for Media Form Factor Display

3 Description

With a 40-V rated integrated switch FET, the TPS61160 and TPS61161 are boost converters that drive LEDs in series. The boost converters run at 600-kHz fixed switching frequency to reduce output ripple, improve conversion efficiency, and allow for the use of small external components.

The default white LED current is set with the external sensor resistor R_SET, and the feedback voltage is regulated to 200 mV, as shown in the Typical Application. During the operation, the LED current can be controlled using the one-wire digital interface (EasyScale™ protocol) through the CTRL pin. Alternatively, a pulse width modulation (PWM) signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61160 and TPS61161 do not burst the LED current; therefore, they do not generate audible noises on the output capacitor. For maximum protection, the device features integrated open LED protection that disable the TPS61160 and/or TPS61161 to prevent the output voltage from exceeding the device's absolute maximum voltage ratings during open LED conditions.

The TPS61160 and TPS61161 are available in a space-saving, 2-mm × 2-mm WSON package with thermal pad.

1. For all available packages, see the orderable addendum at the end of the data sheet.

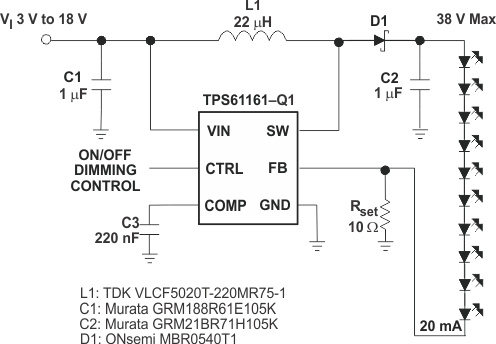

Typical Application
