5.6 Typical Characteristics
VIN = 12 V (unless otherwise noted)
Figure 5-1 TPS562201 Supply Current vs Junction Temperature

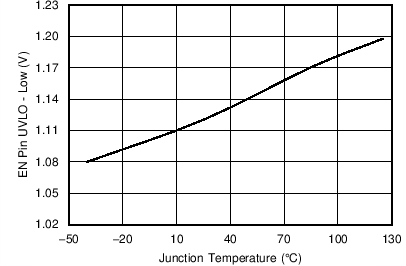

Figure 5-3 EN
Pin UVLO Low Voltage vs Junction Temperature

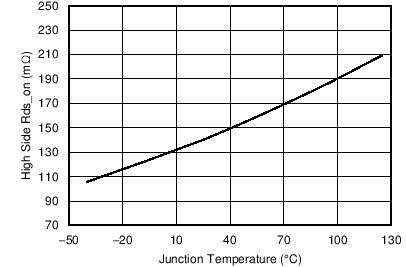

Figure 5-5 High-Side Rds-on vs Junction Temperature
| Iout = 2 A | ||
Figure 5-9 TPS562201 VOUT = 1.05 V Efficiency, L = 2.2 μH

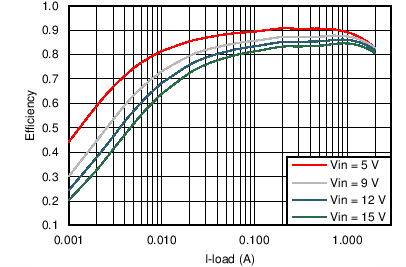

Figure 5-11 TPS562201 VOUT = 1.8 V Efficiency, L = 2.2 μH

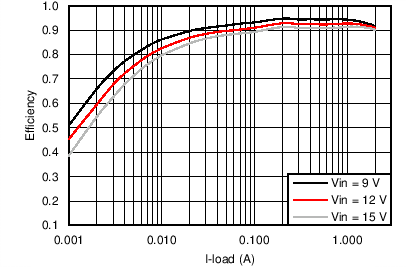

Figure 5-13 TPS562201 VOUT = 5 V Efficiency, L = 3.3 μH

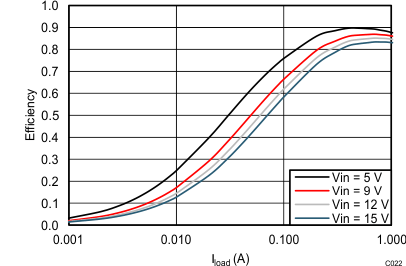

Figure 5-15 TPS562208 VOUT = 1.5 V Efficiency, L = 2.2 μH

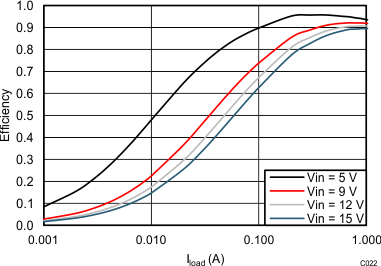

Figure 5-17 TPS562208 VOUT = 3.3 V Efficiency, L = 2.2 μH
Figure 5-2 VFB
Voltage vs Junction Temperature

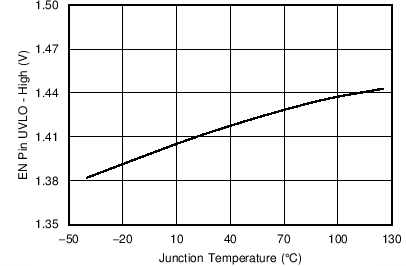

Figure 5-4 EN
Pin UVLO High Voltage vs Junction Temperature

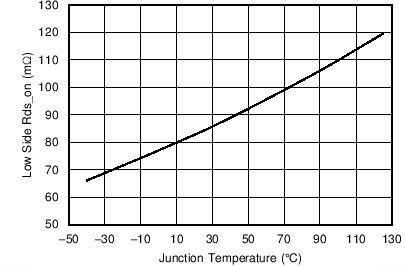

Figure 5-6 Low-Side Rds-on vs Junction Temperature
| VIN = 12 V | ||

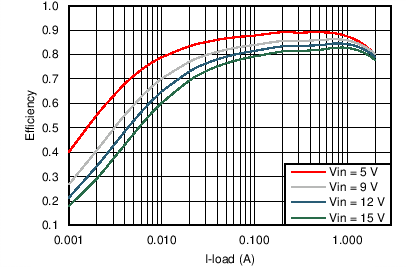

Figure 5-10 TPS562201 VOUT = 1.5 V Efficiency, L = 2.2 μH

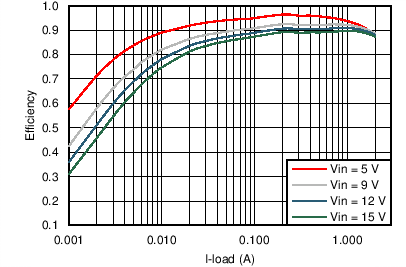

Figure 5-12 TPS562201 VOUT = 3.3 V Efficiency, L = 3.3 μH

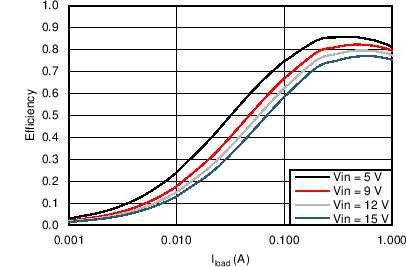

Figure 5-14 TPS562208 VOUT = 1.05 V Efficiency, L = 2.2 μH

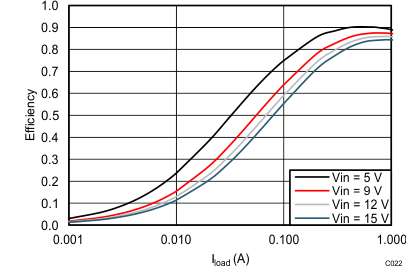

Figure 5-16 TPS562208 VOUT = 1.8 V Efficiency, L = 2.2 μH

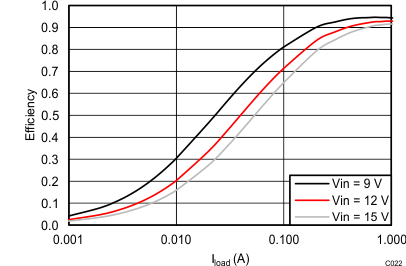

Figure 5-18 TPS562208 VOUT = 5 V Efficiency, L = 3.3 μH
