8.2 Typical Application
This section details a high-frequency, 1.2-V output power supply design application with adjusted UVLO.

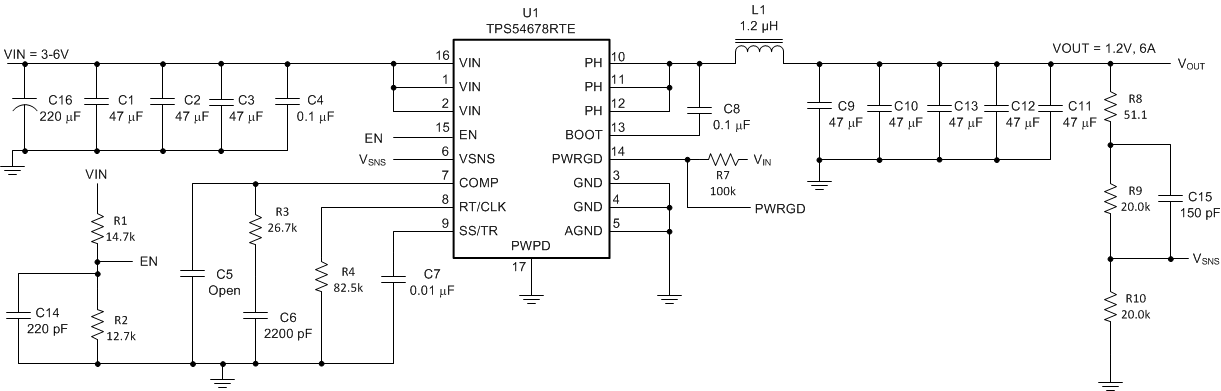

Figure 30. Typical Application Schematic, TPS54678
