SLLSE38B June 2010 – March 2016 TPD8E003
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
1 Features
- IEC 61000-4-2 Level 4 ESD Protection
- ±12-kV Contact Discharge
- ±15-kV Air-Gap Discharge
- IEC 61000-4-5 Surge Protection
- 3.5-A (8/20 µs)
- IO Capacitance: 9 pF (Typical)
- DC Breakdown Voltage: 6 V (Minimum)
- Low Leakage Current: 100 nA (Maximum)
- Industrial Temperature Range: –40ºC to 85ºC
- Space-Saving, Ultra-Thin, WSON Package
2 Applications
- End Equipment
- Laptops and Desktops
- IP Phones
- Interfaces
- Keypads
- GPIO Headers
- Touchscreens
- Low-Speed Memory Interfaces
3 Description
The TPD8E003 device is a unidirectional Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD8E003 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device provides 8 channels of ESD protection in a space-saving WSON package. Typical applications for the TPD8E003 include Keypad, GPIO, resistive touchscreen, and low-speed memory interfaces. Also, see the TPD2E2U06 and TPD4E05U06 for 2- and
4-channel ESD protection solutions, respectively.
Device Information(1)
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPD8E003 | WSON (8) | 1.70 mm × 1.35 mm |
- For all available packages, see the orderable addendum at the end of the data sheet.

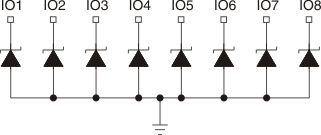

Simplified Circuit Schematic
