ZHCSGS3 April 2017 TPD2S300
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3
Feature Description
- 7.3.1 2-Channels of Short-to-VBUS Overvoltage Protection (CC1, CC2 Pins): 24-VDC Tolerant
- 7.3.2 2-Channels of IEC61000-4-2 ESD Protection (CC1, CC2 Pins)
- 7.3.3 Low Quiescent Current: 3.23 µA (Typical), VPWR, VM = 3.3 V
- 7.3.4 CC1, CC2 Overvoltage Protection FETs 200 mA Capable for Passing VCONN Power
- 7.3.5 CC Dead Battery Resistors Integrated for Handling Dead Battery Use Case in Mobile Devices
- 7.3.6 1.4-mm × 1.4-mm WCSP Package
- 7.4 Device Functional Modes
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械、封裝和可訂購信息
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)| MIN | MAX | UNIT | |||
|---|---|---|---|---|---|
| VI | Input voltage | VPWR | –0.3 | 5.5 | V |
| VM | –0.3 | 28 | V | ||
| VO | Output voltage | FLT | –0.3 | 6 | V |
| VBIAS | –0.3 | 24 | V | ||
| VIO | I/O voltage | CC1, CC2 | –0.3 | 6 | V |
| C_CC1, C_CC2 | –0.3 | 24 | V | ||
| TA | Operating free air temperature | –40 | 85 | °C | |
| TJ | Operating junction temperature | –40 | 105 | °C | |
| Tstg | Storage temperature | –65 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6.2 ESD Ratings—JEDEC Specification
| VALUE | UNIT | ||||
|---|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) | ±2000 | V | |
| Charged-device model (CDM), per JEDEC specification JESD22-C101(2) | ±500 | ||||
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Pins listed as ±2000 V may actually have higher performance.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Pins listed as ±500 V may actually have higher performance.
6.3 ESD Ratings—IEC Specification
| VALUE | UNIT | ||||
|---|---|---|---|---|---|
| V(ESD) | Electrostatic discharge | IEC 61000-4-2, C_CC1, C_CC2 | Contact discharge | ±8000 | V |
| Air-gap discharge | ±15000 | ||||
6.4 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| VI | Input voltage | VPWR | 2.7 | 3.3 | 4.5 | V |
| VM | 2.7 | 22 | V | |||
| VO | Output voltage | FLT Pull-up resistor power rail | 2.7 | 5.5 | V | |
| VIO | I/O voltage | CC1, CC2, C_CC1, C_CC2 | 0 | 5.5 | V | |
| IVCONN | VCONN current | Current flowing from CCx to C_CCx | 200 | mA | ||
| External components(1) | FLT Pull-up resistance | 1.7 | 300 | kΩ | ||
| VBIAS capacitance(2) | 0.1 | µF | ||||
| VPWR capacitance, VM capacitance | 0.3 | 1 | µF | |||
(1) For recommended values for capacitors and resistors, the typical values assume a component placed on the board near the pin. Minimum and maximum values listed are inclusive of manufacturing tolerances, voltage derating, board capacitance, and temperature variation. The effective value presented must be within the minimum and maximums listed in the table.
(2) The VBIAS pin requires a minimum 35-VDC rated capacitor. A 50-VDC rated capacitor is recommended to reduce capacitance derating. See the VBIAS Capacitor Selection section for more details on VBIAS capacitor selection.
6.5 Thermal Information
| THERMAL METRIC(1) | TPD2S300 | UNIT | |
|---|---|---|---|
| YFF (WCSP) | |||
| 9 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 107.5 | °C/W |
| RθJC(top) | Junction-to-case (top) thermal resistance | 0.9 | °C/W |
| RθJB | Junction-to-board thermal resistance | 28.1 | °C/W |
| ψJT | Junction-to-top characterization parameter | 0.5 | °C/W |
| ψJB | Junction-to-board characterization parameter | 28.2 | °C/W |
| RθJC(bot) | Junction-to-case (bottom) thermal resistance | N/A | °C/W |
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
6.6 Electrical Characteristics
over operating free-air temperature range (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| CC OVP SWITCHES | ||||||
| RON_VCONN_1 | On resistance of CC OVP FETs VCONN operation | VM = 8.7 V, CCx = 3 V, ICCx = 0.6 A, –40°C ≤ TJ ≤ 105°C |
0.560 | Ω | ||
| RON_VCONN_2 | On resistance of CC OVP FETs VCONN operation | VM = 8.7 V, CCx = 4.87 V, ICCx = 0.2 A, –40°C ≤ TJ ≤ 105°C | 0.608 | Ω | ||
| RON_FRS | On resistance of CC OVP FETs fast role swap operation | VM = 2.7 V, CCx = 0.49 V, ICCx = 30 mA, –40°C ≤ TJ ≤ 105°C | 1.3 | Ω | ||
| RON_CC_ANA | On resistance of CC OVP FETs CC analog operation | VM = 2.7 V, CCx = 2.45 V, ICCx = 400 µA, –40°C ≤ TJ ≤ 105°C | 18.7 | Ω | ||
| RON_PD | On resistance of CC OVP FETs CC USB-PD operation | VM = 2.7 V, CCx = 1.2 V, ICCx = 250 µA, –20°C ≤ TJ ≤ 105°C | 13 | Ω | ||
| RONFLAT_VCONN_1 | On resistance flatness of CC OVP FETs VCONN operation | VM = 8.7 V, sweep CCx from 0 V to 5.5 V, measure the difference in resistance. ICCx = 0.2 A, –40°C ≤ TJ ≤ 105°C | 0.2 | Ω | ||
| CON_CC | Equivalent on capacitance for CC pins | Capacitance from C_CCx or CCx to GND when device is powered. VC_CCx/VCCx = 0 V to 1.2 V, f = 400 kHz, –40°C ≤ TJ ≤ 105°C | 30 | 120 | pF | |
| VTH_DB | Threshold voltage of the pull-down FET in series with RD during dead battery | I_C_CCx = 80 uA | 0.5 | 0.9 | 1.2 | V |
| RD | Dead battery pull-down resistance (only present when device is unpowered). Effective resistance of RD and FET in series | VPWR = 0 V, VC_CCx = 2.6 V | 4.1 | 5.1 | 6.1 | kΩ |
| VOVPCC_RISE | Rising overvoltage protection threshold on C_CCx pins | Place 5.5 V on C_CCx pins. Step up voltage until the FLT pin is asserted .–20°C ≤ TJ ≤ 105°C | 5.55 | 6.18 | V | |
| VOVPCC_HYS | OVP threshold hysteresis | Place 6.5 V on C_CCx. Step down the voltage on C_CCx until the FLT pin is deasserted. Measure the difference between rising and falling OVP thresholds | 50 | mV | ||
| BWON | On bandwidth single ended (–3dB) | Measure the –3-dB bandwidth from C_CCx to CCx. Single ended measurement, 50-Ω system. Vcm = 0 V to 1.2 V | 80 | MHz | ||
| VSTBUS_CC | Short-to-VBUS tolerance on the C_CCx pins | Hot-Plug C_CCx with a 1 meter USB Type C Cable. Place a 30-Ω load on CCx | 24 | V | ||
| VSTBUS_CC_CLAMP | Short-to-VBUS system-side clamping voltage on the CCx pins | Hot-Plug C_CCx with a 1-meter USB Type C Cable. Hot-plug voltage C_CCx = 2 4V. VPWR = 3.3 V. Place a 30-Ω load on CCx | 8 | V | ||
| POWER SUPPLY AND LEAKAGE CURRENTS | ||||||
| VPWR_UVLO | VPWR undervoltage lockout threshold | Place 1 V on VPWR and raise the voltage until the CC FETs turn ON | 1.9 | 2.3 | 2.55 | V |
| VPWR_UVLO_HYS | VPWR UVLO hysteresis | Place 3 V on VPWR and lower the voltage until the CC FETs turn off. Calculate the difference between the rising and falling UVLO threshold | 50 | 100 | 200 | mV |
| IVPWR_1S | VPWR quiescent current for 1S battery | VPWR = 3.3 V, VM = 3.3 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 3.23 | 7 | µA | |
| IVM_1S | VM quiescent current for 1S battery | VPWR = 3.3 V, VM = 3.3 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 1 | µA | ||
| IVPWR_1S_Max | VPWR quiescent current for 1S battery max | VPWR = 4.5 V, VM = 4.5 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 12 | µA | ||
| IVM_1S_Max | VM quiescent current for 1S battery max | VPWR = 4.5 V, VM = 4.5 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 1 | µA | ||
| IVPWR_3S | VPWR quiescent current for 3S battery | VPWR = 3.6 V, VM = 13.5 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 8 | µA | ||
| IVM_3S | VM quiescent current for 3S battery | VPWR = 3.6 V, VM = 13.5 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 3.5 | µA | ||
| IVPWR_4S | VPWR quiescent current for 4S battery | VPWR = 3.6 V, VM = 18 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 8 | µA | ||
| IVM_4S | VM quiescent current for 4S battery | VPWR = 3.6 V, VM = 18 V, C_CCx = 3.6 V, –40°C ≤ TJ ≤ 105°C | 4.5 | µA | ||
| ICC_LEAK | Leakage current for CC pins when device is powered | VPWR = 3.3 V, VM = 3.3 V, VC_CCx = 3.6 V, CCx pins are floating, measure leakage into C_CCx pins. Result must be same if CCx side is biased and C_CCx is left floating | 5 | µA | ||
| IC_CC_LEAK_OVP | Leakage current for C_CCx pins when device is in OVP | VPWR = VM = 0 V or 3.3 V, VC_CCx = 24 V, CCx = 0 V, measure leakage into C_CCx pins | 1500 | µA | ||
| ICC_LEAK_OVP | Leakage current for CCx pins when device is in OVP | VPWR = VM = 0 V or 3.3 V, VC_CCx = 24 V, CCx = 0 V, measure leakage flowing out of CCx pins | 40 | µA | ||
| FLT PIN | ||||||
| VOL | Low-level output voltage for FLT pin | IOL = 3 mA. Measure the voltage at the FLT pin | 0.4 | V | ||
6.7 Timing Requirements
| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| POWER-ON AND POWER-OFF TIMINGS | |||||
| tON | Time from crossing rising VPWR UVLO until CC OVP FETs are on. VPWR slew rate = 0.347 V/µs | 200 | µs | ||
| dVPWR_OFF/dt | Minimum slew rate allowed to guarantee CC FETs turn off during a power off | –0.5 | V/µs | ||
| OVERVOLTAGE PROTECTION | |||||
| tOVP_RESPONSE_CC | OVP response time on the CC pins. Time from OVP asserted until OVP FETs turn off. Hot-Plug C_CCx to 24 V with a 1-m cable. C_CCx slew rate = 4 V/ns. Place a 30-Ω on CCx | 145 | ns | ||
| tOVP_RECOVERY_CC | OVP recovery time on the CC pins. Time from OVP removal until FET turns back on.VM = 10.8 V. Step C_CCx down from 6.3 V to 3.3 V at a 0.343-V/µs slew rate | 30 | µs | ||
| tOVP_RECOVERY_CC | OVP recovery time on the CC pins. Time from OVP removal until FET turns back on.VM = 3.3 V. Step C_CCx down from 6.3 V to 0.49 V at a 0.321-V/µs slew rate | 200 | µs | ||
| tOVP_FLT_ASSERTION | Time from OVP asserted to FLT assertion.FLT assertion is when the FLT pin reaches 10% of its starting value. C_CCx from 0 V to 6.3 V at a 0.645-V/µs slew rate | 1 | µs | ||
| tOVP_FLT_DEASSERTION | Time from OVP removal to FLT deassertion. FLT deassertion is when the FLT pin reaches 90% of its final value. C_CCx from 6.3 V to 0 V at a 0.696-V/µs slew rate | 20 | µs | ||

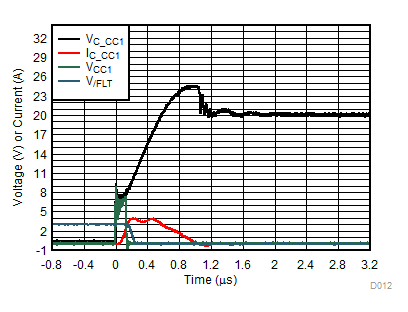

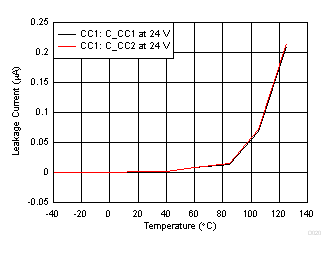

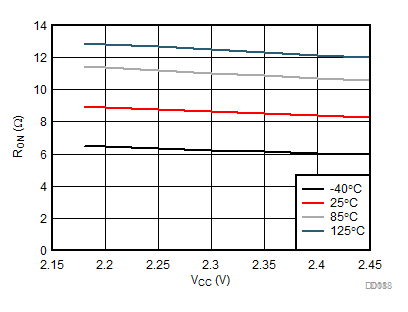

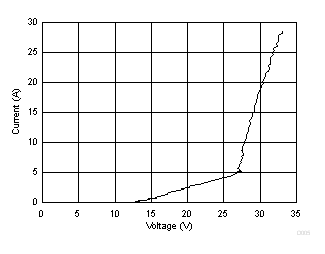

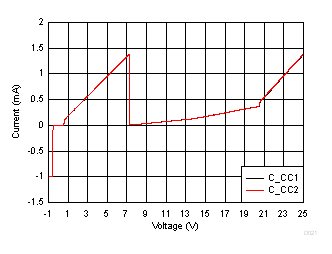

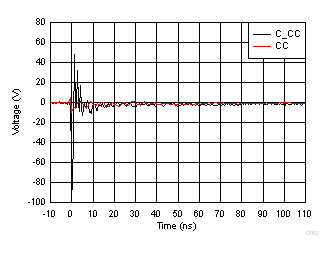

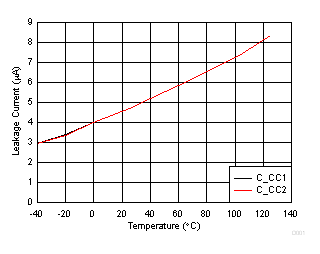

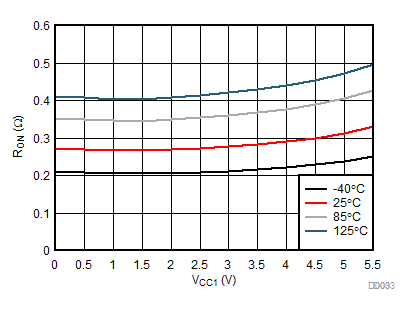

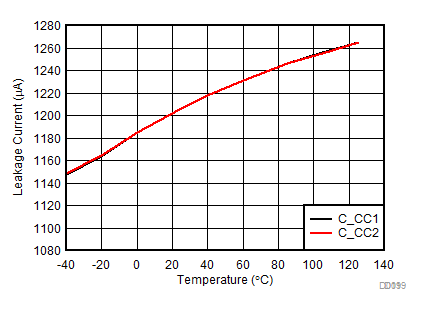

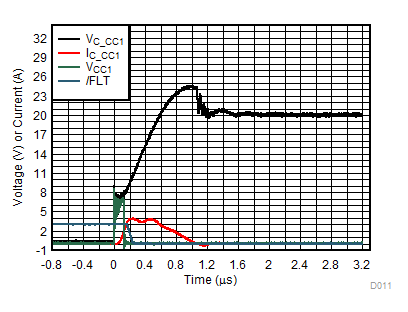

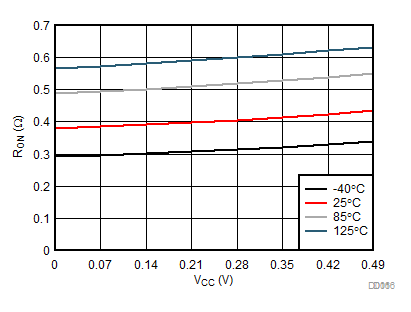

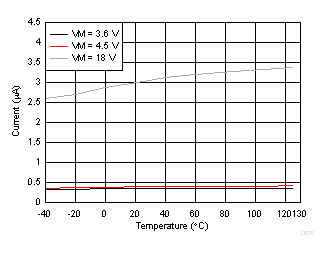

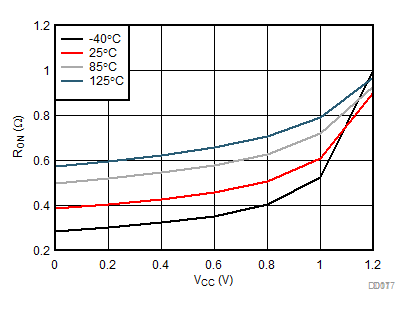

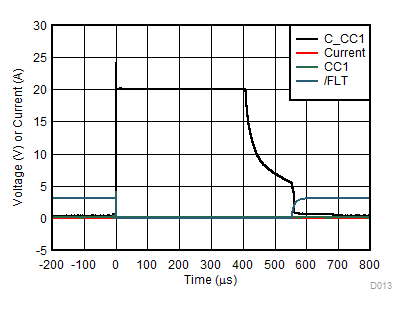

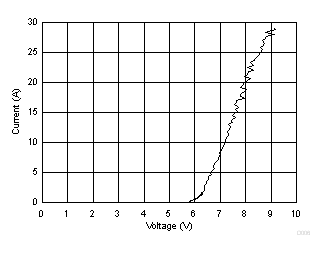

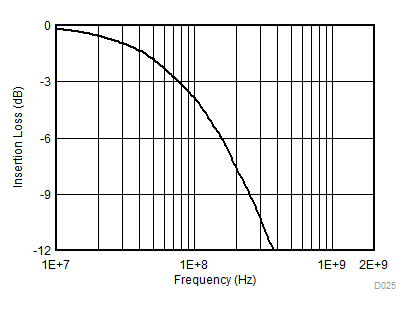

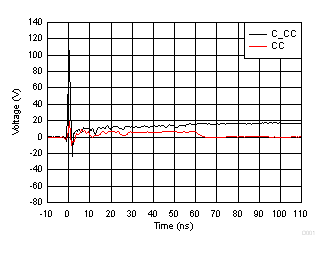

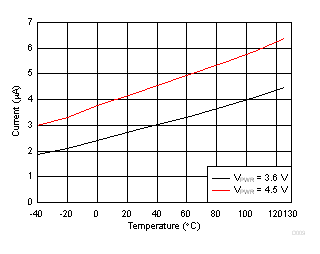

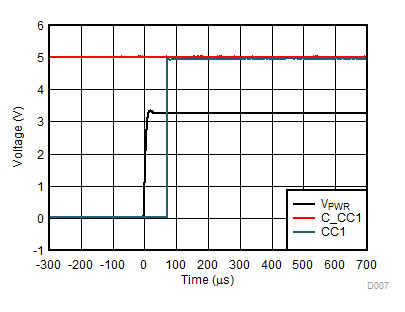

6.8 Typical Characteristics
